Product details

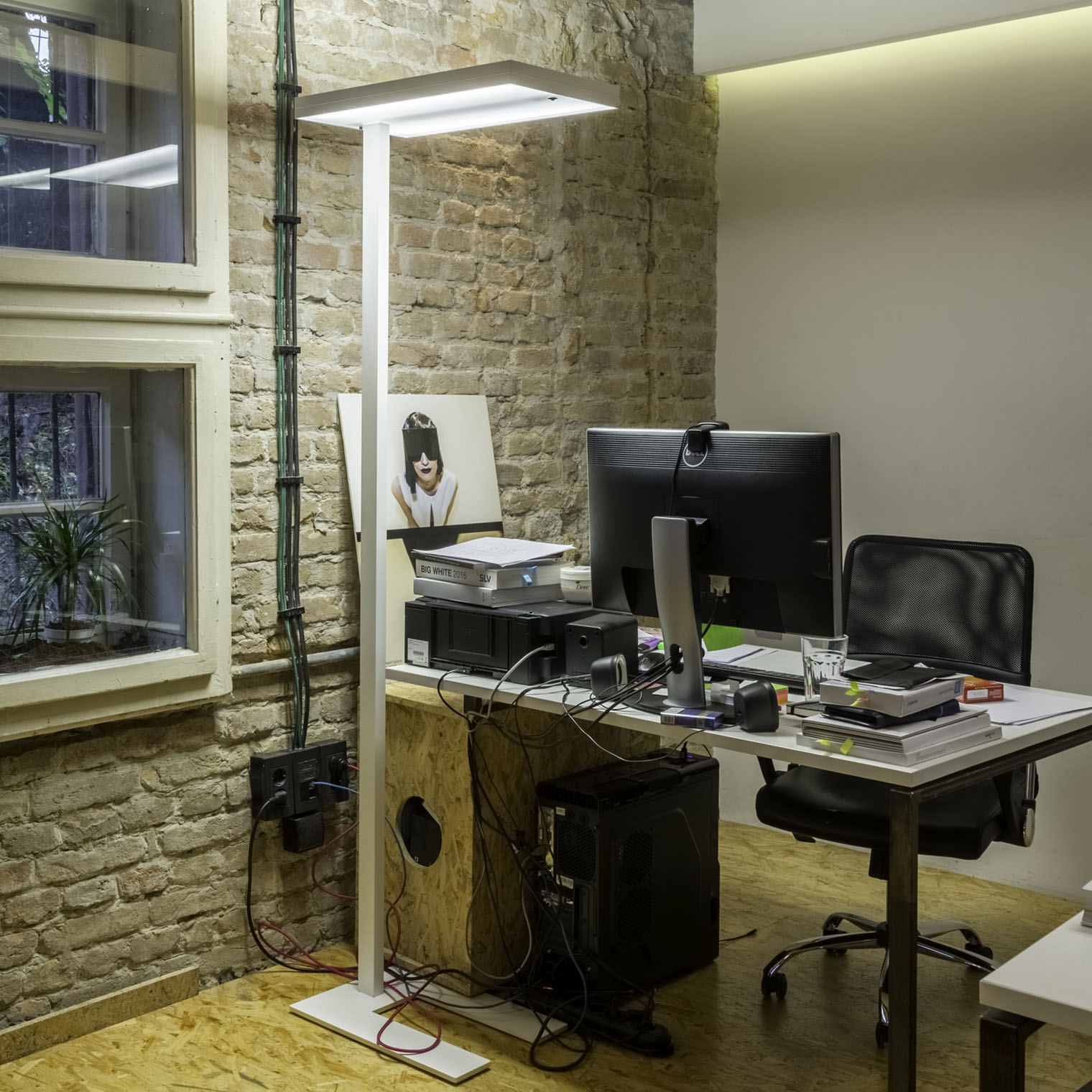

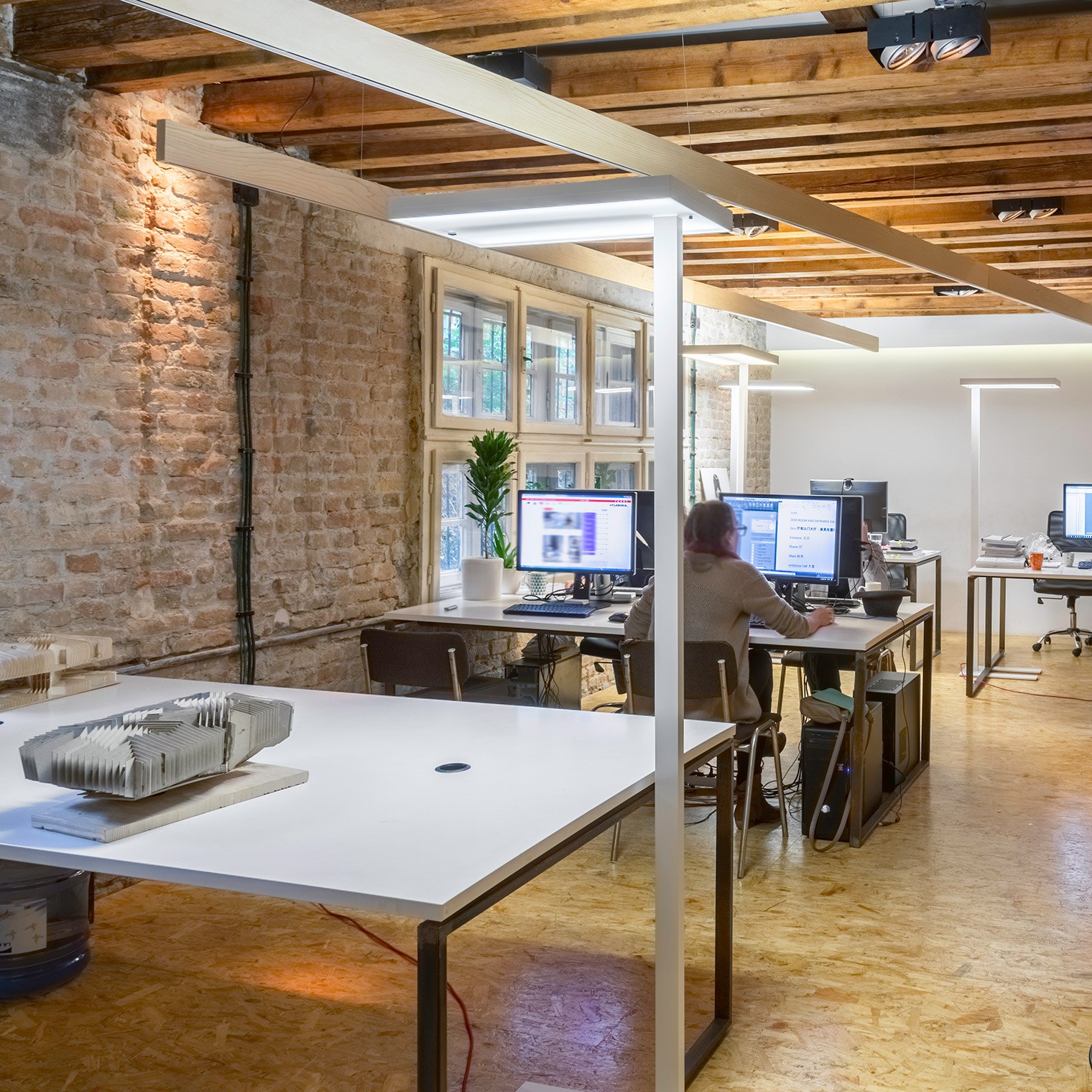

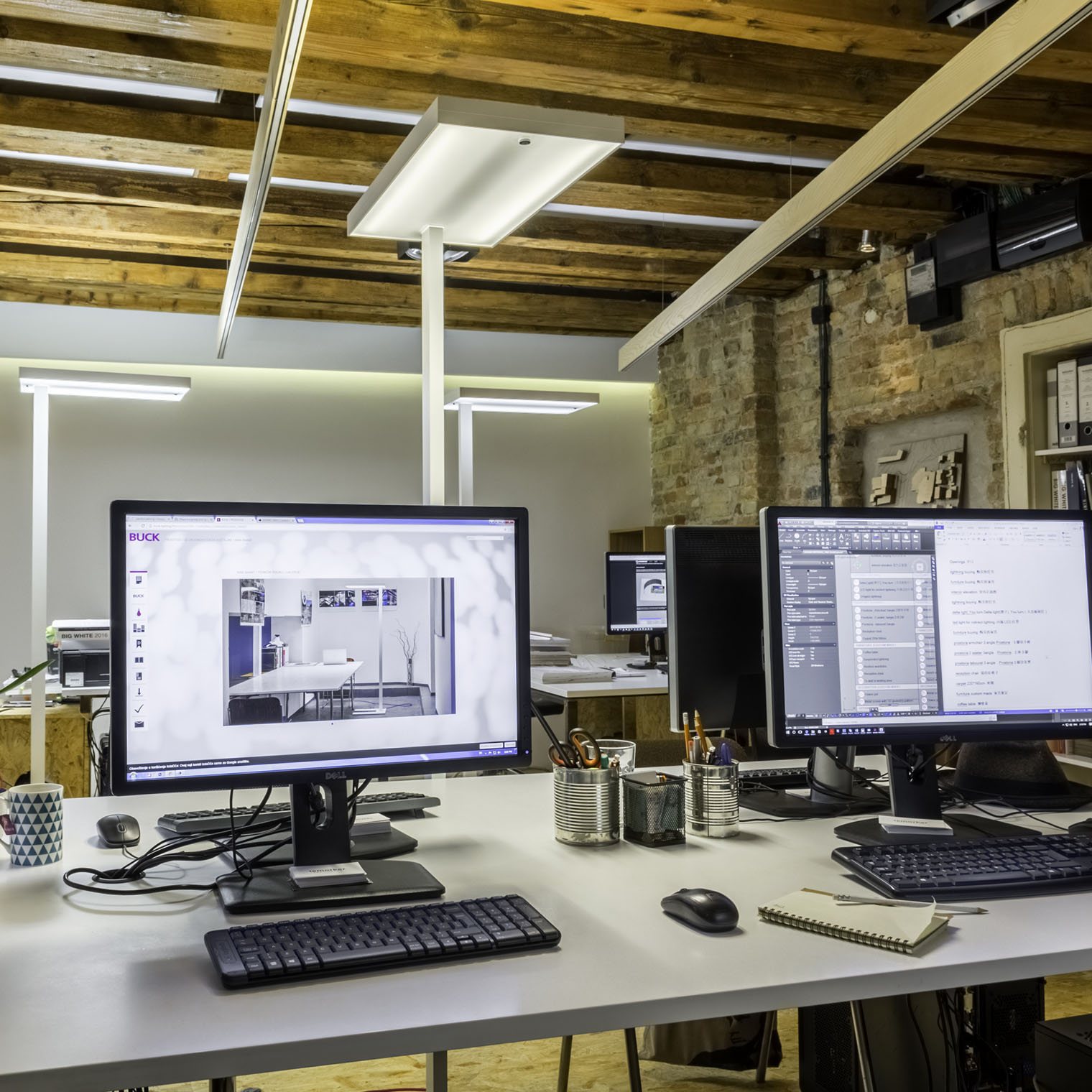

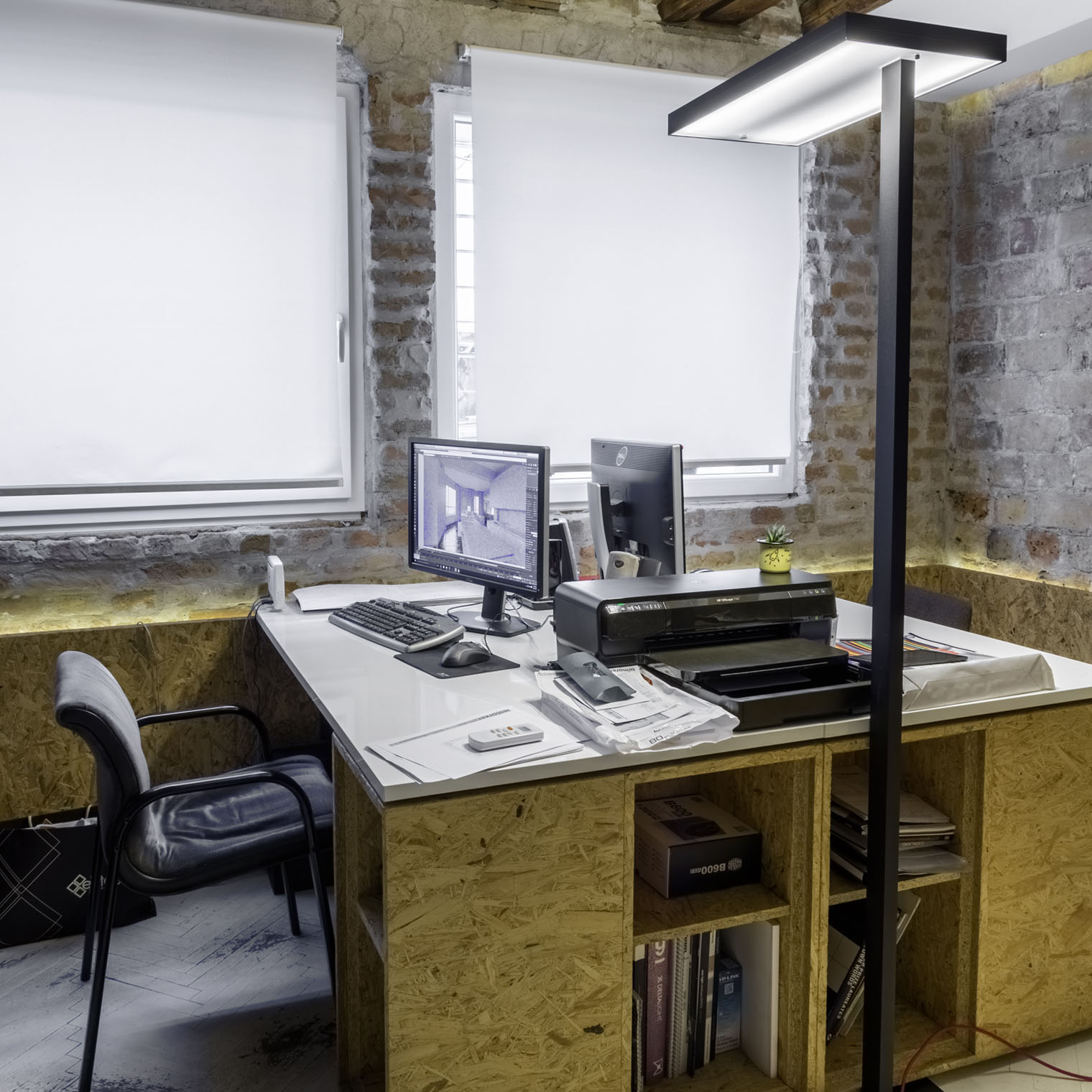

GENERAL Free-standing luminaire for direct and indirect illumination of workspaces. The indirect component provides general illumination, while the direct one provides local illumination in the working zone. Visual comfort ensured with the latest optical and electrical components.

OPTICS For the direct light component: highly transparent microprismatic diffuser with opal foil enabling glare limitation and a uniform diffusing light. Optics for indirect light component: transparent diffuser.

HOUSING Luminaire of extruded aluminium. Finish: epoxy polyester powder coating. Fine structured texture.

EQUIPMENT Equipped with multisensor: presence and daylight detection sensor and Touch Dim/DALI gear. Supplied with the non-standard, 6 m long cable with plug.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Floor direct lighting
White finestructured paint
Gray finestructured paint
Black finestructured paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
5132115XY ARIA SMART 600 615/500/325/335/44/1950 16.00 11731 IP20 <16 80.0 4000 >80 70000h L80B10 /SDCM 3
5132125XY ARIA SMART 600 16/84 615/500/325/335/44/1950 16.00 13055 IP20 <9 86.0 4000 >80 70000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
