Product details

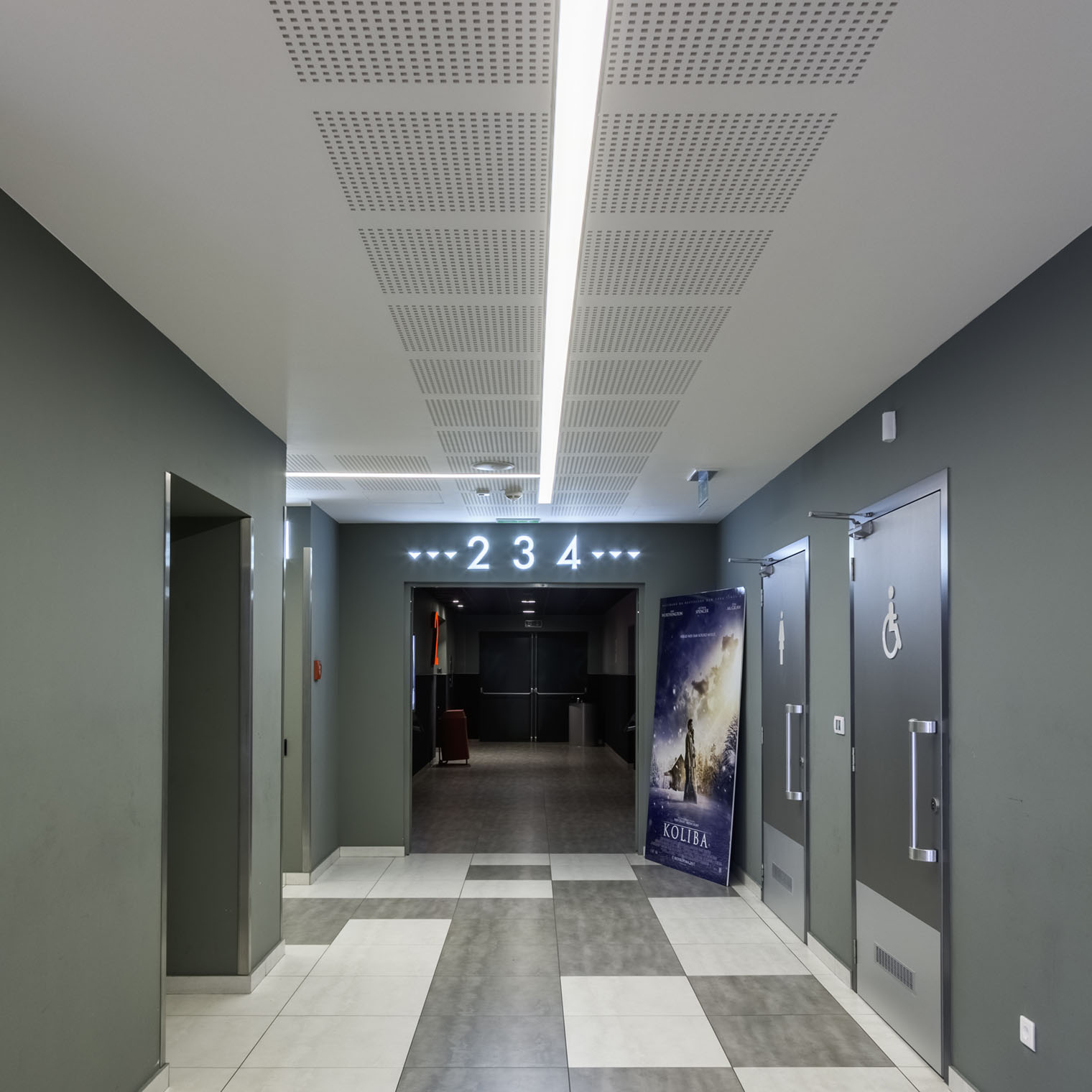

GENERAL High efficiency recessed trimless linear luminaire for direct high quality illumination of office spaces.

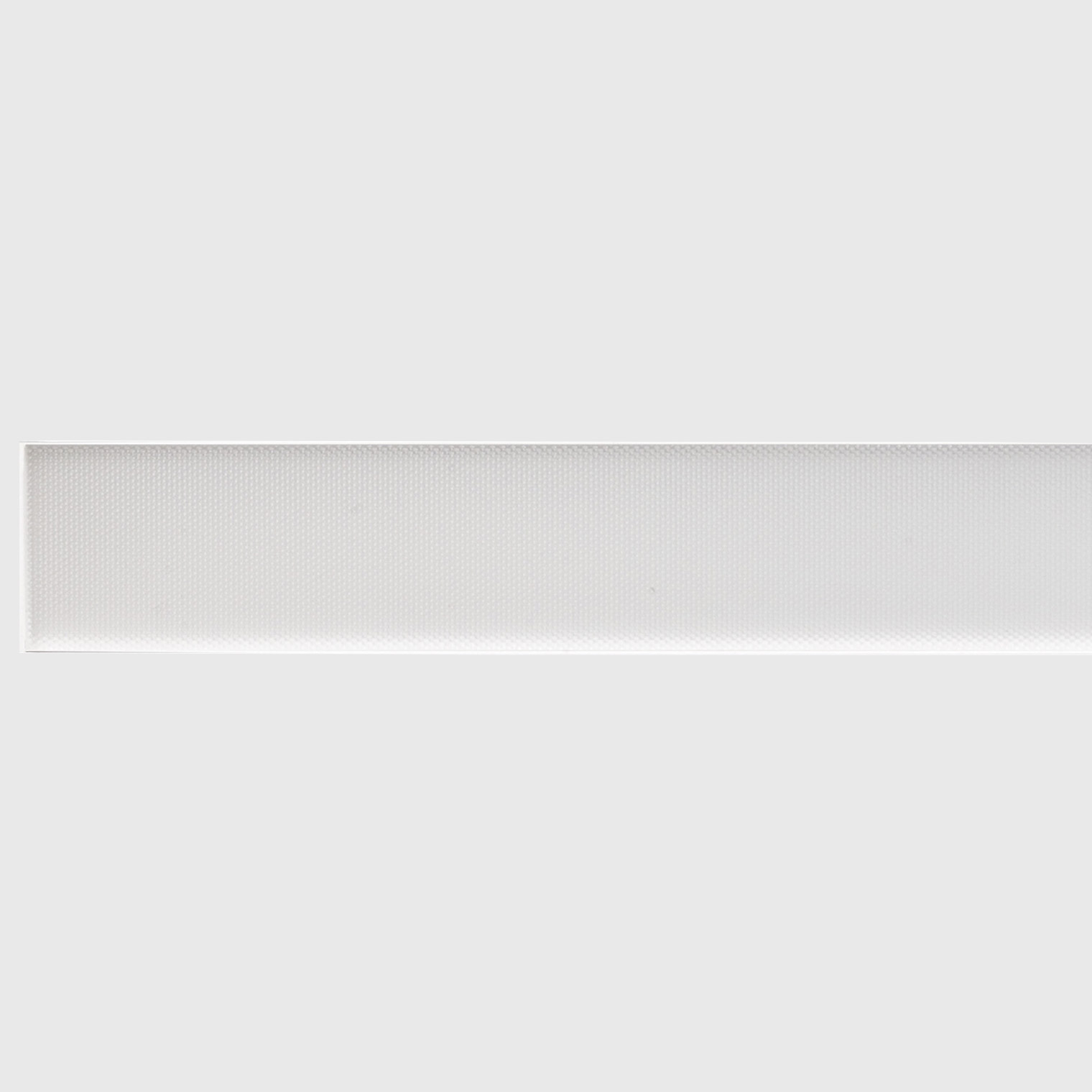

OPTICS Highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. The opal foil provides a uniformly illuminated surface, without visible light sources. Transparent extruded PMMA protector provides a smooth surface for easy maintenance.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING Housing made of extruded aluminium, without visible frame. Finish: anodisation in natural aluminium colour or polyester powder coating. Fine structured texture. Other colours are available upon request.
APPLICATION Applicable to monolith suspended ceilings.
FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain light uniformity and aesthetic consistency of the interior.
ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1270112XY | INSERT S TLS CDP 600 /840 HE | 566/60/110 | 566/60/170 | 2.30 | 612 | IP40 | <19 | 6.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270116XY | INSERT S TLS CDP 600 /840 HO | 566/60/110 | 566/60/170 | 2.30 | 1170 | IP40 | <22 | 13.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270122XY | INSERT S TLS CDP 900 /840 HE | 846/60/110 | 846/60/170 | 3.00 | 918 | IP40 | <19 | 9.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270126XY | INSERT S TLS CDP 900 /840 HO | 846/60/110 | 846/60/170 | 3.00 | 1755 | IP40 | <22 | 19.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270132XY | INSERT S TLS CDP 1200 /840 HE | 1126/60/110 | 1126/60/170 | 3.90 | 1224 | IP40 | <19 | 12.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270136XY | INSERT S TLS CDP 1200 /840 HO | 1126/60/110 | 1126/60/170 | 3.90 | 2340 | IP40 | <22 | 25.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 1270142XY | INSERT S TLS CDP 1500 /840 HE | 1406/60/110 | 1406/60/170 | 4.80 | 1530 | IP40 | <19 | 15.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270146XY | INSERT S TLS CDP 1500 /840 HO | 1406/60/110 | 1406/60/170 | 4.80 | 2925 | IP40 | <22 | 31.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270152XY | INSERT S TLS CDP 2400 /840 HE | 2248/60/110 | 2248/60/170 | 7.60 | 2448 | IP40 | <19 | 24.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 1270156XY | INSERT S TLS CDP 2400 /840 HO | 2248/60/110 | 2248/60/170 | 7.60 | 4680 | IP40 | <22 | 50.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
