MICRO WW

Product details

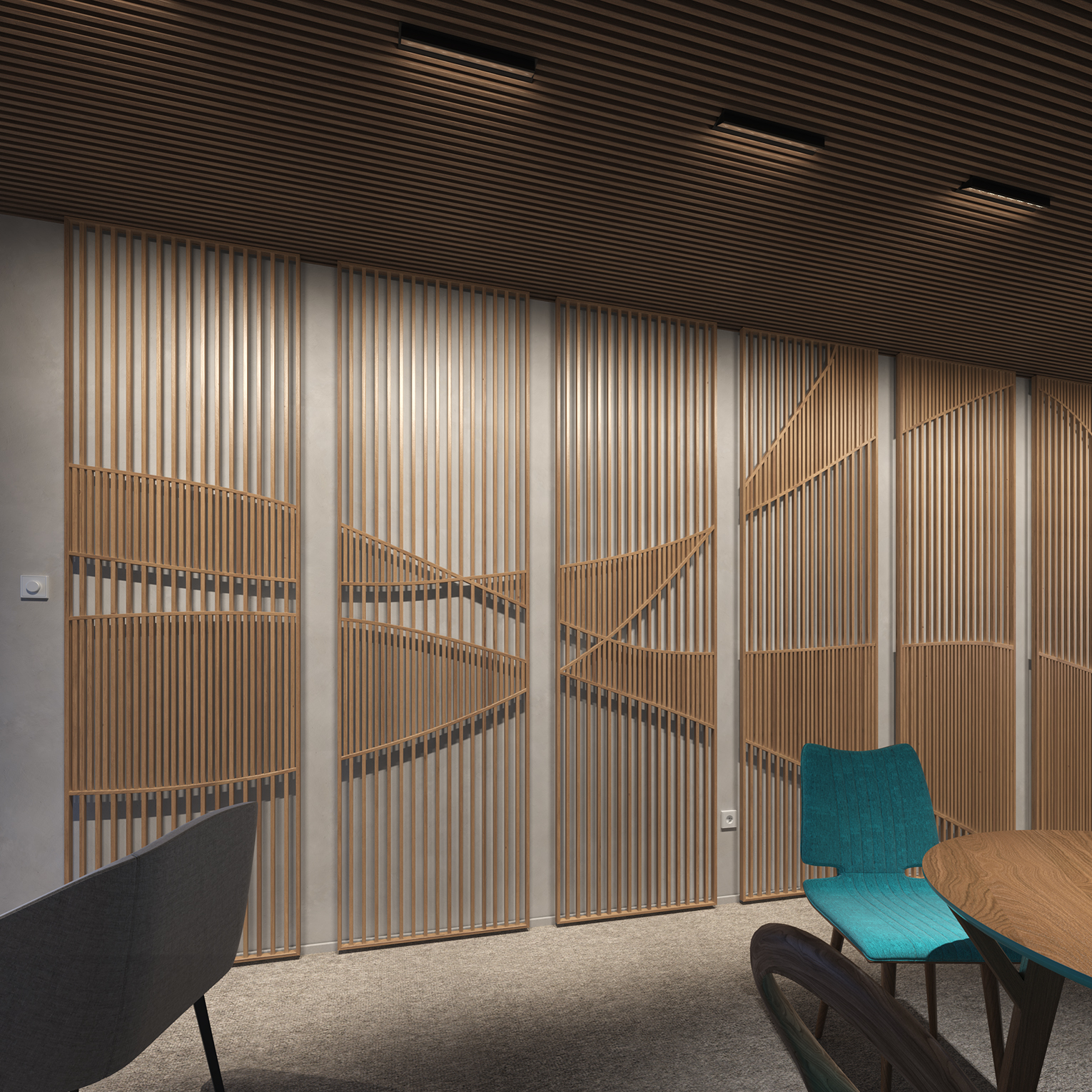

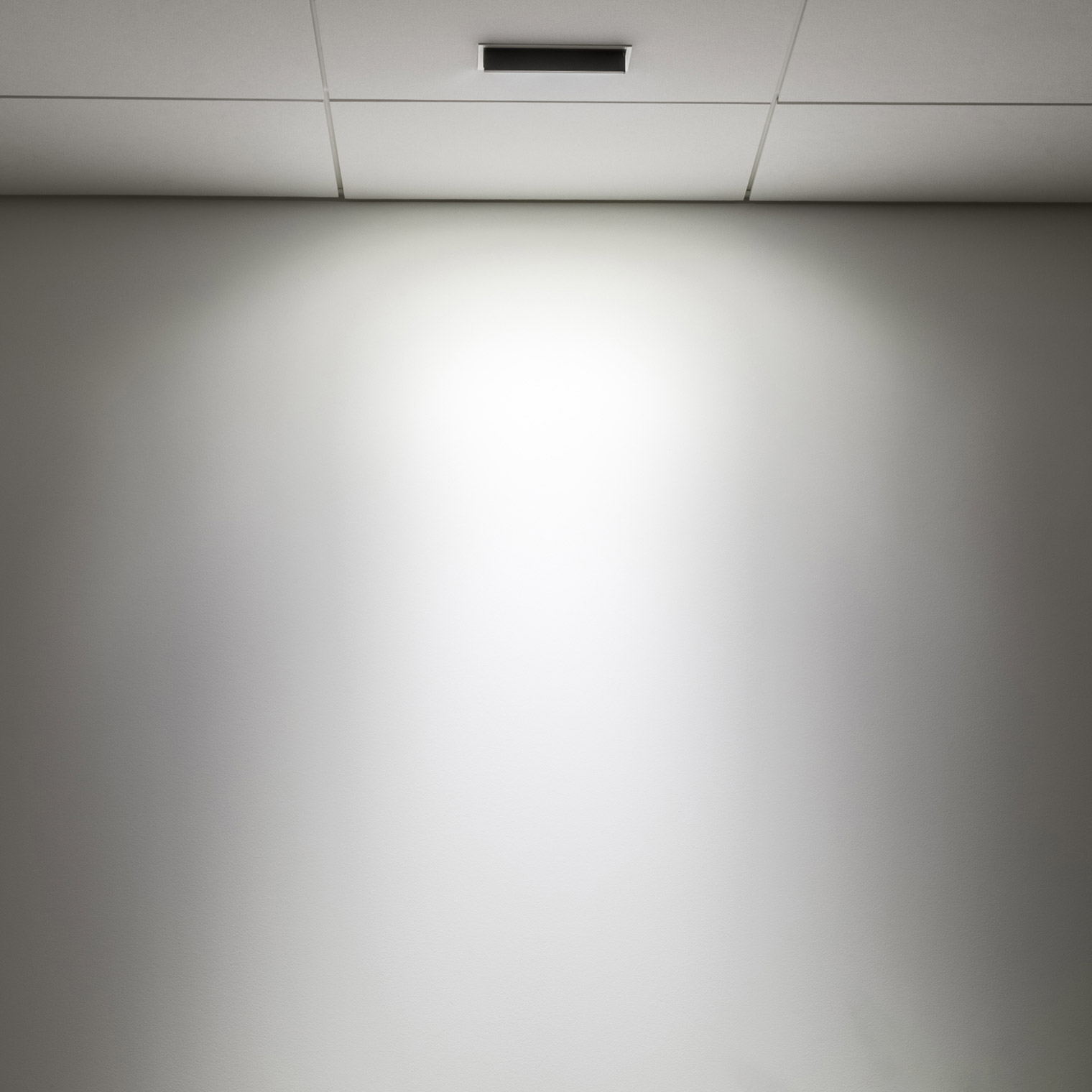

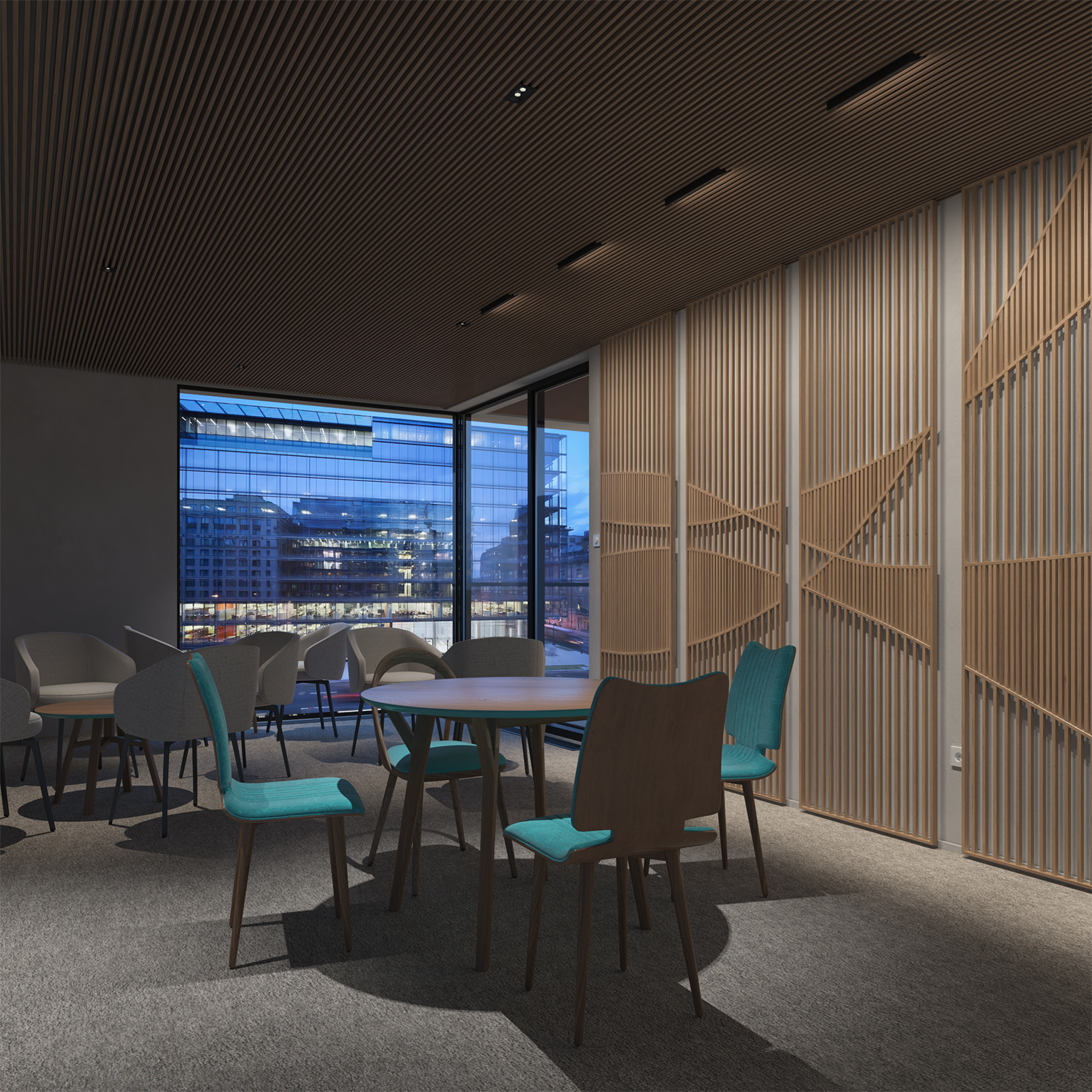

GENERAL Wall washer with unique vertical light distribution allows uniform illumination of wall from its top to the bottom.

OPTICS Wall washing component is based on reflectors with complex- surface micro- facet technology. The reflectors ensure high uniformity in lighting distribution on vertical plane.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing is made of aluminium, with visible frame. Finish: epoxy polyester powder coating. Fine structured texture. Standard trim colours: white, gray, black. Other colours available upon request.

APPLICATION Applicable to all types of suspended ceilings that can be cut through.

FEATURE Ideal longitudinal anti-glare. No light pollution, full cut off.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Wall washer recessed
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
SELV
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
1517111XY MICRO WW 4 /840 HE 194/70/126 188/62/140 0.80 925 IP20 9.0 4000 >80 50000h L80B10 /SCDM3
1517112XY MICRO WW 8 /840 HE 354/70/126 348/62/140 1.30 1850 IP20 17.0 4000 >80 50000h L80B10 /SCDM3
1517113XY MICRO WW 12 /840 HE 514/70/126 508/62/140 1.80 2774 IP20 26.0 4000 >80 50000h L80B10 /SCDM3
1517114XY MICRO WW 4 /840 HO 194/70/126 188/62/140 0.80 1496 IP20 15.0 4000 >80 50000h L80B10 /SCDM3
1517115XY MICRO WW 8 /840 HO 354/70/126 348/62/140 1.30 2992 IP20 30.0 4000 >80 50000h L80B10 /SCDM3
1517116XY MICRO WW 12 /840 HO 514/70/126 508/62/140 1.80 4488 IP20 45.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
