VESPA IP54

Product details

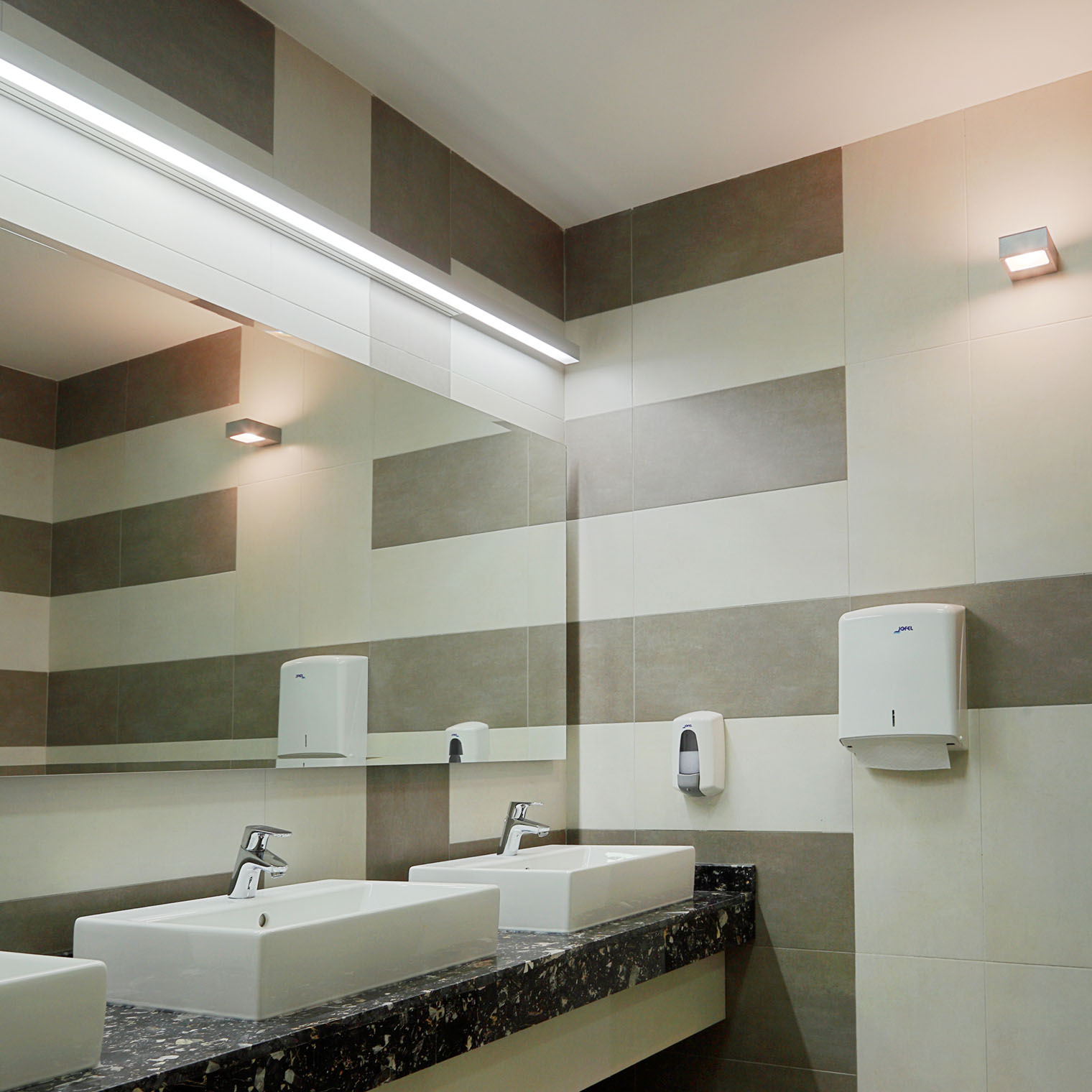

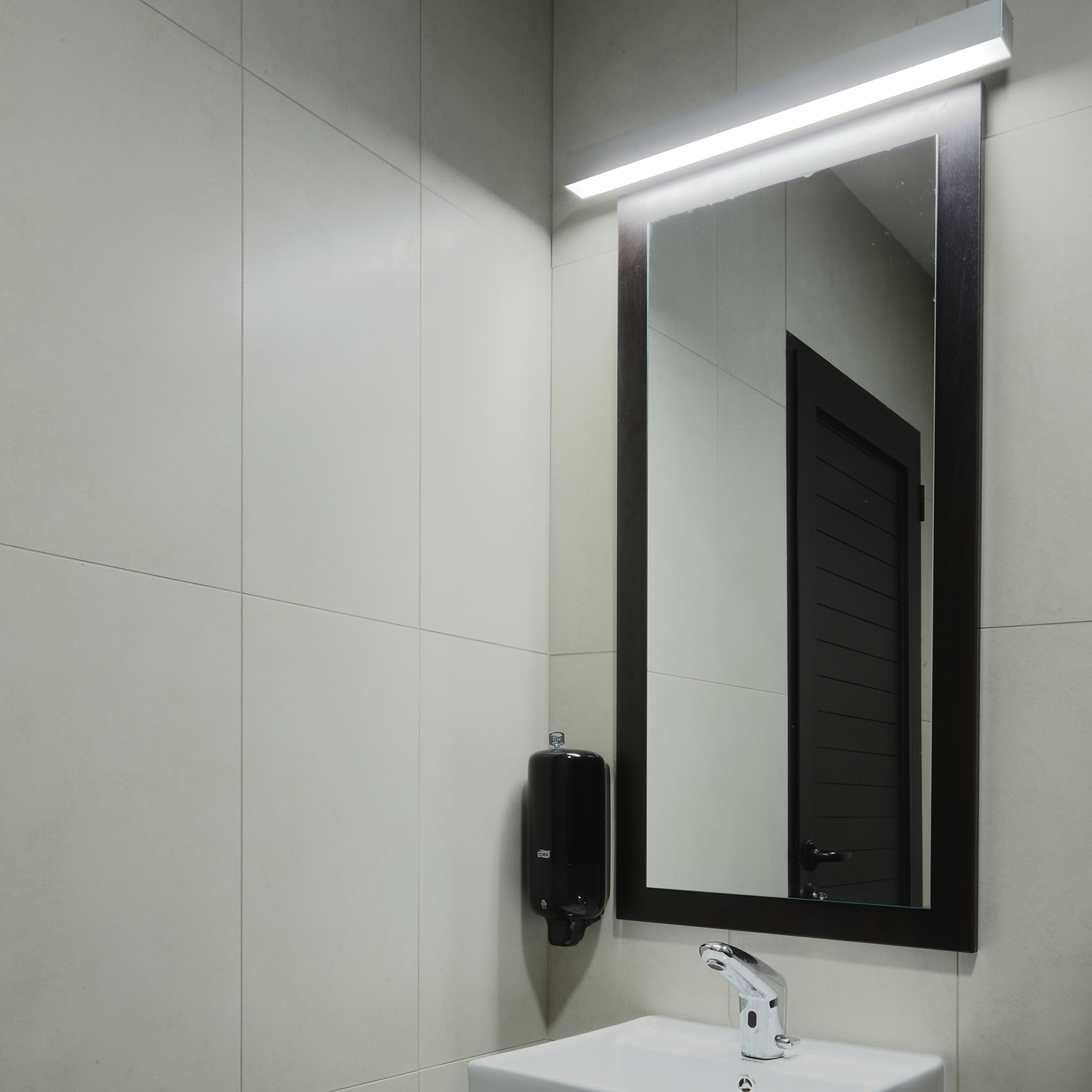

GENERAL Wall mounted luminaire for direct localised illumination, appropriate for installation in humid spaces.

HOUSING/ OPTICS Luminaire of extruded aluminium with opal diffuser. Finish: anodisation in natural aluminium colour or with epoxy polyester powder. Fine structured texture.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Wall mounted direct lighting var 2
White finestructured paint
Gray finestructured paint
Anodised aluminium
CE
Zapaljivost F
CLASS 1
IP54
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
4815121XY VESPA IP54 600 /840 584/92/45 1.20 1173 IP54 14.0 4000 >80 60000h L80B10 /SDCM 3
4815221XY VESPA IP54 900 /840 864/92/45 2.30 1759 IP54 20.0 4000 >80 60000h L80B10 /SDCM 3
4815321XY VESPA IP54 1200 /840 1144/92/45 2.70 2346 IP54 27.0 4000 >80 60000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
