AIRO M

Product details

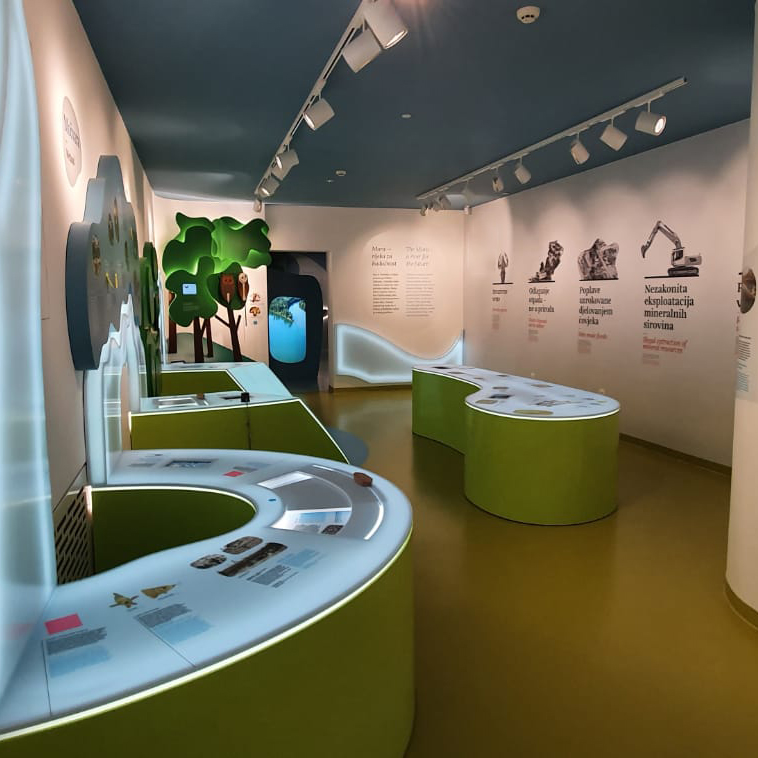

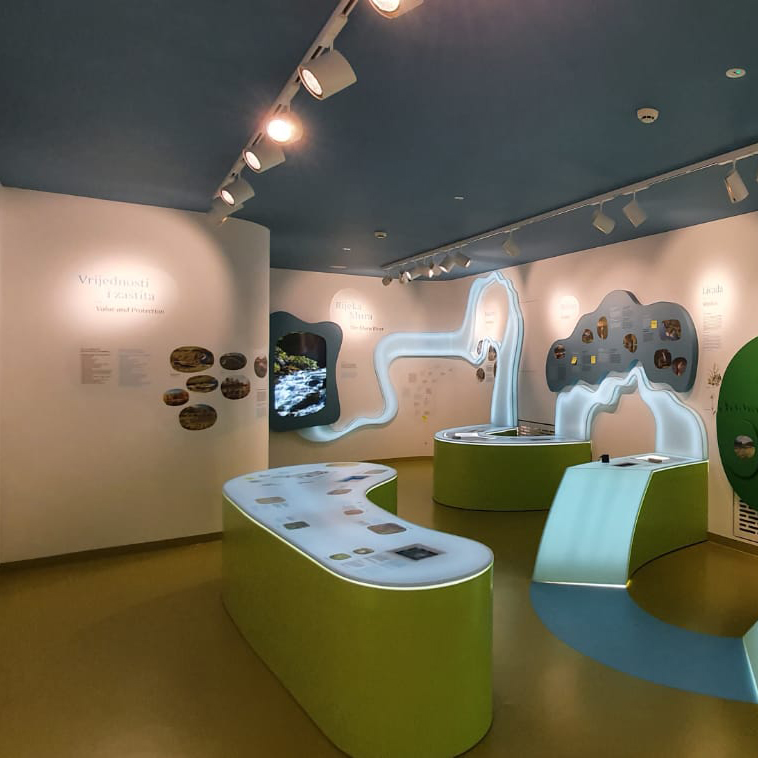

GENERAL Track spotlight with passive cooling, intended for illumination of museums, galleries and other spaces with highest lighting requirements.

OPTICS Precise positioning of light beam is enabled by rotation upon two axes. Easily replaceable optics, with a vast choice of light intensity, colour reproduction and temperatures of white light, as well as wideness of light beam, enable precise definition of lighting scenarios, with maximal adaptability to the type of the interior and projects illuminated.

LIGHTING MANAGEMENT Lighting management enabled through DALI gear.

HOUSING Compact unibody made of die-cast aluminium. The surface of this luminaire is conceived as a large cooler and enables cooling without fans, providing uniform heat dissipation. Finish of luminaire is epoxy polyester powder coating. Fine structured texture.

FEATURES Replacement of LED modules and optics is tool free.

ADDITIONAL Other light colour temperatures upon request.

Technical data

Vertical and horizontal plane
Track direct lighting
White finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
3715141XY AIRO M2000 20dg /840 125/106/160 1.00 2051 20° IP20 16.0 4000 >80 50000h L80B10 /SDCM2
3715151XY AIRO M2000 30dg /840 125/106/160 1.00 2000 30° IP20 16.0 4000 >80 50000h L80B10 /SDCM2
3715161XY AIRO M2000 45dg /840 125/106/160 1.00 1936 45° IP20 16.0 4000 >80 50000h L80B10 /SDCM2
3715171XY AIRO M3000 20dg /840 125/106/160 1.00 3076 20° IP20 24.0 4000 >80 50000h L80B10 /SDCM 3
3715181XY AIRO M3000 30dg /840 125/106/160 1.00 3000 30° IP20 24.0 4000 >80 50000h L80B10 /SDCM 3
3715191XY AIRO M3000 45dg /840 125/106/160 1.00 2903 45° IP20 24.0 4000 >80 50000h L80B10 /SDCM 3
3715211XY AIRO M4000 20dg /840 125/106/160 1.00 4102 20° IP20 33.0 4000 >80 50000h L80B10 /SDCM3
3715221XY AIRO M4000 30dg /840 125/106/160 1.00 4000 30° IP20 33.0 4000 >80 50000h L80B10 /SDCM3
3715231XY AIRO M4000 45dg /840 125/106/160 1.00 3872 45° IP20 33.0 4000 >80 50000h L80B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
