Product details

GENERAL High efficiency recessed luminaire for direct high-quality illumination of office spaces. Full visual comfort ensured with the latest optical and electrical components.

OPTICS Double parabolic matt ‘dark light’ aluminium louver, purity 99,9%. Anodised highly diffusing silver plated aluminium, shaped in such a way as to provide efficient illumination with low glare limitation, according to EN 12464.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING This luminaire is made of a 0.6mm thick steel sheet, with a special reflective white epoxy polyester powder coating.

FEATURES Versions with high efficiency (HE) and high output (HO) available, with UGR<16 for dimensions 595×595 mm and UGR<19 for dimensions 1195×395 mm.

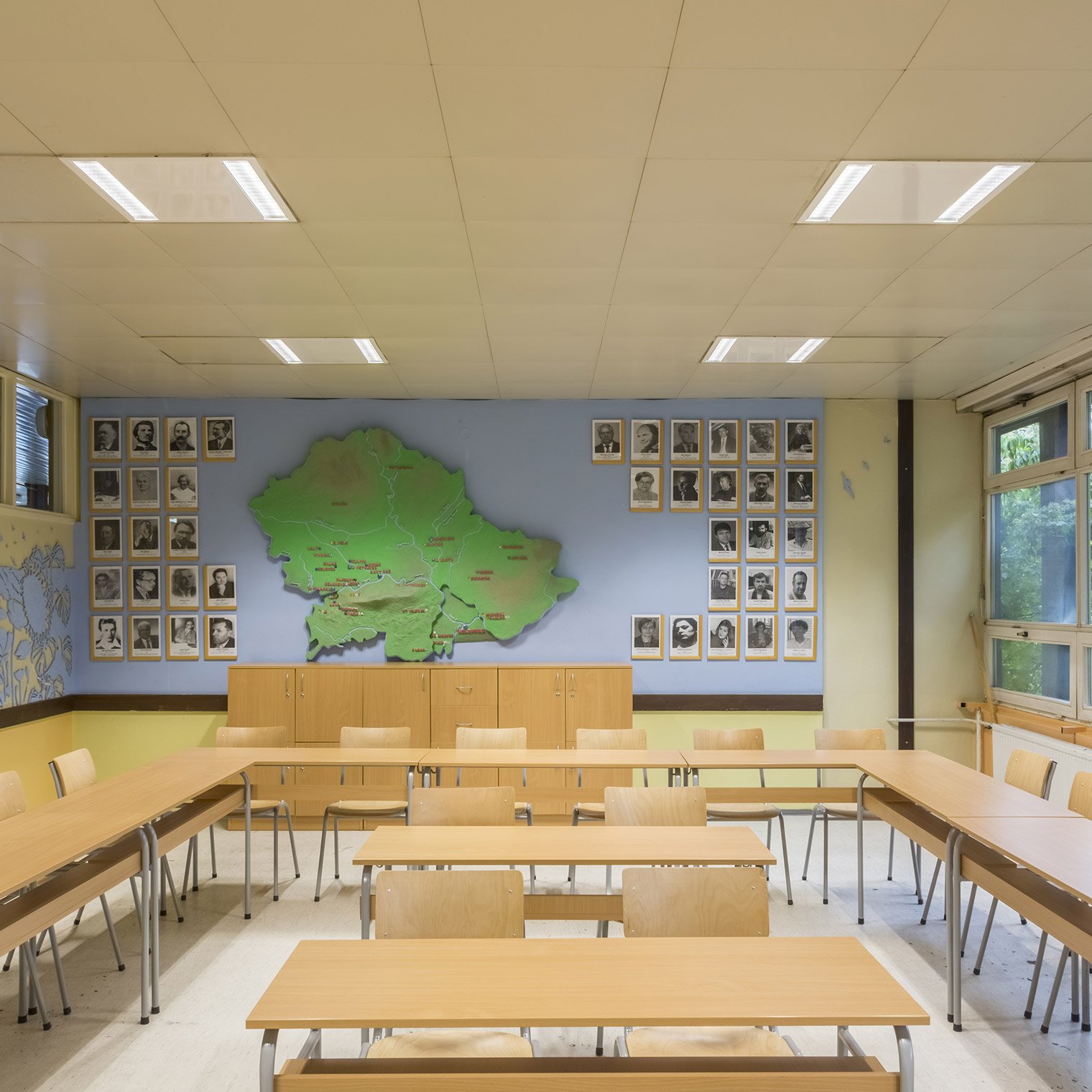

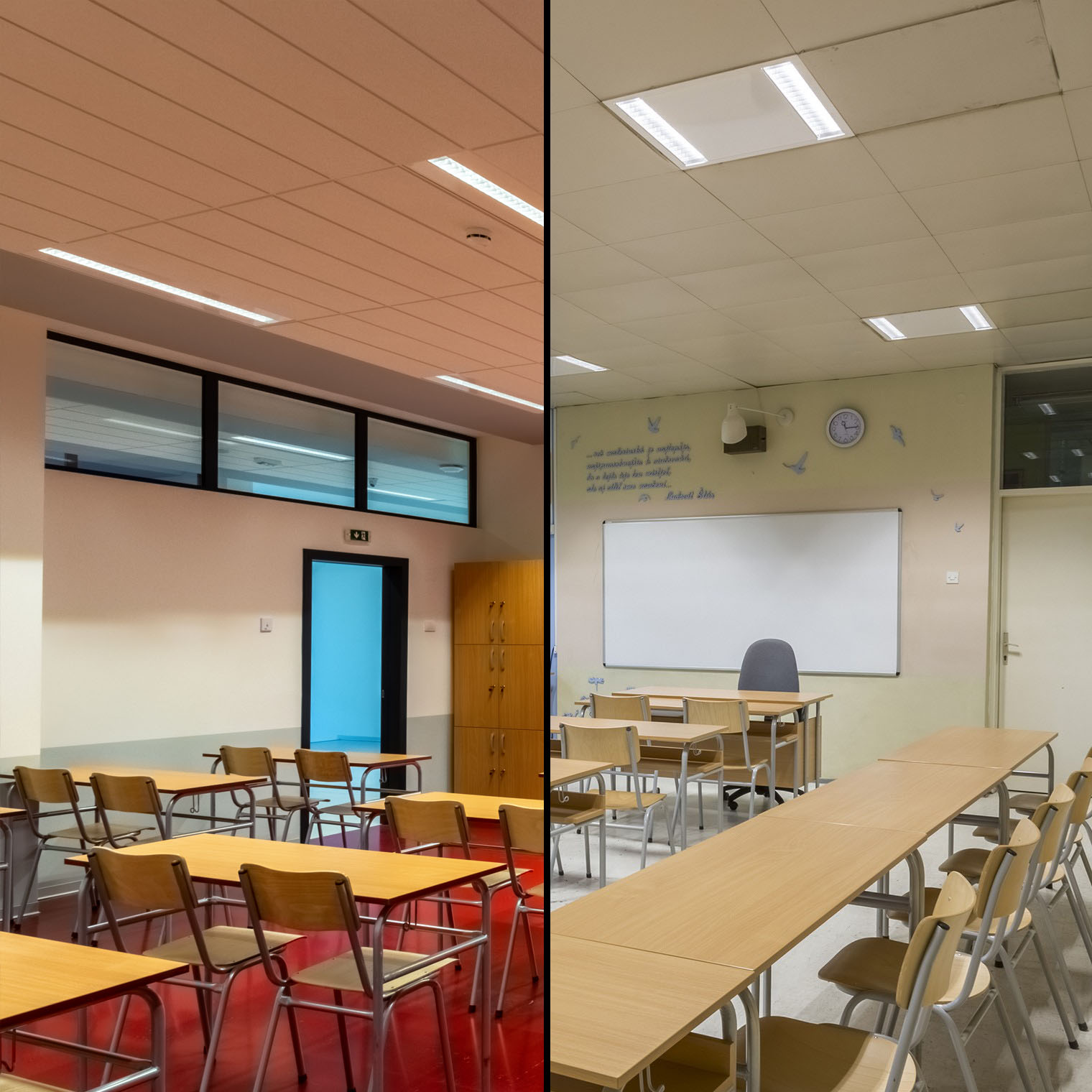

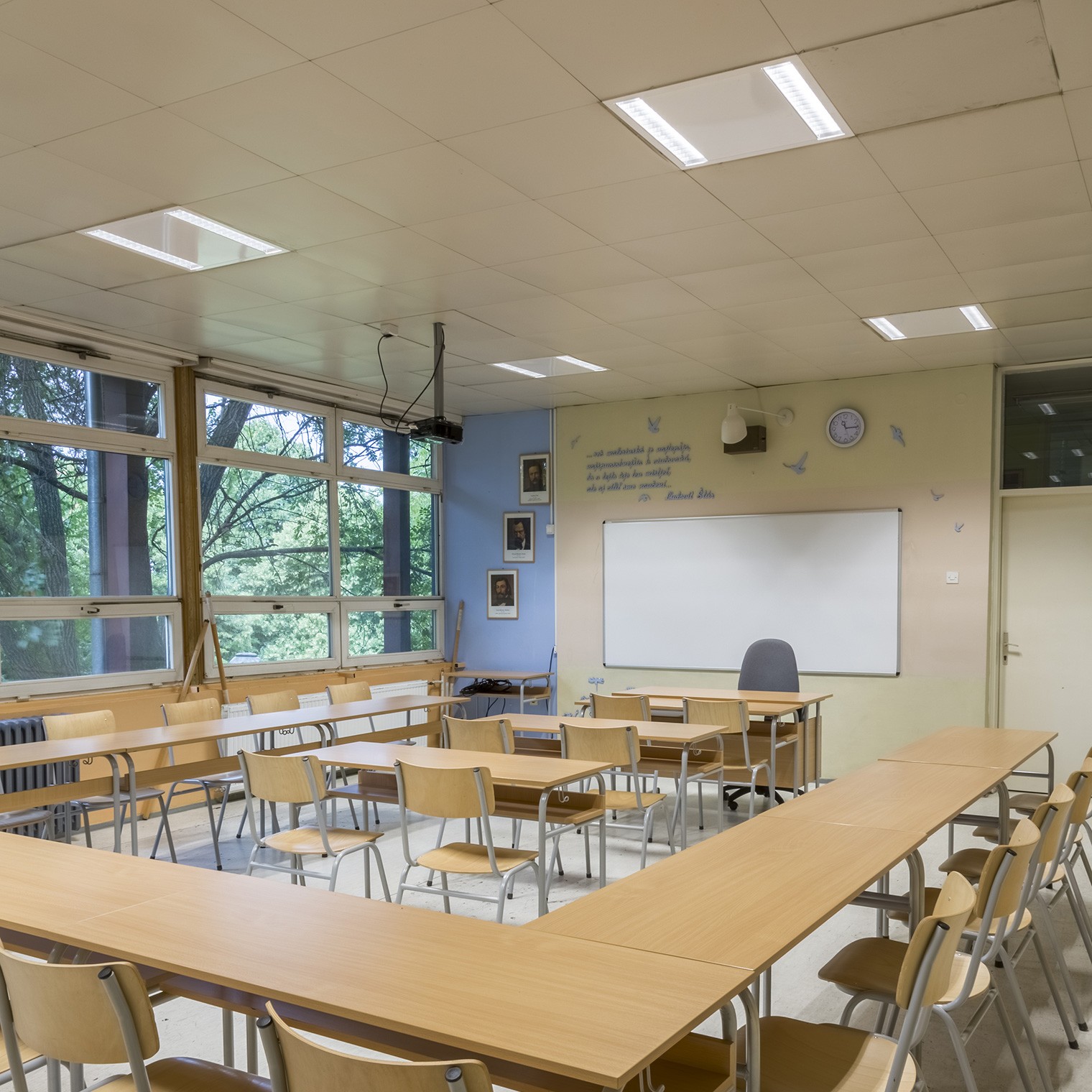

APPLICATION Applicable in modular suspended ceilings M600 with invisible hangers.

EQUIPMENT Supplied with optics protective foil and through wiring connector for quick installation.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Recessed ceiling
White highly reflective paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1012121XY ARCO DLM 2 600 /840 HO 595/595/60 580/580/80 5.50 4979 IP20 <16 36.0 4000 >80 60000h L80B10 /SDCM3
1012122XY ARCO DLM 2 600 /840 HE 595/595/60 580/580/80 5.50 3480 IP20 <16 24.0 4000 >80 60000h L80B10 /SDCM3
1012141XY ARCO DLM 2 1200 /840 HO 1195/295/60 1180/280/80 5.50 4979 IP20 <19 36.0 4000 >80 60000h L80B10 /SDCM3
1012142XY ARCO DLM 2 1200 /840 HE 1195/295/60 1180/280/80 5.50 3480 IP20 <19 24.0 4000 >80 60000h L80B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
