SLIM LINE
Product details

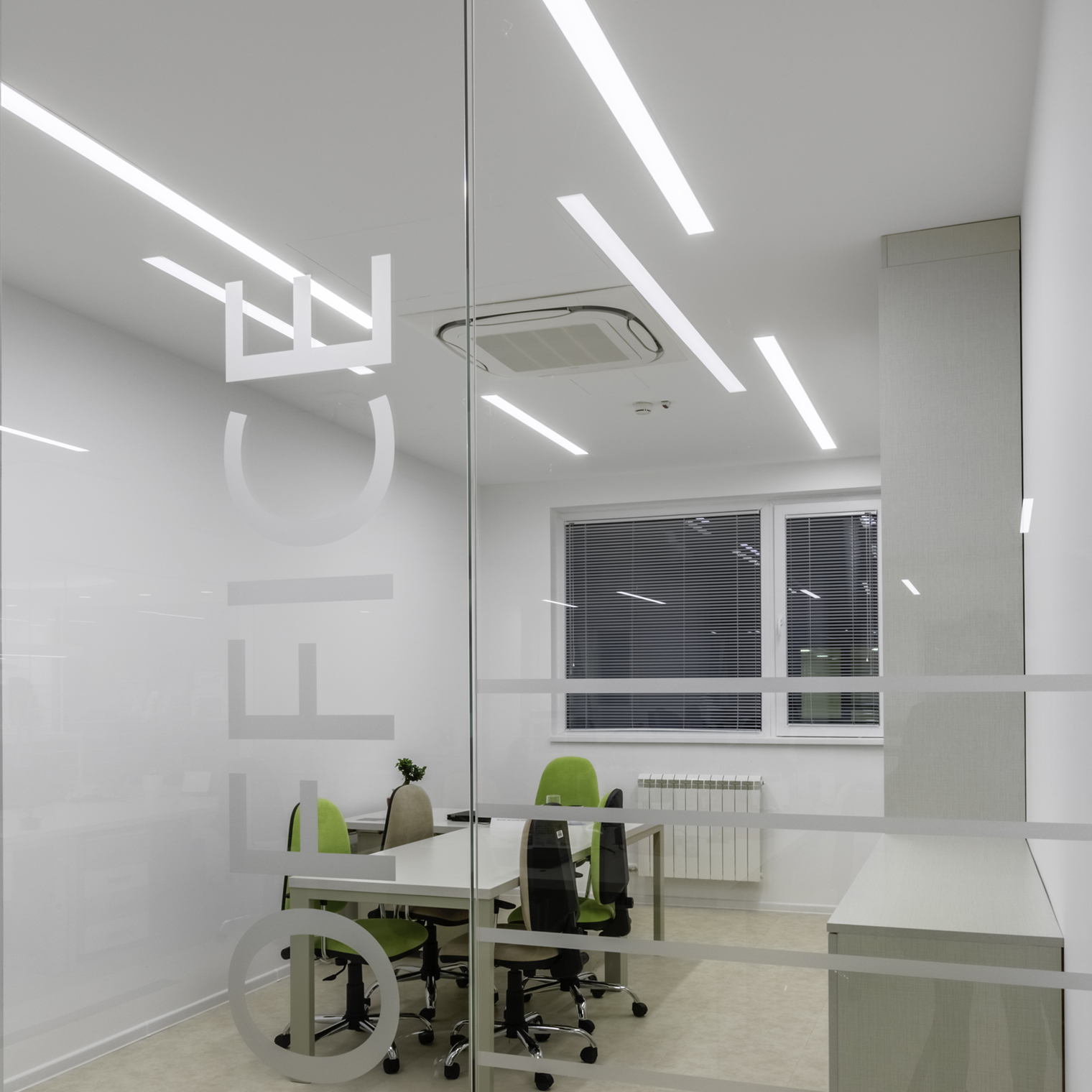

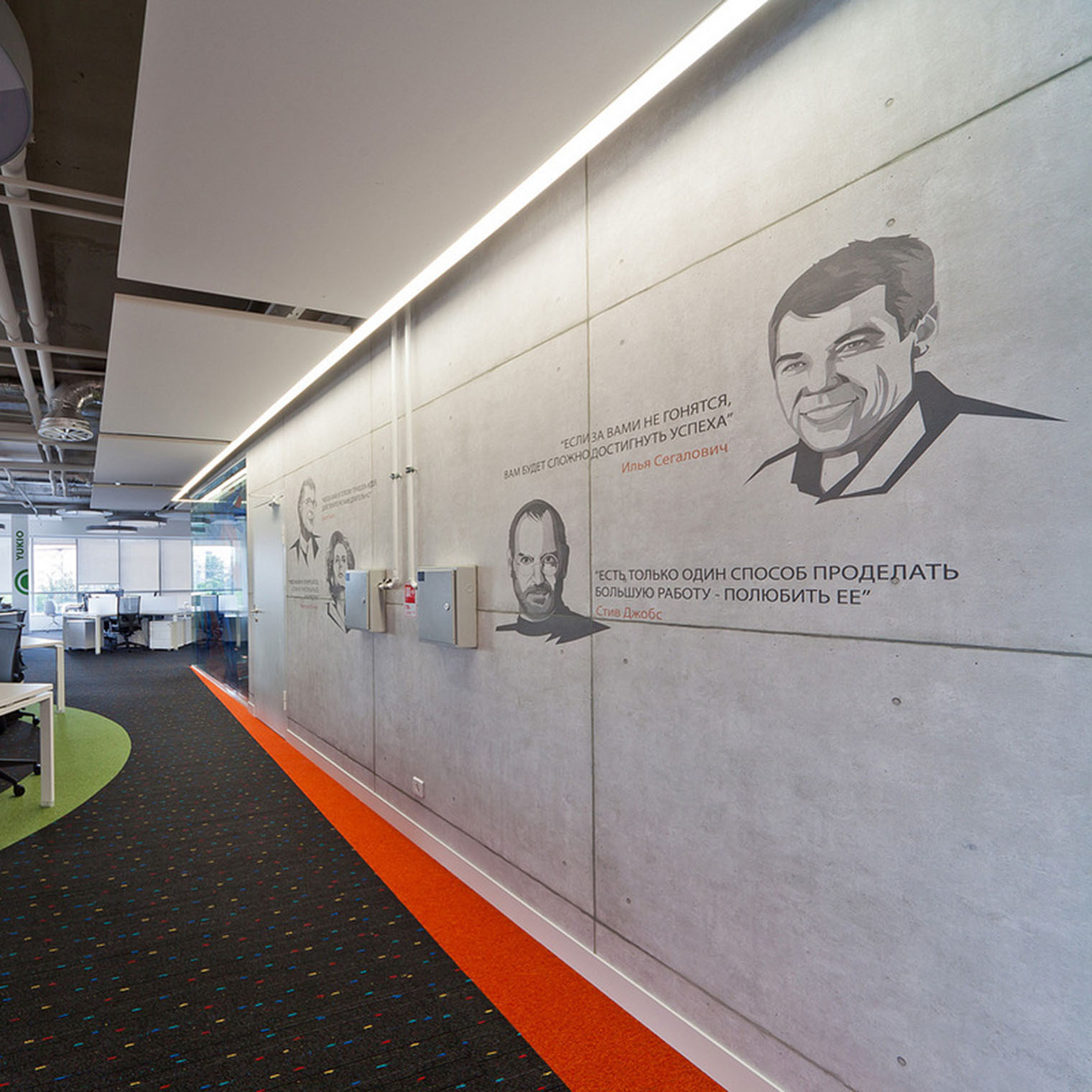

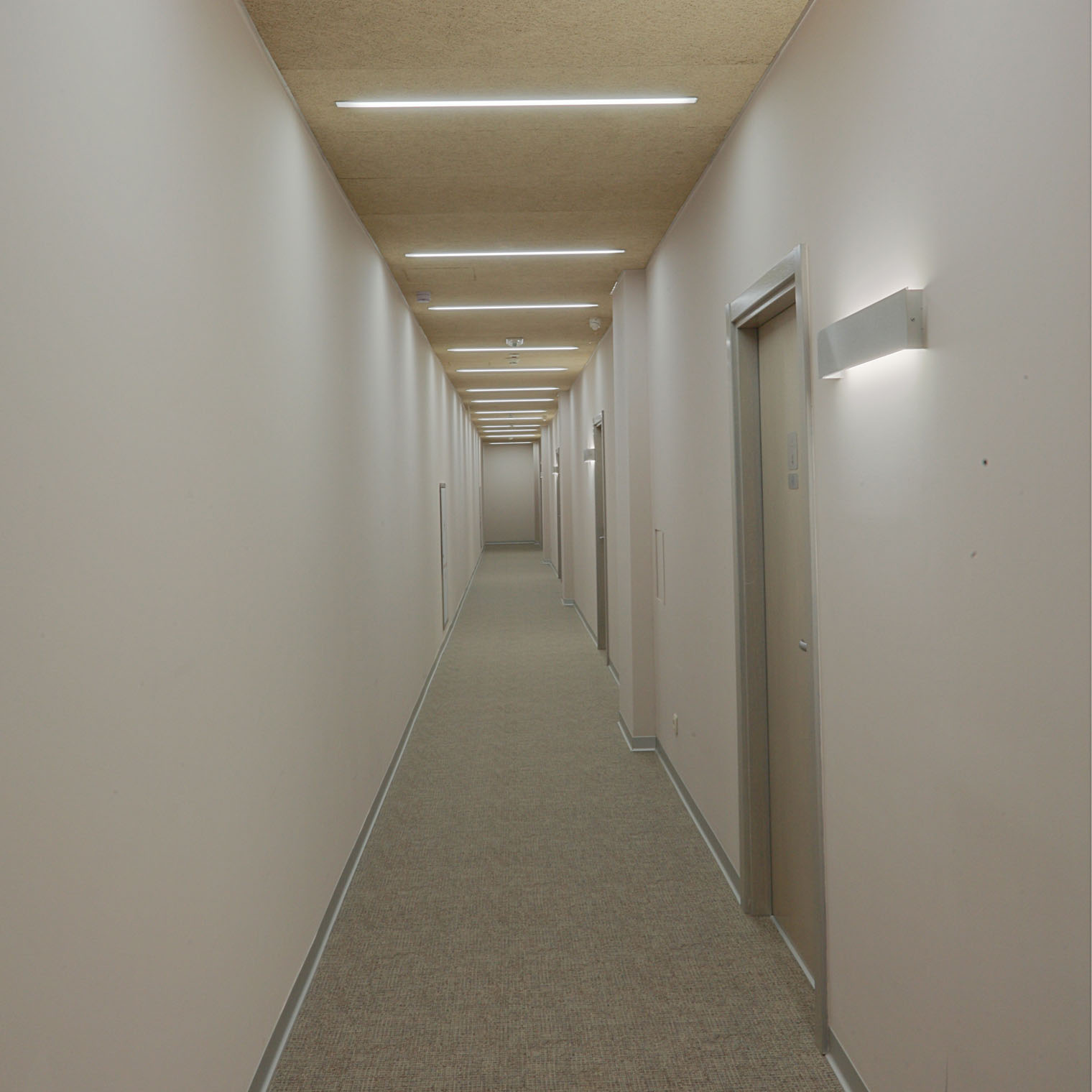

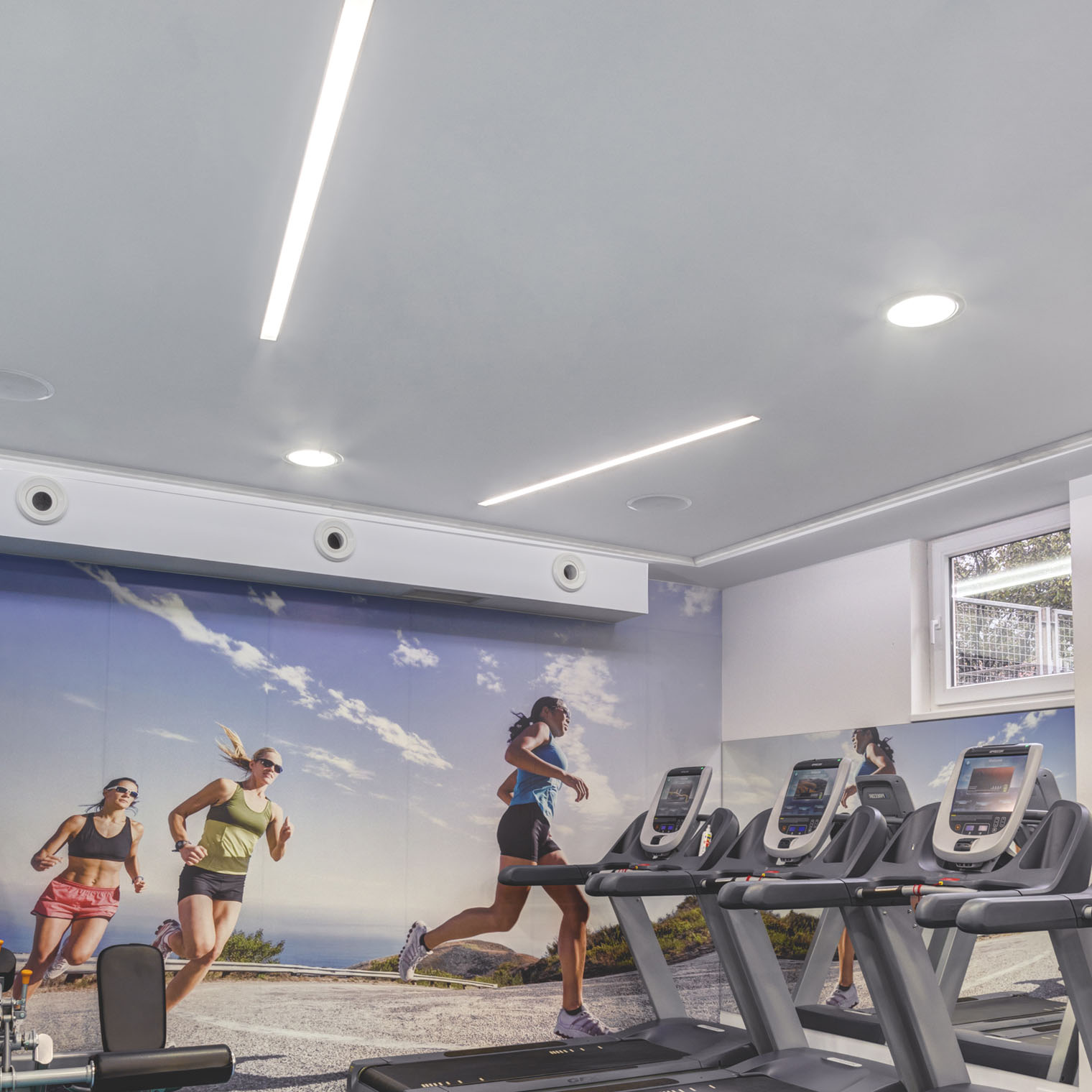

GENERAL Recessed linear luminaire for direct illumination, applicable to general use spaces.
OPTICS The opal diffuser provides a uniform diffusing light and uniformly illuminated surface, without visible light sources.
LIGHTING MANAGEMENT The choice of appropriate control gear enables management with analog dimming 1-10V, while DALI enables connection and management in central management system. Also available in autonomous operation mode.
HOUSING Housing made of extruded aluminium. Finish: anodisation in natural aluminium colour or polyester powder coating. Fine structured texture. Other colours are available upon request.
APPLICATION Applicable to monolith suspended ceilings.
FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain light uniformityand aesthetic consistency of the interior.
ADDITIONAL Other light colour temperatures available upon request.
Technical data
![Recessed ceiling](/wp-content/uploads/buck-eksa/symbols/2_recessed_ceiling.jpg)
![White finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_11_white_finestructured_paint.jpg)
![Anodised aluminium](/wp-content/uploads/buck-eksa/symbols/1_91_anodises_aluminium.jpg)
![CE](/wp-content/uploads/buck-eksa/symbols/10_ce.jpg)
![Zapaljivost F](/wp-content/uploads/buck-eksa/symbols/7_f.jpg)
![SELV](/wp-content/uploads/buck-eksa/symbols/selv.jpg)
![IP42](/wp-content/uploads/buck-eksa/symbols/4_IP42.jpg)
![220-240V](/wp-content/uploads/buck-eksa/symbols/6_220_240.jpg)
![50-60Hz](/wp-content/uploads/buck-eksa/symbols/6_50_60Hz.jpg)
![LED](/wp-content/uploads/buck-eksa/symbols/3_LED.jpg)
Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
---|---|---|---|---|---|---|---|---|---|---|---|
1257112XY | SLIM LINE 600 /840 HE | 574/55/70 | 567/47/115 | 1.10 | 615 | IP42 | <25 | 7.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257117XY | SLIM LINE 600 /840 HO | 574/55/70 | 567/47/115 | 1.10 | 1173 | IP42 | — | 14.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257122XY | SLIM LINE 900 /840 HE | 854/55/70 | 847/47/115 | 1.80 | 922 | IP42 | <25 | 10.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257127XY | SLIM LINE 900 /840 HO | 854/55/70 | 847/47/115 | 1.80 | 1759 | IP42 | — | 20.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257132XY | SLIM LINE 1200 /840 HE | 1134/55/70 | 1127/47/115 | 2.20 | 1229 | IP42 | <25 | 14.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257137XY | SLIM LINE 1200 /840 HO | 1134/55/70 | 1127/47/115 | 2.20 | 2346 | IP42 | — | 27.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257142XY | SLIM LINE 1500 /840 HE | 1414/55/70 | 1407/47/115 | 2.90 | 1537 | IP42 | <25 | 17.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
1257147XY | SLIM LINE 1500 /840 HO | 1414/55/70 | 1407/47/115 | 2.90 | 2932 | IP42 | — | 34.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
