Product details

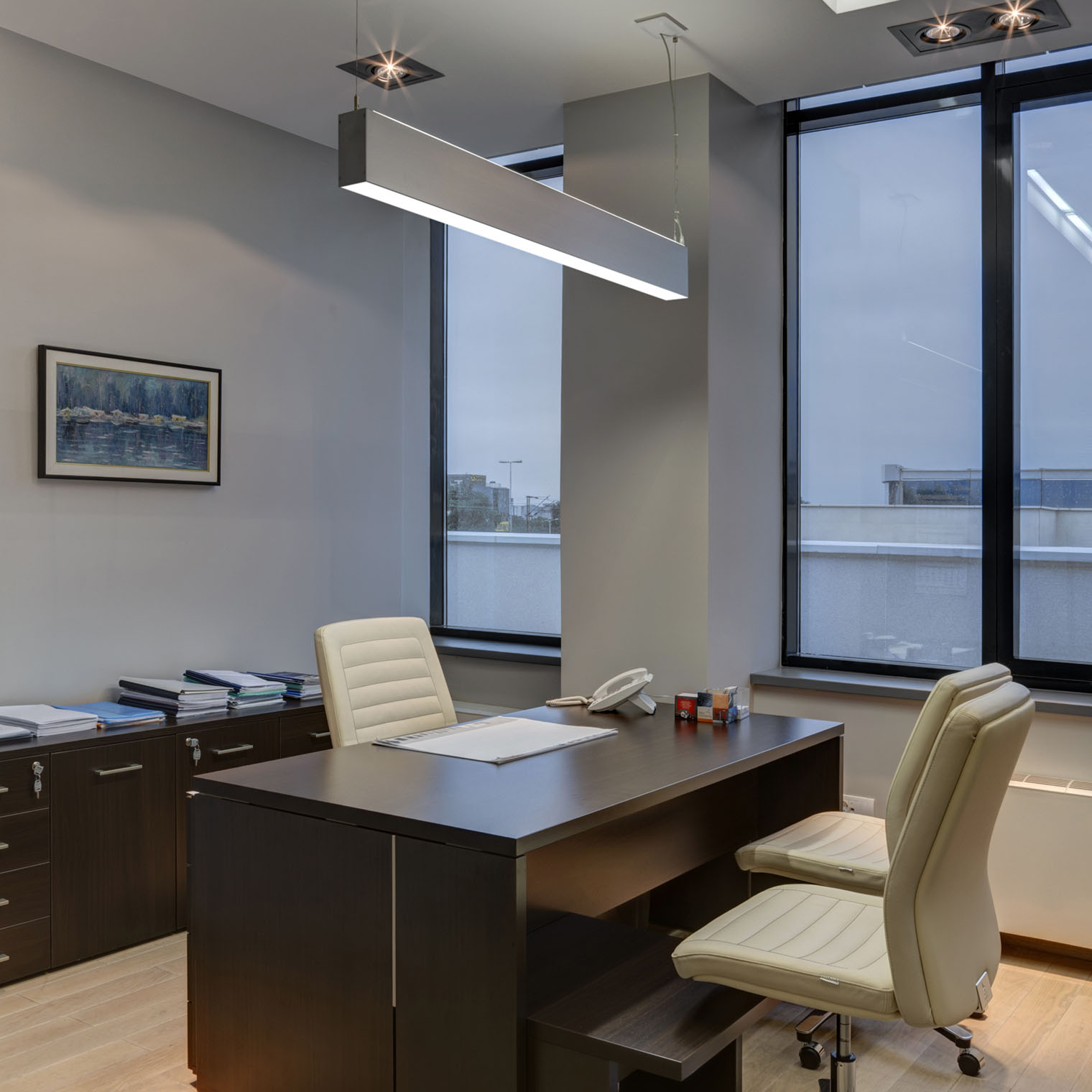

GENERAL High efficiency suspension linear luminaire for direct and indirect high quality illumination of office spaces.
OPTICS Multilayered optics for the direct light component: extruded clear/ opal diffuser, CDP prismatic diffuser and opal diffusing film. Optics for the indirect light component: satin protector of PMMA. Both components provide high energy efficiency >100 lm/W and full visual comfort.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

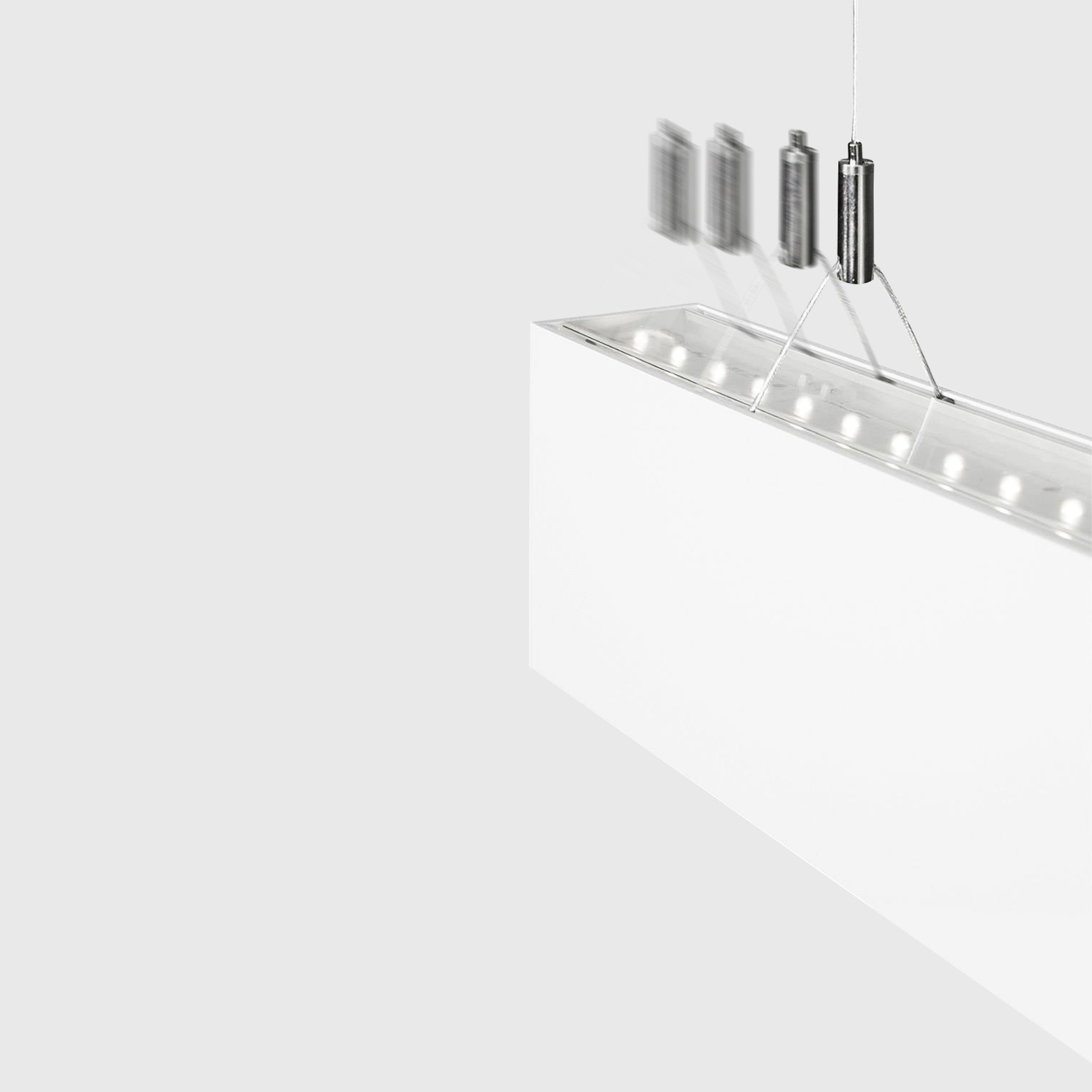

FEATURES Easy tool- free mounting and maintenance. Flexibility in positioning suspension elements on the luminaire. Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL To be ordered separately: EM module, enabling operation in the case of a power failure, Dynamic White and other light colour temperatures.
Technical data
| Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2813122XY | DUAL S CDP 900 /840 HE | 846/60/110 | 3.10 | 2368 | IP40 | <16 | 18.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813126XY | DUAL S CDP 900 /840 HO | 846/60/110 | 3.10 | 4528 | IP40 | <16 | 38.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813132XY | DUAL S CDP 1200 /840 HE | 1126/60/110 | 3.90 | 3158 | IP40 | <16 | 24.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813136XY | DUAL S CDP 1200 /840 HO | 1126/60/110 | 3.90 | 6037 | IP40 | <16 | 50.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813142XY | DUAL S CDP 1500 /840 HE | 1406/60/110 | 4.70 | 3947 | IP40 | <16 | 30.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813146XY | DUAL S CDP 1500 /840 HO | 1406/60/110 | 4.70 | 7547 | IP40 | <16 | 63.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813152XY | DUAL S CDP 2400 /840 HE | 2248/60/110 | 7.60 | 6316 | IP40 | <16 | 48.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
| 2813156XY | DUAL S CDP 2400 /840 HO | 2248/60/110 | 7.60 | 12074 | IP40 | <16 | 100.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
