DUAL S WW
Product details

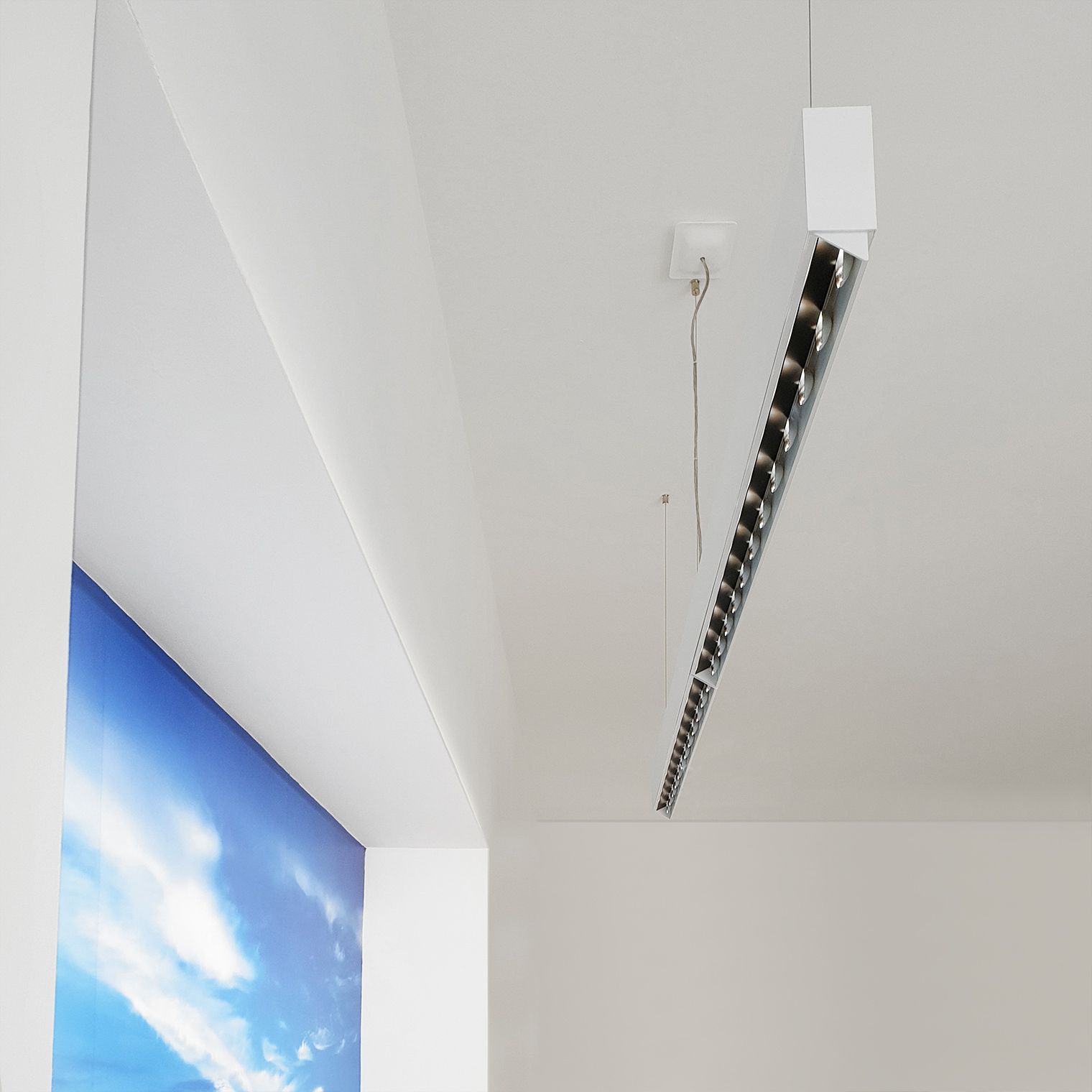

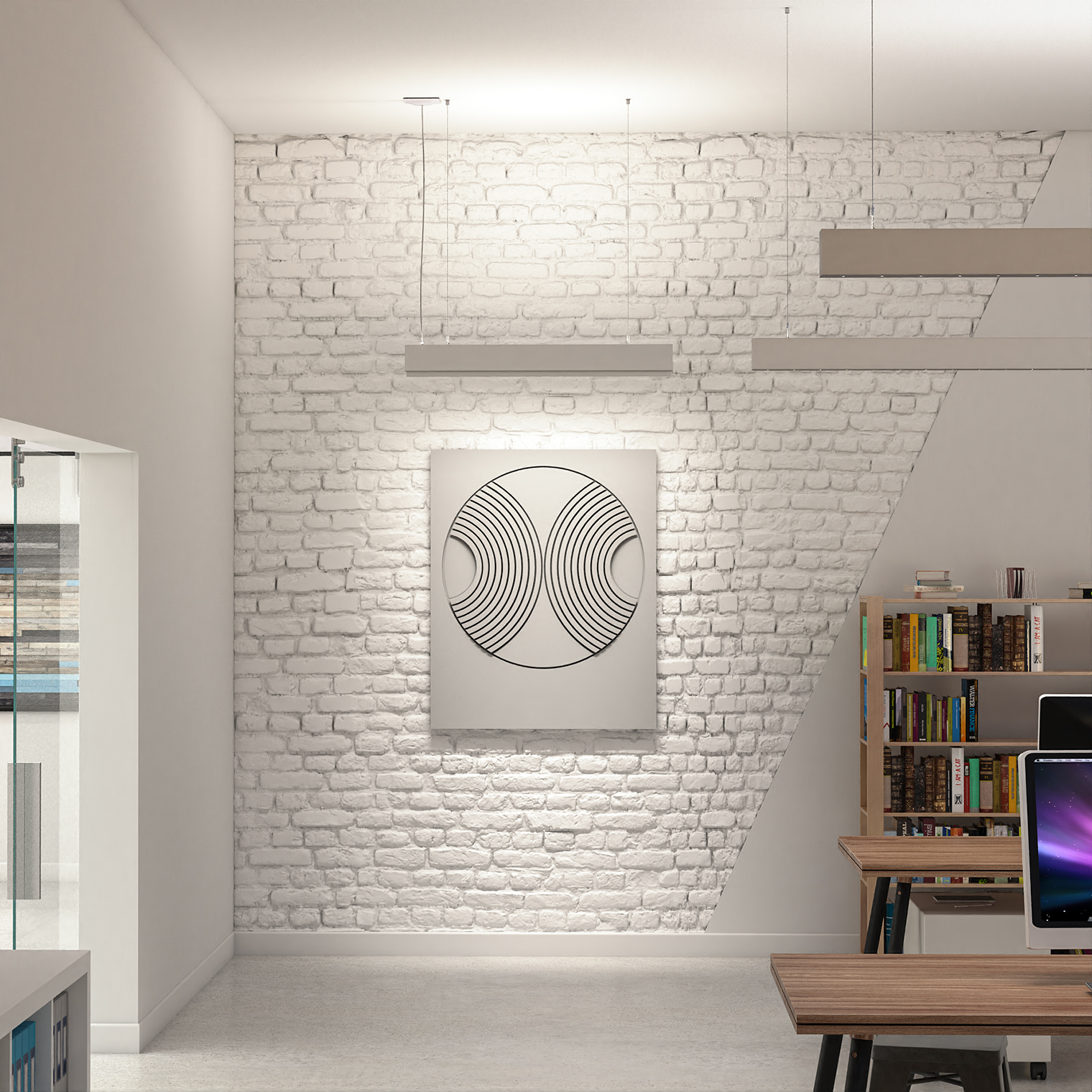

GENERAL High efficiency suspension linear luminaire for direct and indirect high quality illumination of office spaces.
OPTICS For direct light component: wall washing component is based on reflectors with complex-surface micro-facet technology. The reflectors ensure high uniformity in lighting distribution on plane with characteristic elongation in vertical direction. Precise cut off eliminating glare in adjacent areas. For indirect light component: transparent / satin PMMA diffuser.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

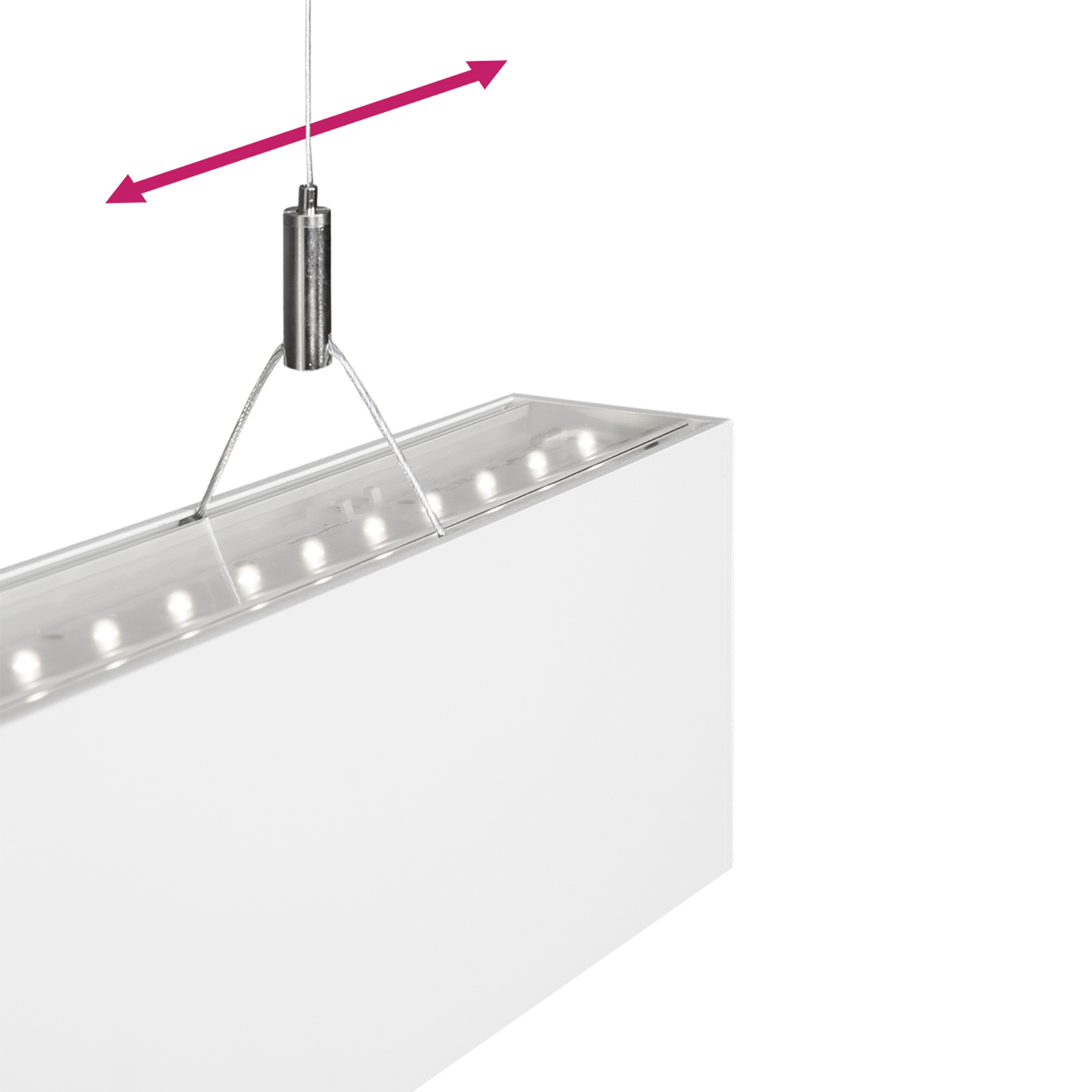

FEATURES Easy tool- free mounting and maintenance. Flexibility in positioning suspension elements on the luminaire. Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
ADDITIONAL To be ordered separately: suspension kit, an EM module, enabling operation in the case of a power failure, Dynamic White and other light colour temperatures.
Technical data
![Wall washer suspended DIR/INDIR](/wp-content/uploads/buck-eksa/symbols/2_wall_washer_suspended_direct-indirect.jpg)
![White finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_11_white_finestructured_paint.jpg)
![Gray finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_21_gray_finestructured_paint.jpg)
![Black finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_31_black_finestructured_paint.jpg)
![CE](/wp-content/uploads/buck-eksa/symbols/10_ce.jpg)
![Zapaljivost F](/wp-content/uploads/buck-eksa/symbols/7_f.jpg)
![CLASS 1](/wp-content/uploads/buck-eksa/symbols/8_class1.jpg)
![IP40](/wp-content/uploads/buck-eksa/symbols/4_IP40.jpg)
![220-240V](/wp-content/uploads/buck-eksa/symbols/6_220_240.jpg)
![50-60Hz](/wp-content/uploads/buck-eksa/symbols/6_50_60Hz.jpg)
![LED](/wp-content/uploads/buck-eksa/symbols/3_LED.jpg)
Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | Total Power [W] | CCT [K] | CRI | Led Service Life |
---|---|---|---|---|---|---|---|---|---|
2818111XY | DUAL S WW /S 900 /840 | 846/60/136 | 2.80 | 4786 | IP40 | 38.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
2818121XY | DUAL S WW /S 1200 /840 | 1126/60/136 | 3.60 | 6382 | IP40 | 51.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
2818131XY | DUAL S WW /S 1500 /840 | 1406/60/136 | 4.30 | 7977 | IP40 | 64.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
2818141XY | DUAL S WW /S 2400 /840 | 2248/60/136 | 7.00 | 12764 | IP40 | 102.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
