Product details

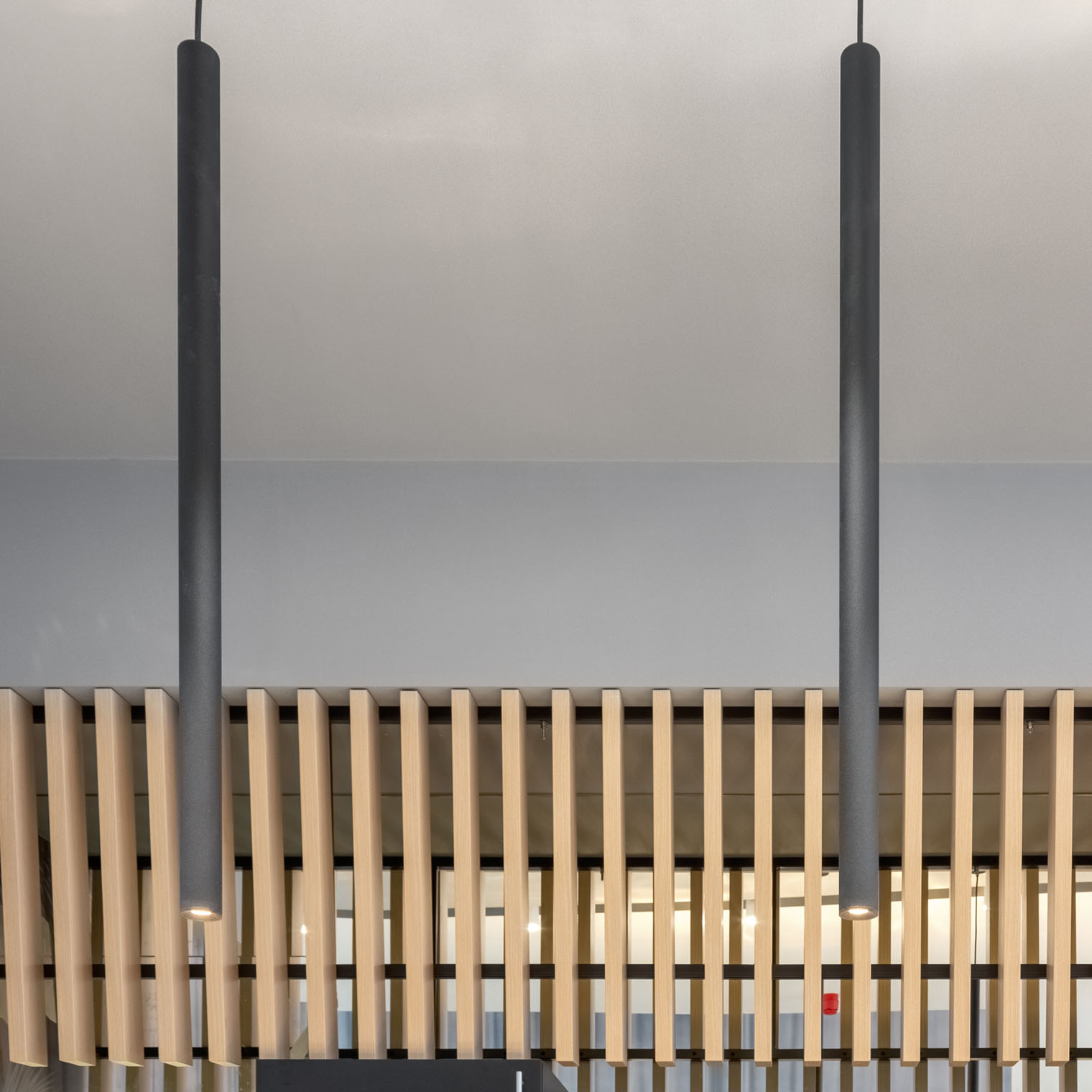

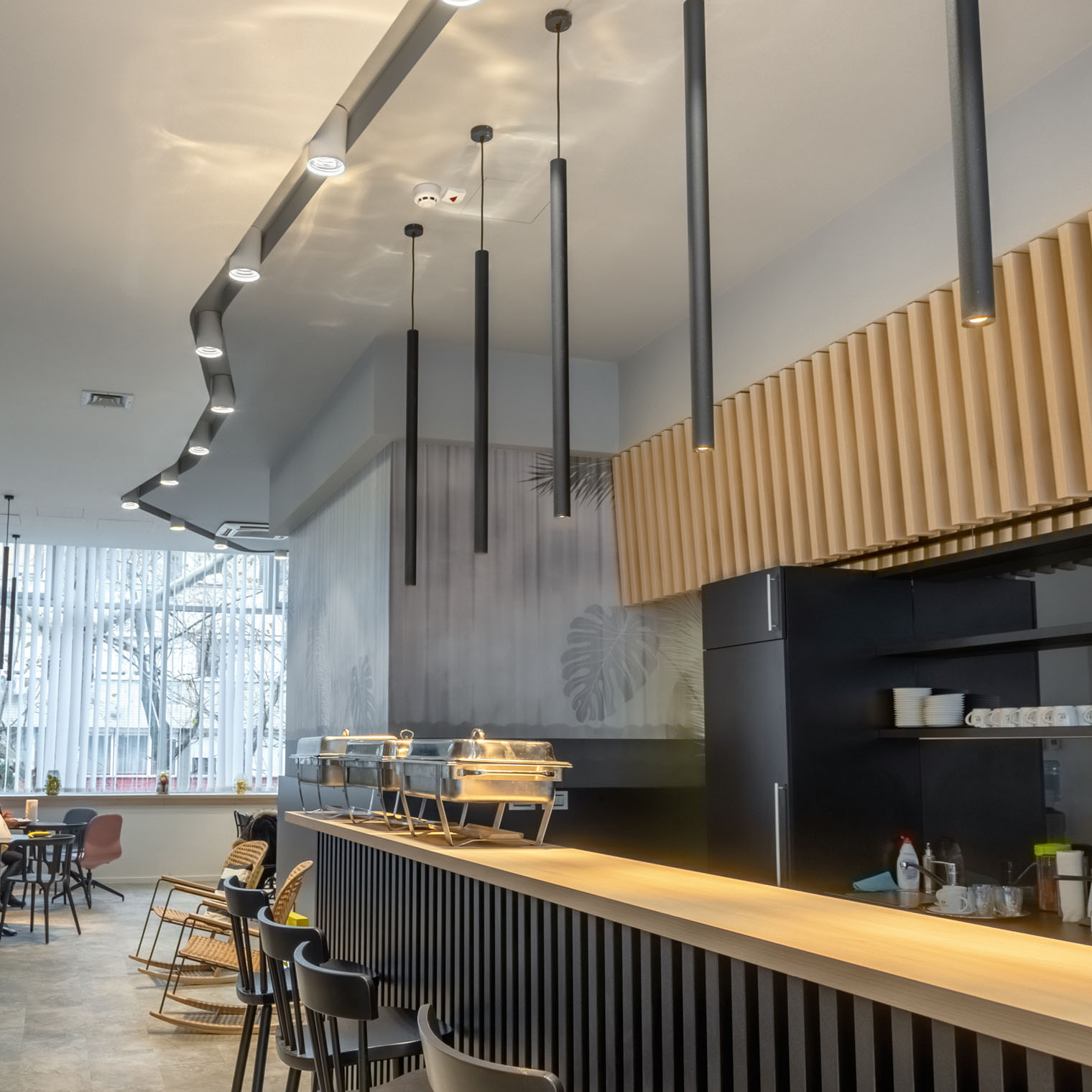

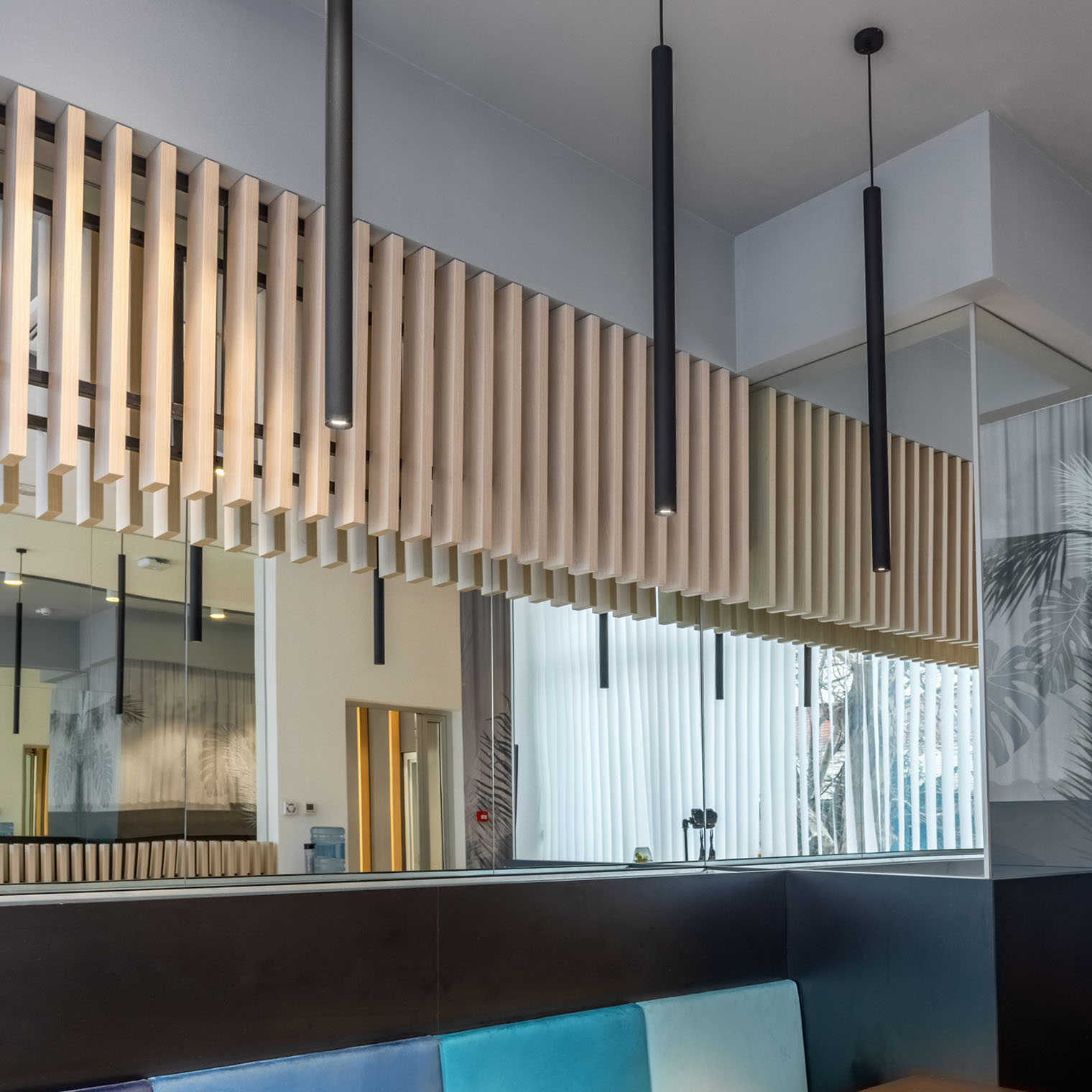

GENERAL High optical and energy efficiency suspended downlighter for accent illumination.

OPTICS Micro downlight reflector with complex surfaces geometry of micro facets allows precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort (UGR < 19).

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

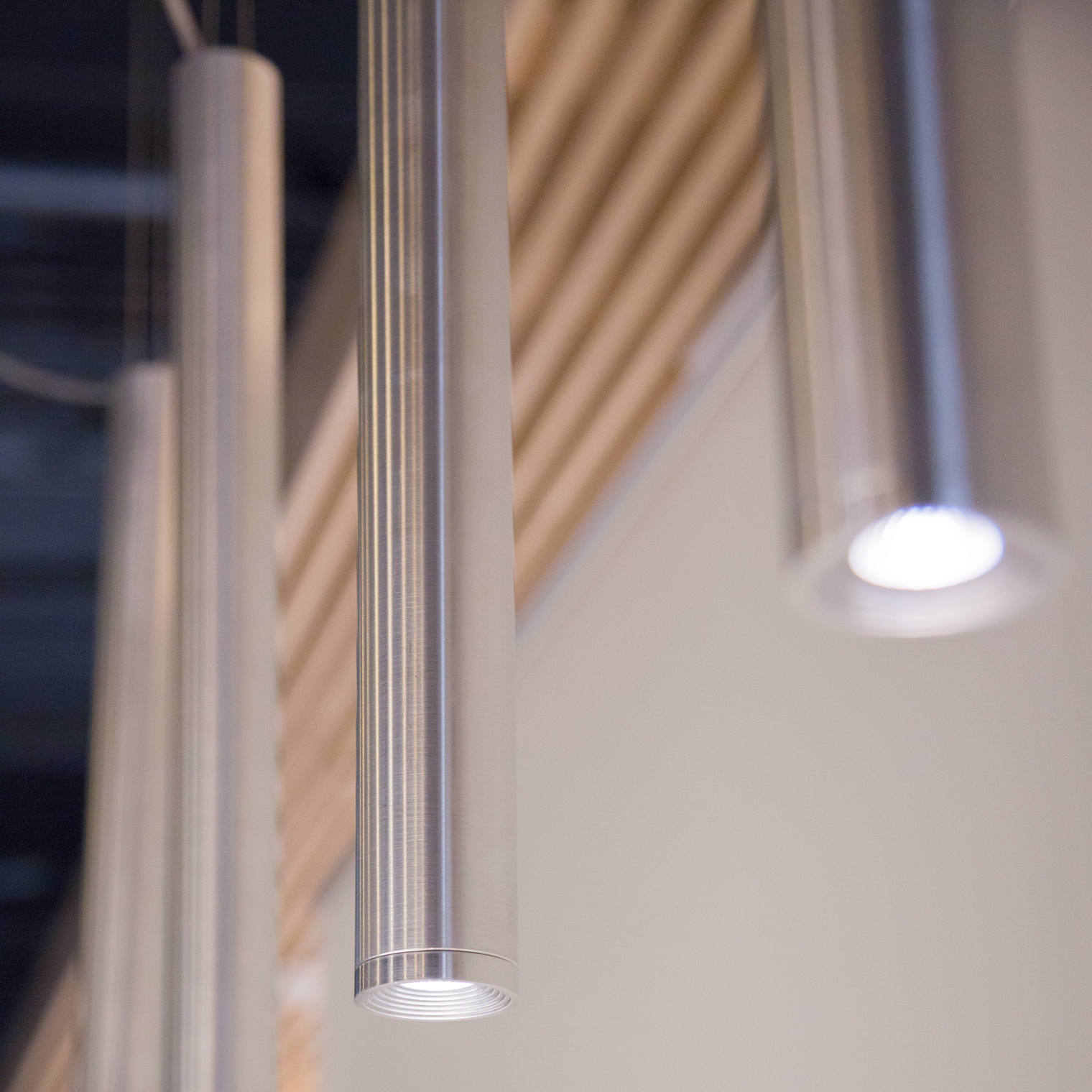

HOUSING Housing is made of extruded aluminium tube. Finish: epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

EQUIPMENT Supplied with suspension kit.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Suspended direct lighting
White finestructured paint
Gray finestructured paint
Black finestructured paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2771111XY MICRO /S 35dg /840 45 /500 0.70 483 35° IP20 <6 5.0 4000 >80 50000h L80B10 /SCDM3
2771112XY MICRO /S 55dg /840 45 /500 0.70 517 55° IP20 <16 5.0 4000 >80 50000h L80B10 /SCDM3
2771113XY MICRO /S 75dg /840 45 /500 0.70 537 75° IP20 <25 5.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
