INSERT S TLS WW
Product details

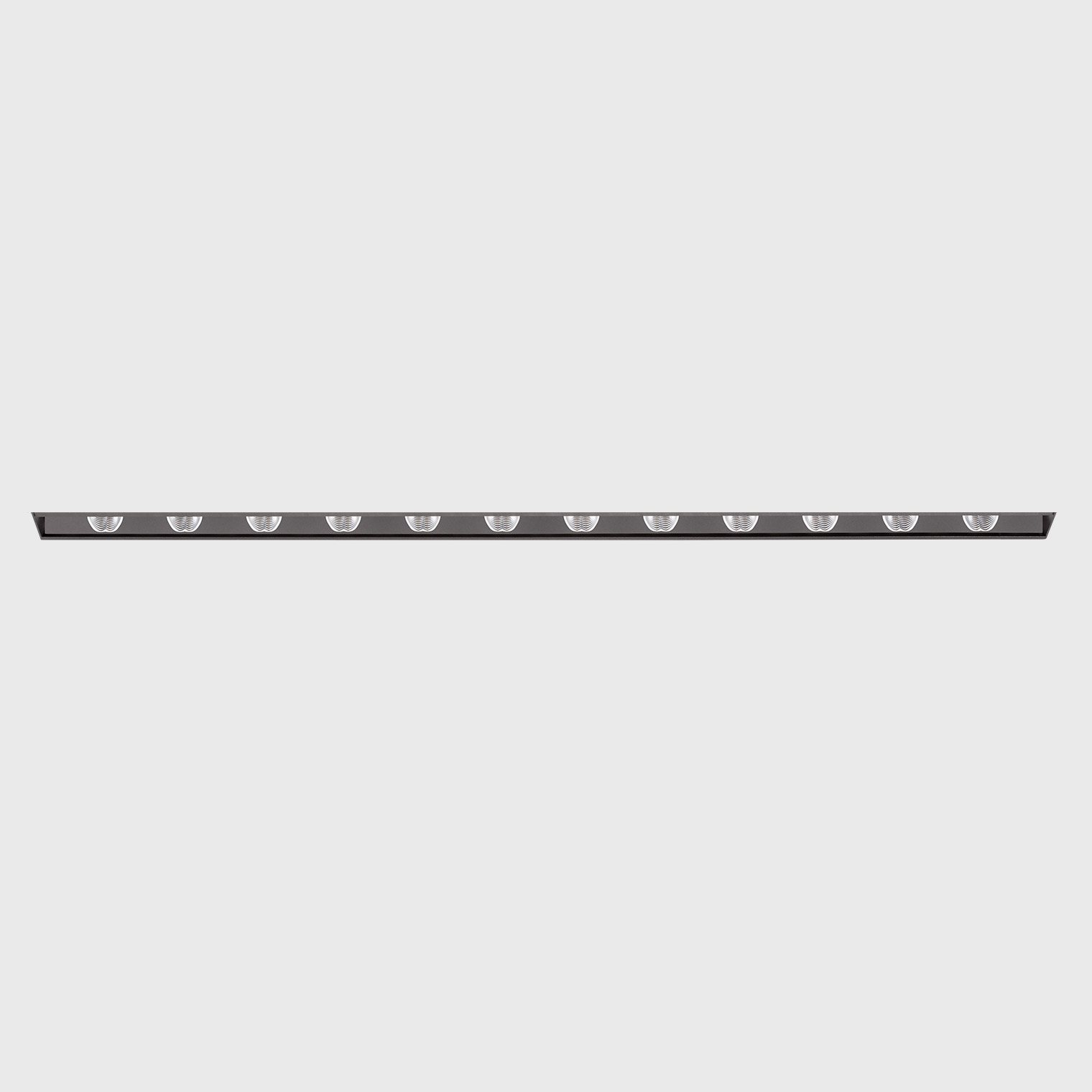

GENERAL High efficiency recessed trimless linear luminaire for direct illumination.
OPTICS Wall washing component is based on reflectors with complex- surface micro- facet technology. The reflectors ensure high uniformity in lighting distribution on plane with characteristic elongation in vertical direction. Precise cut off eliminating glare in adjacent areas.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.
HOUSING Housing made of extruded aluminium, without visible frame. Finish: anodisation in natural aluminium colour or polyester powder coating. Fine structured texture. Other colours are available upon request.

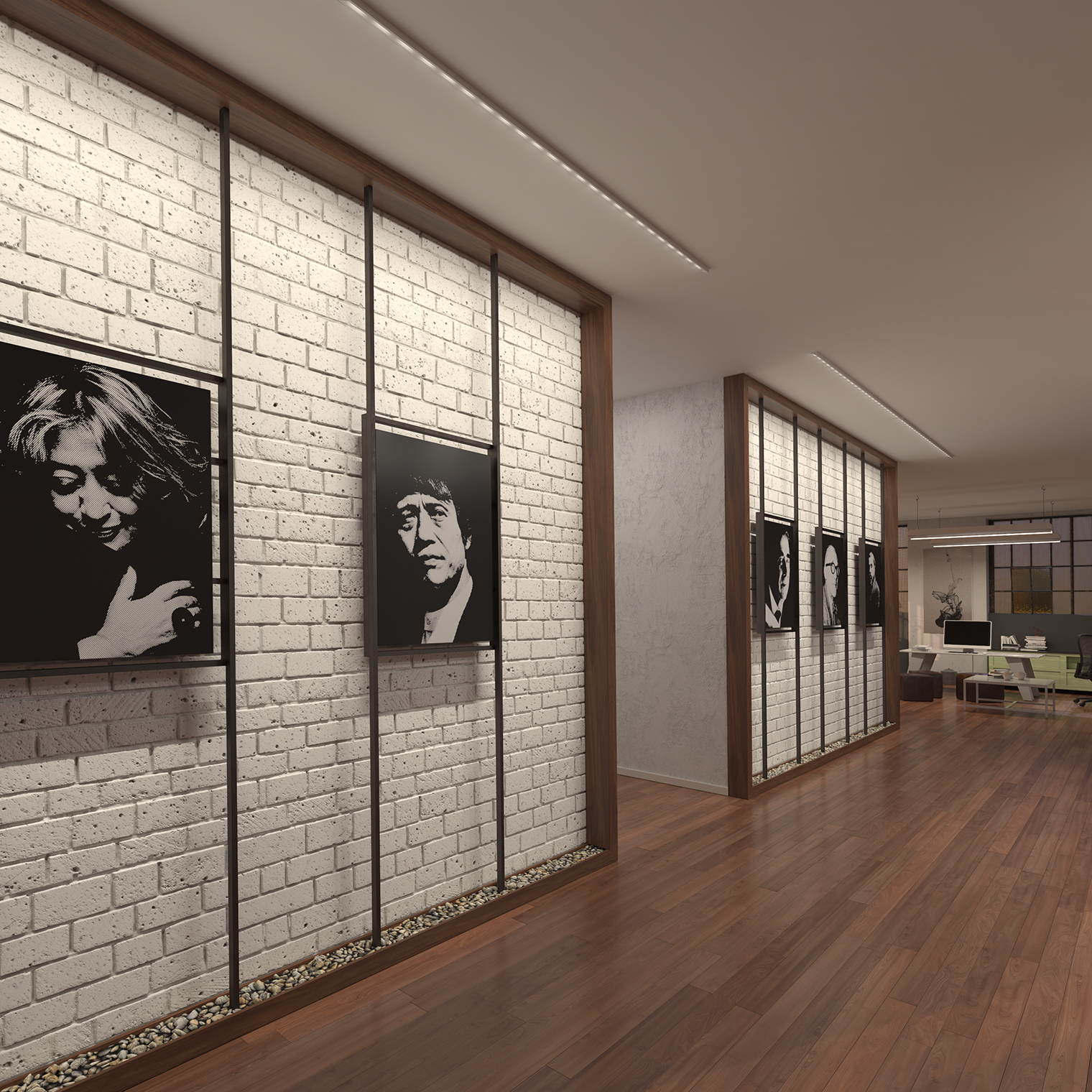

APPLICATION Applicable to monolith suspended ceilings.
ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* | IP | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 1220111XY | INSERT S TLS WW 900 /840 | 846/60/136 | 846/60/170 | 2.80 | 2081 | IP20 | 19.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1220121XY | INSERT S TLS WW 1200 /840 | 1126/60/136 | 1126/60/170 | 3.60 | 2774 | IP20 | 26.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1220131XY | INSERT S TLS WW 1500 /840 | 1406/60/136 | 1406/60/170 | 4.30 | 3468 | IP20 | 32.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1220141XY | INSERT S TLS WW 2400 /840 | 2248/60/136 | 2248/60/170 | 7.00 | 5549 | IP20 | 51.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
