SLIM LINE TLS

Product details

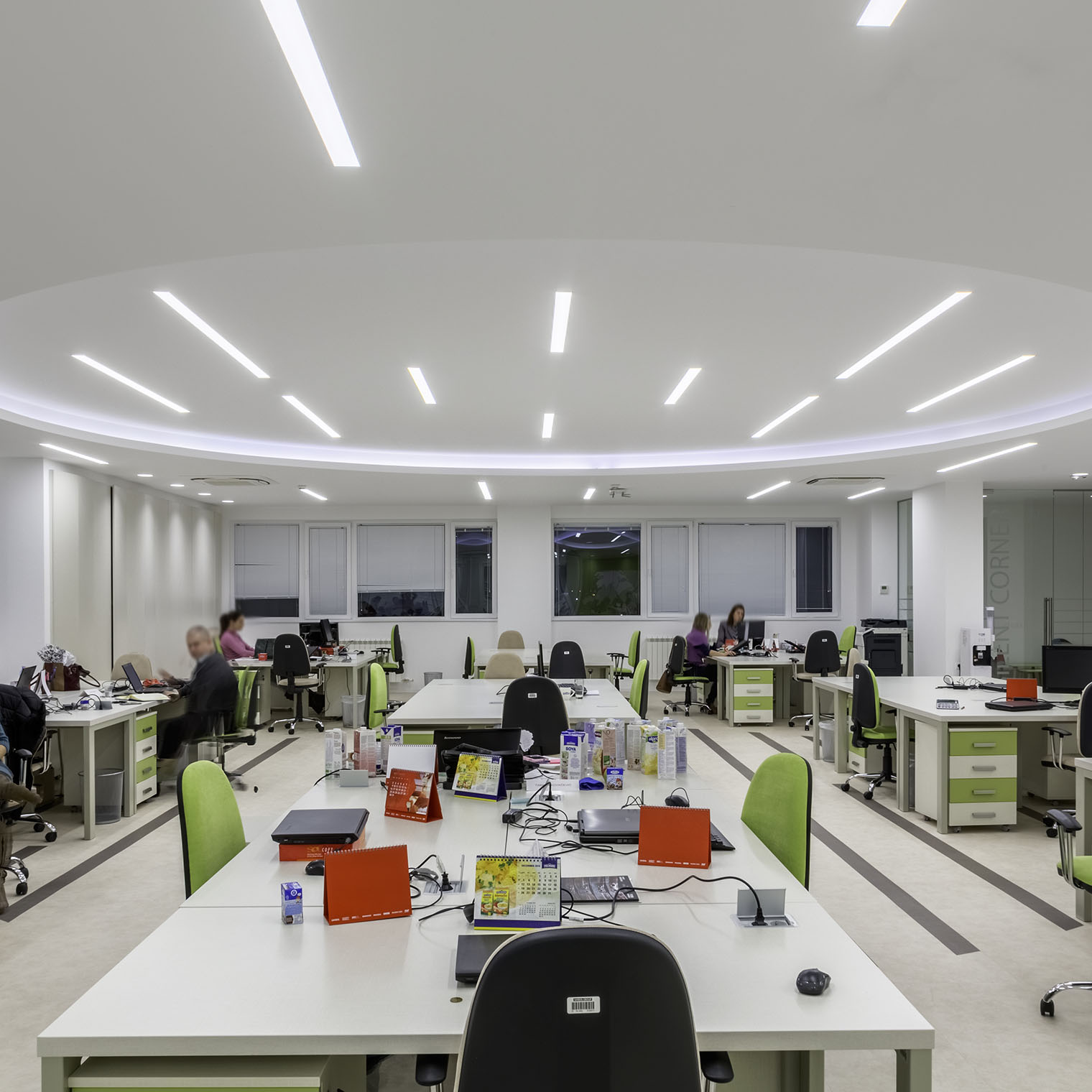

GENERAL Recesed trimless linear luminaire for direct illumination, appropriate for general spaces.

OPTICS The opal diffuser provides a uniform diffusing light and uniformly illuminated surface, without visible light sources.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Luminaire of extruded aluminium, without visible frame. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

APPLICATION Applicable to monolith suspended ceilings.

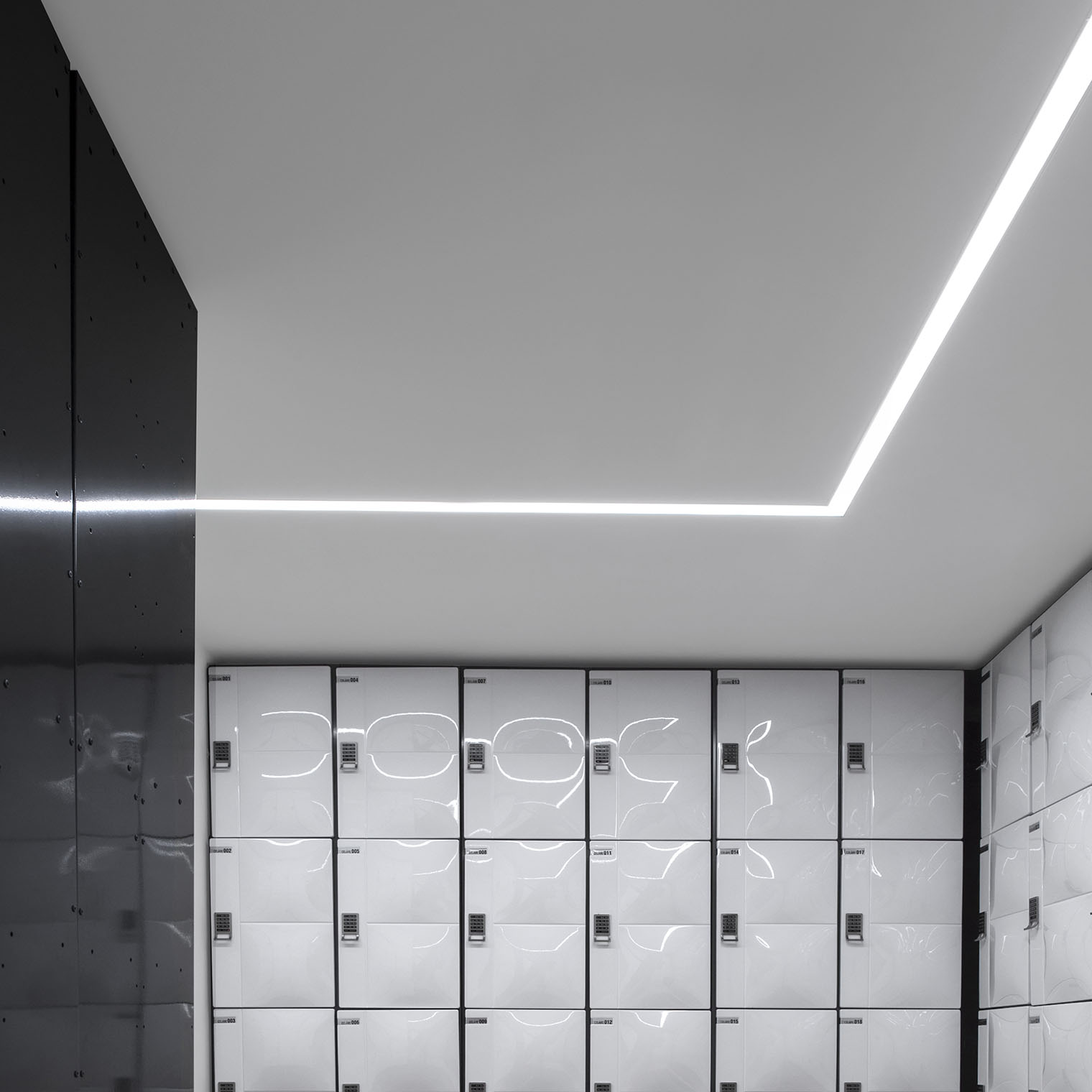

FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Ceiling mounted
White finestructured paint
Gray finestructured paint
Black finestructured paint
Anodised aluminium
CE
Zapaljivost F
CLASS 1
IP42
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1254121XY SLIM LINE TLS 600 /840 HE 564/46/70 564/46/115 1.10 615 IP42 <25 7.0 4000 >80 60000h L80B10 /SDCM3
1254141XY SLIM LINE TLS 600 /840 HO 564/46/70 564/46/115 1.10 1173 IP42 14.0 4000 >80 60000h L80B10 /SDCM3
1254421XY SLIM LINE TLS 900 /840 HE 844/46/70 844/46/115 1.80 922 IP42 <25 10.0 4000 >80 60000h L80B10 /SDCM3
1254441XY SLIM LINE TLS 900 /840 HO 844/46/70 844/46/115 1.80 1759 IP42 20.0 4000 >80 60000h L80B10 /SDCM3
1254521XY SLIM LINE TLS 1200 /840 HE 1124/46/70 1124/46/115 2.20 1229 IP42 <25 14.0 4000 >80 60000h L80B10 /SDCM3
1254541XY SLIM LINE TLS 1200 /840 HO 1124/46/70 1124/46/115 2.20 2346 IP42 27.0 4000 >80 60000h L80B10 /SDCM3
1254621XY SLIM LINE TLS 1500 /840 HE 1404/46/70 1404/46/115 2.90 1537 IP42 <25 17.0 4000 >80 60000h L80B10 /SDCM3
1254641XY SLIM LINE TLS 1500 /840 HO 1404/46/70 1404/46/115 2.90 2932 IP42 34.0 4000 >80 60000h L80B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
