Product details

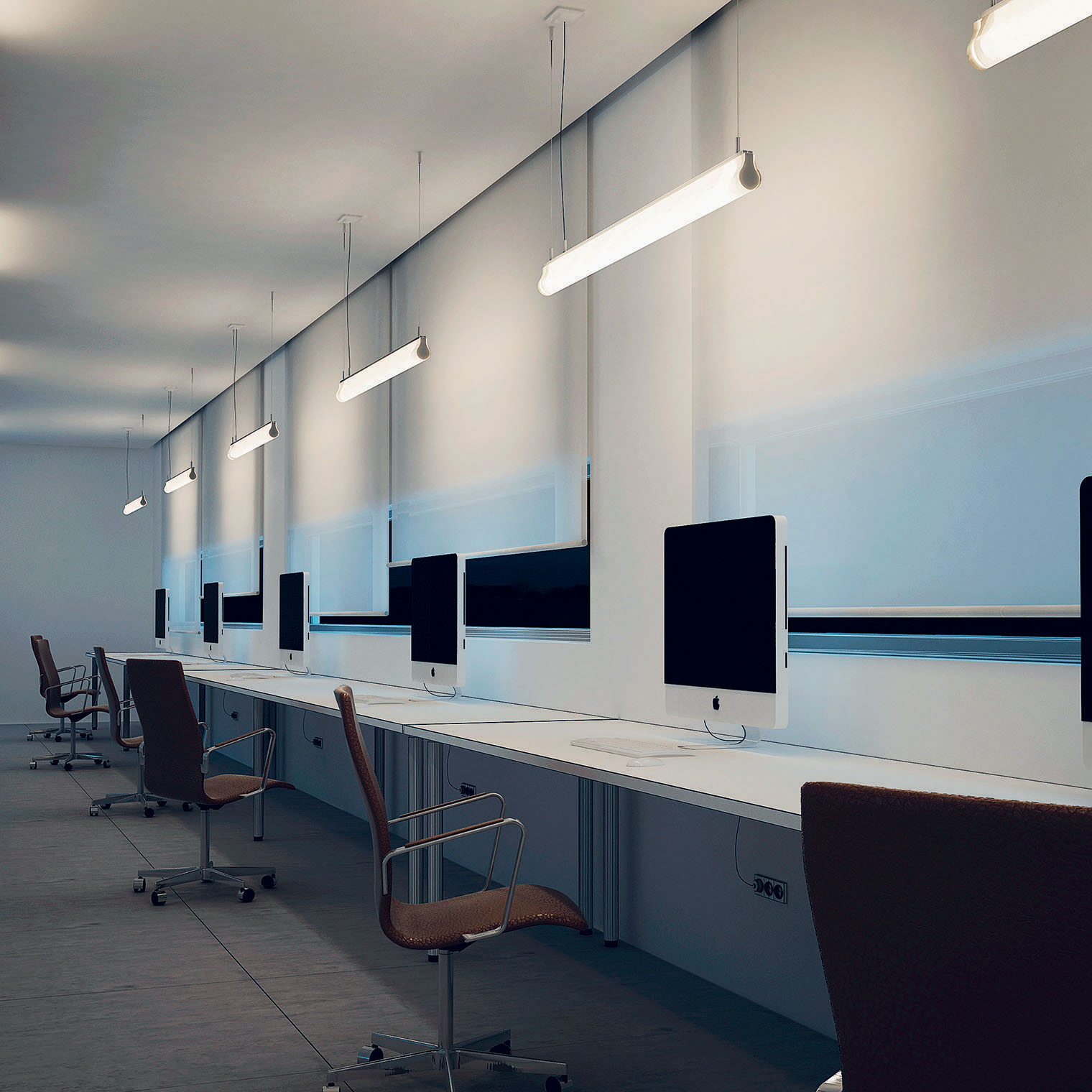

GENERAL Suspension luminaire for general illumination, with a simple, minimalistic shape.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
OPTICS Diffuser of satinised PMMA shaped in such a way as to provide maximal light emission surface, completely obscuring the extruded aluminium housing. Lateral PC caps in anthracite colour.
FEATURES Easy tool-free mounting and maintenance.

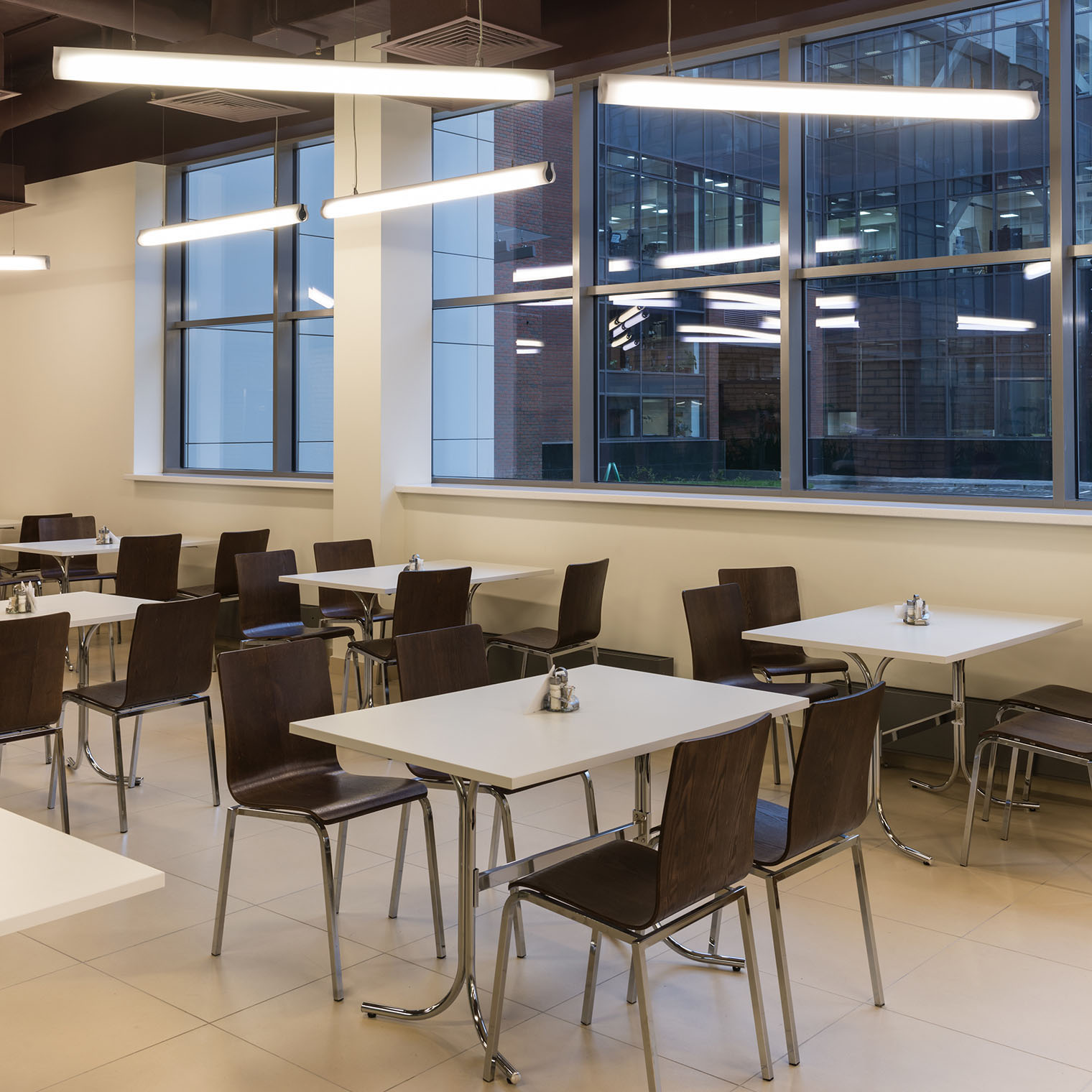

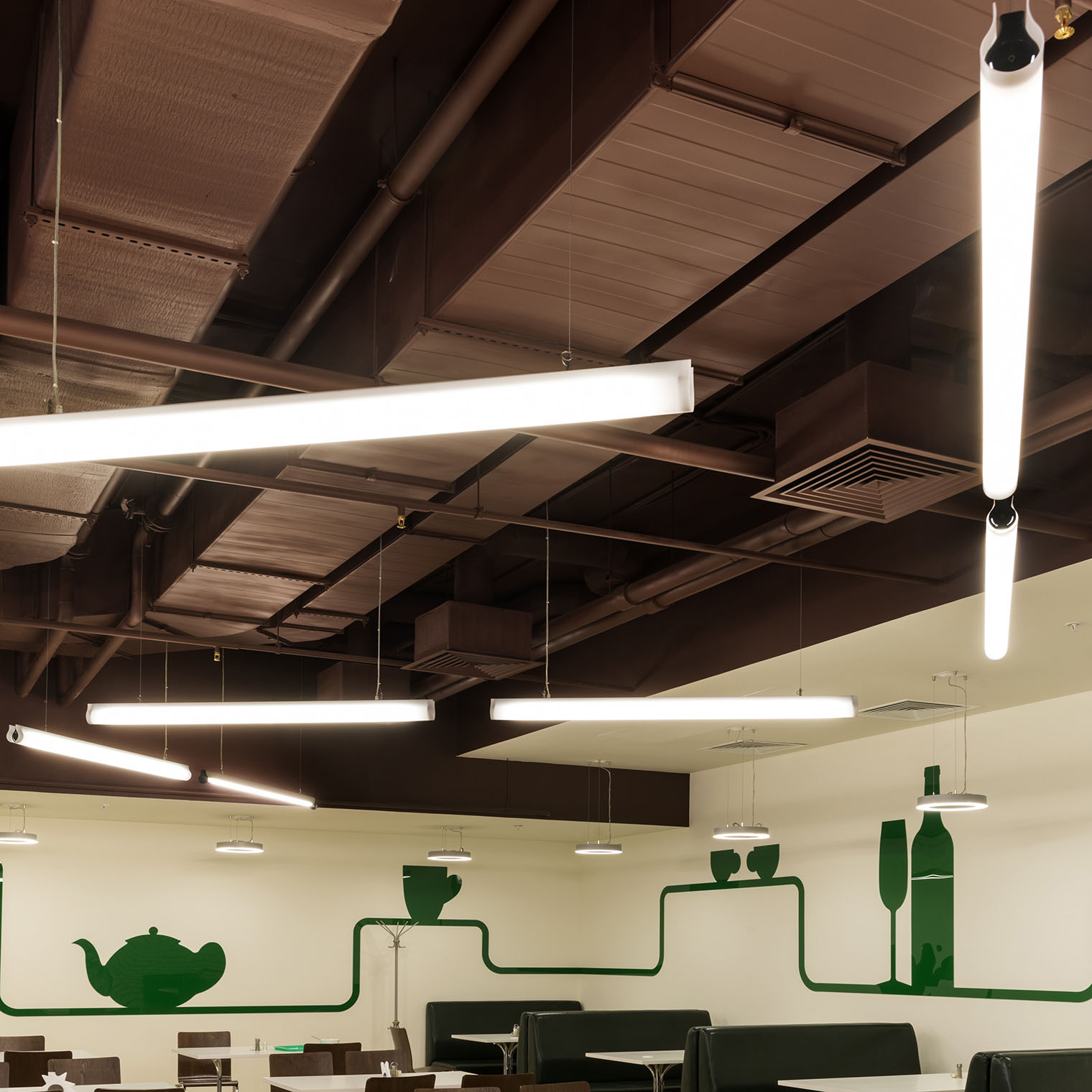

APPLICATION Elegant linear luminaire appropriate for different models of multiplication, according to the desired concept.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2565311XY | LUCIA /S 1000 /840 | 970/68/94 | 1.70 | 2688 | IP20 | <22 | 21.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2565411XY | LUCIA /S 1300 /840 | 1270/68/94 | 2.30 | 3584 | IP20 | <22 | 29.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2565511XY | LUCIA /S 1600 /840 | 1570/68/94 | 2.70 | 4480 | IP20 | <22 | 36.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
