LUNA CDP /C

Product details

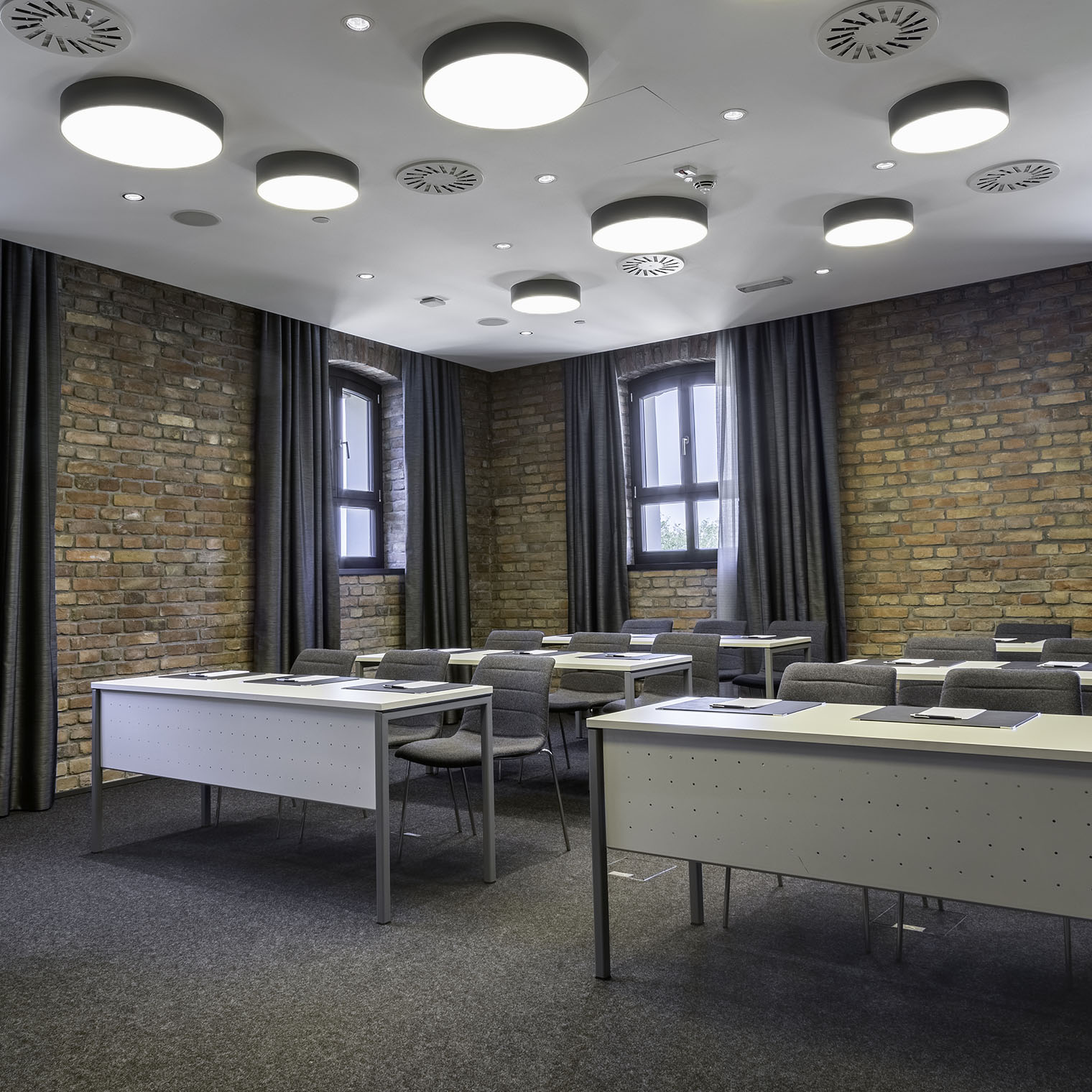

GENERAL Circular surface mounted luminaire for direct illumination of general use spaces.

OPTICS Highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. The opal foil provides a uniformly illuminated surface, without visible light sources, for full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing of aluminium, with epoxy polyester powder coating of fine structured texture. The interior of the housing is highly reflective white coating, regardless the outer finish, for maintaining high efficiency of the luminaire.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Ceiling mounted
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2239141XY LUNA CDP /C 400 /840 400/110 4.00 2373 IP40 <22 20.0 4000 >80 54000h L80B10 /SDCM 3
2239221XY LUNA CDP /C 600 /840 HE 600/110 5.40 3165 IP40 <19 25.0 4000 >80 54000h L80B10 /SDCM 3
2239241XY LUNA CDP /C 600 /840 HO 600/110 5.40 4698 IP40 <19 38.0 4000 >80 54000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
