Product details

GENERAL Recessed luminaire for general illumination. Invisibility of light source and no glare makes it desirable as an architectural element.

OPTICS Lens made of PMMA, retracted from the bottom surface of the luminaire, emitting light through perforation on the surface. Retraction from the perforation enables invisibility of the light source, providing full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.

HOUSING Housing is made of steel sheeting. Finish: anodisation in natural aluminium colour or epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

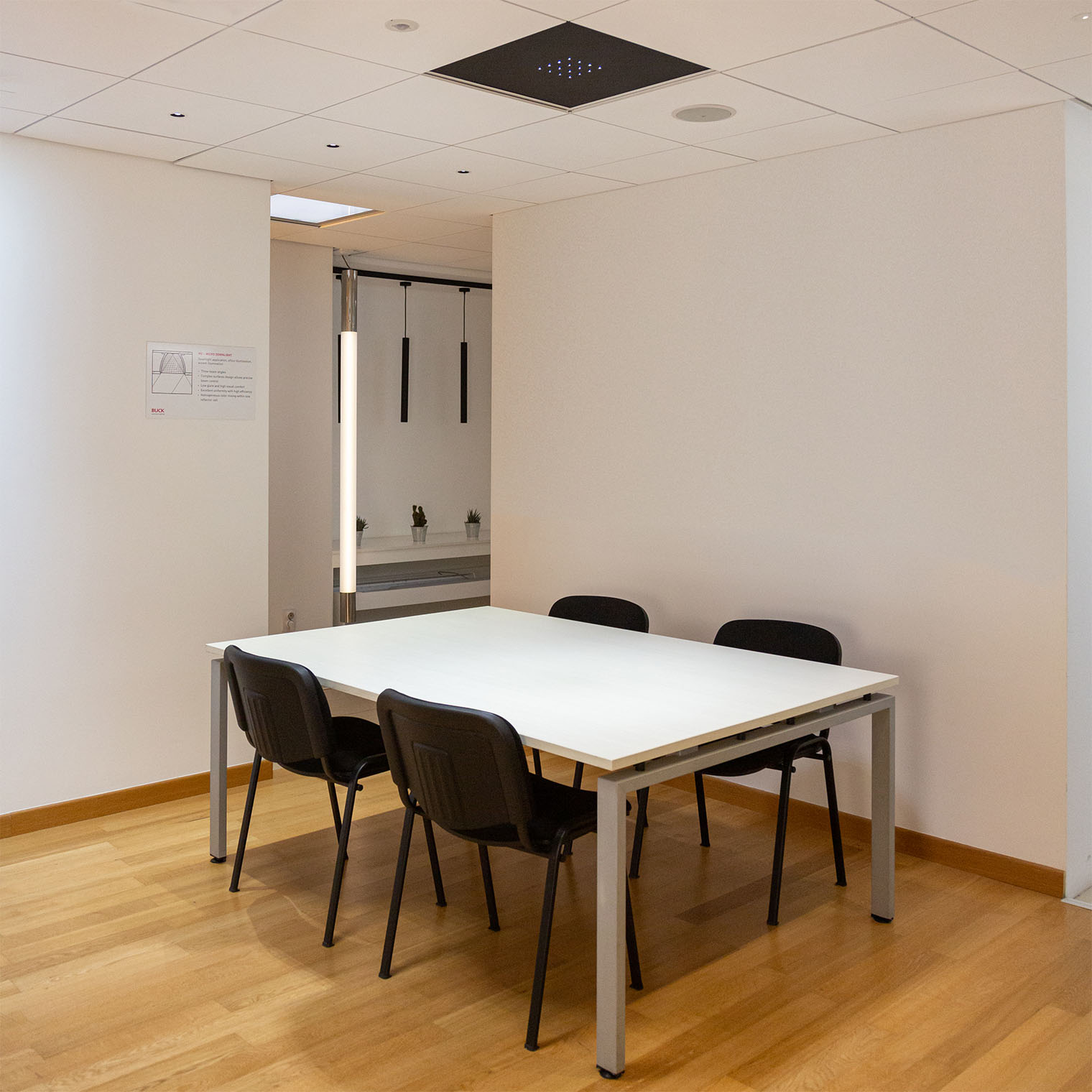

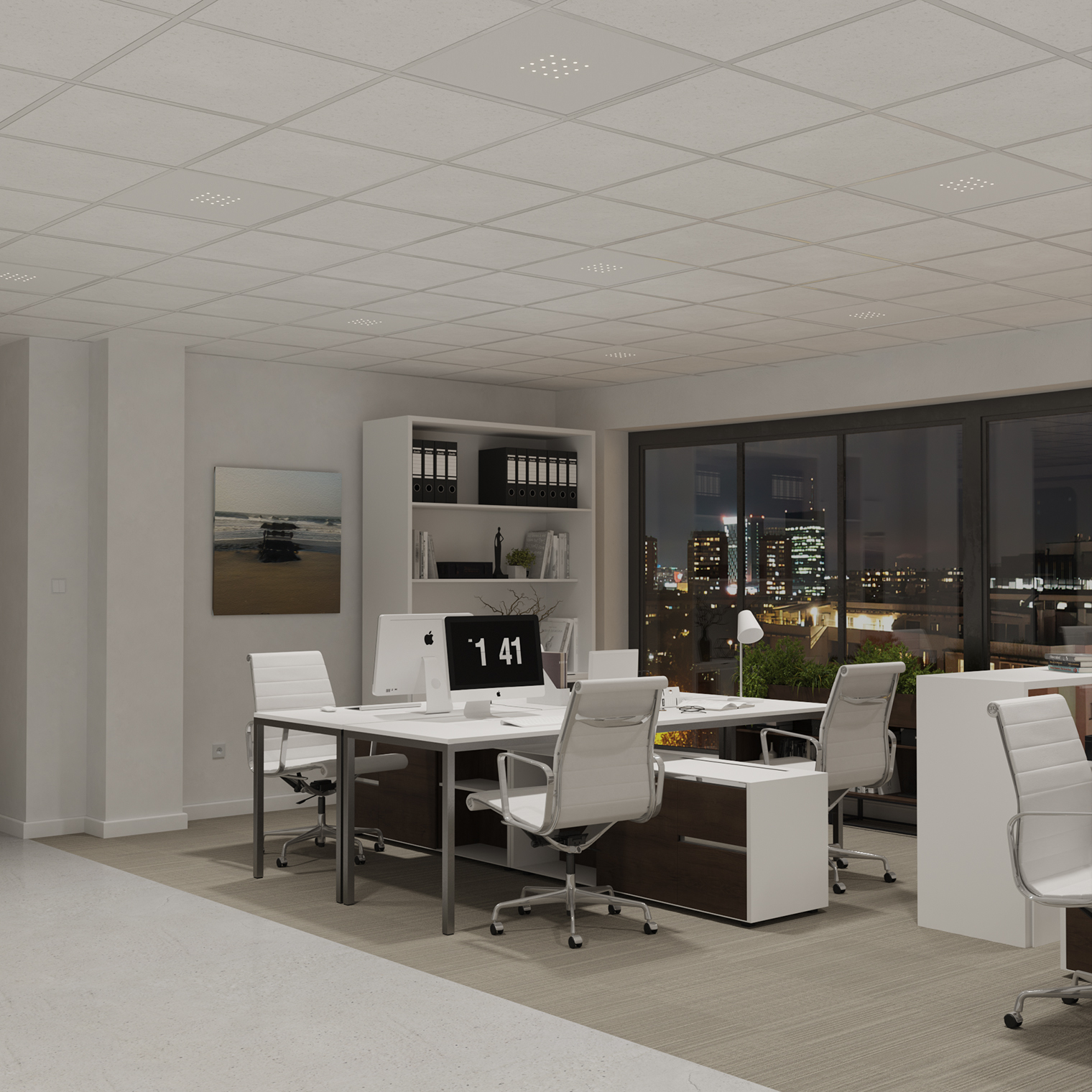

APPLICATION Applicable to modular and gypsum ceilings.

FEATURE The complex geometry of the lens enables colour mixing into dynamic white function.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Recessed ceiling
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
SELV
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1519111XY MATRIX 600 /840 595/595/30 600/600/30 4.00 3264 40° IP20 <16 37.0 4000 >80 50000h L80B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
