Product details

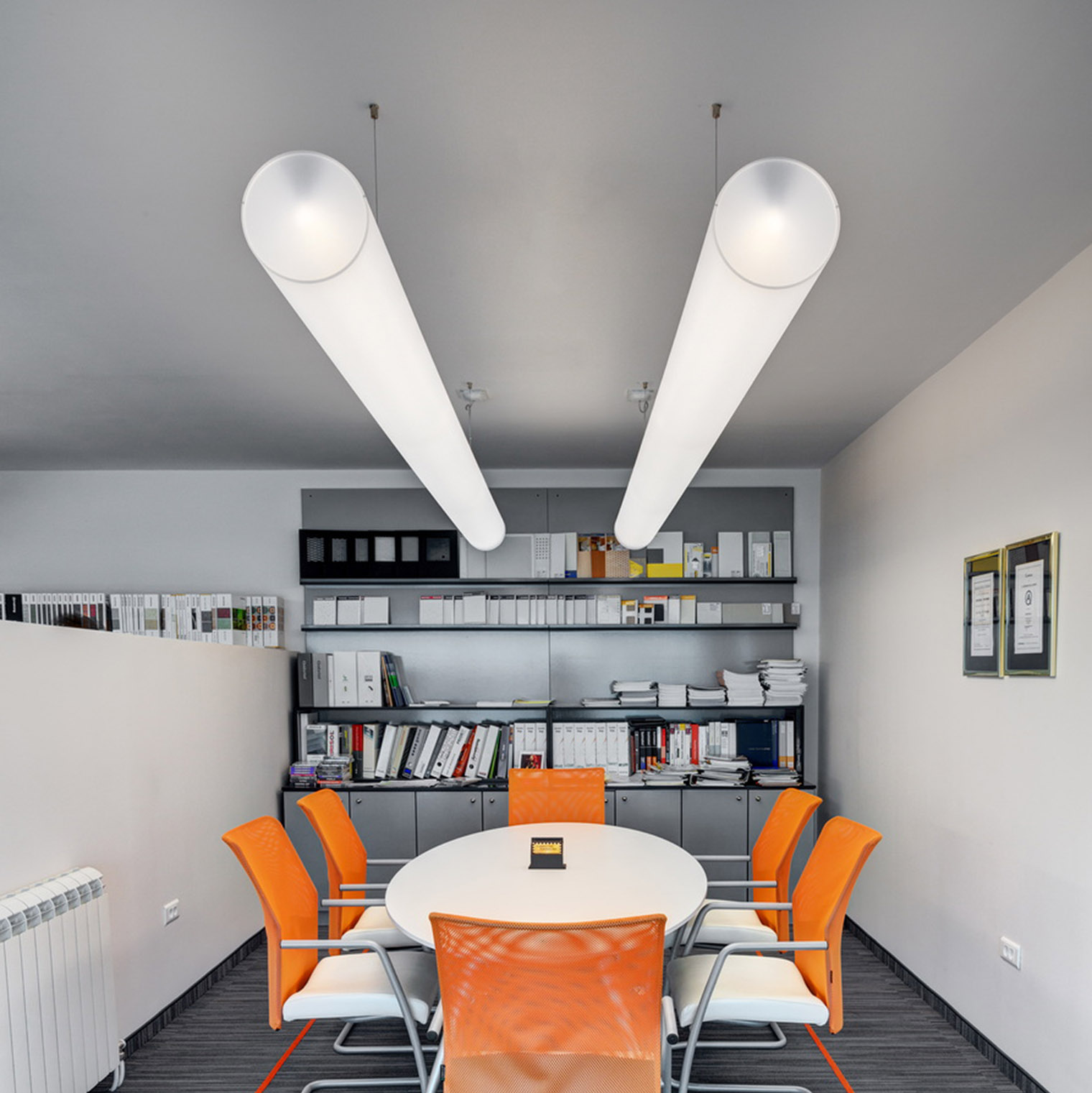

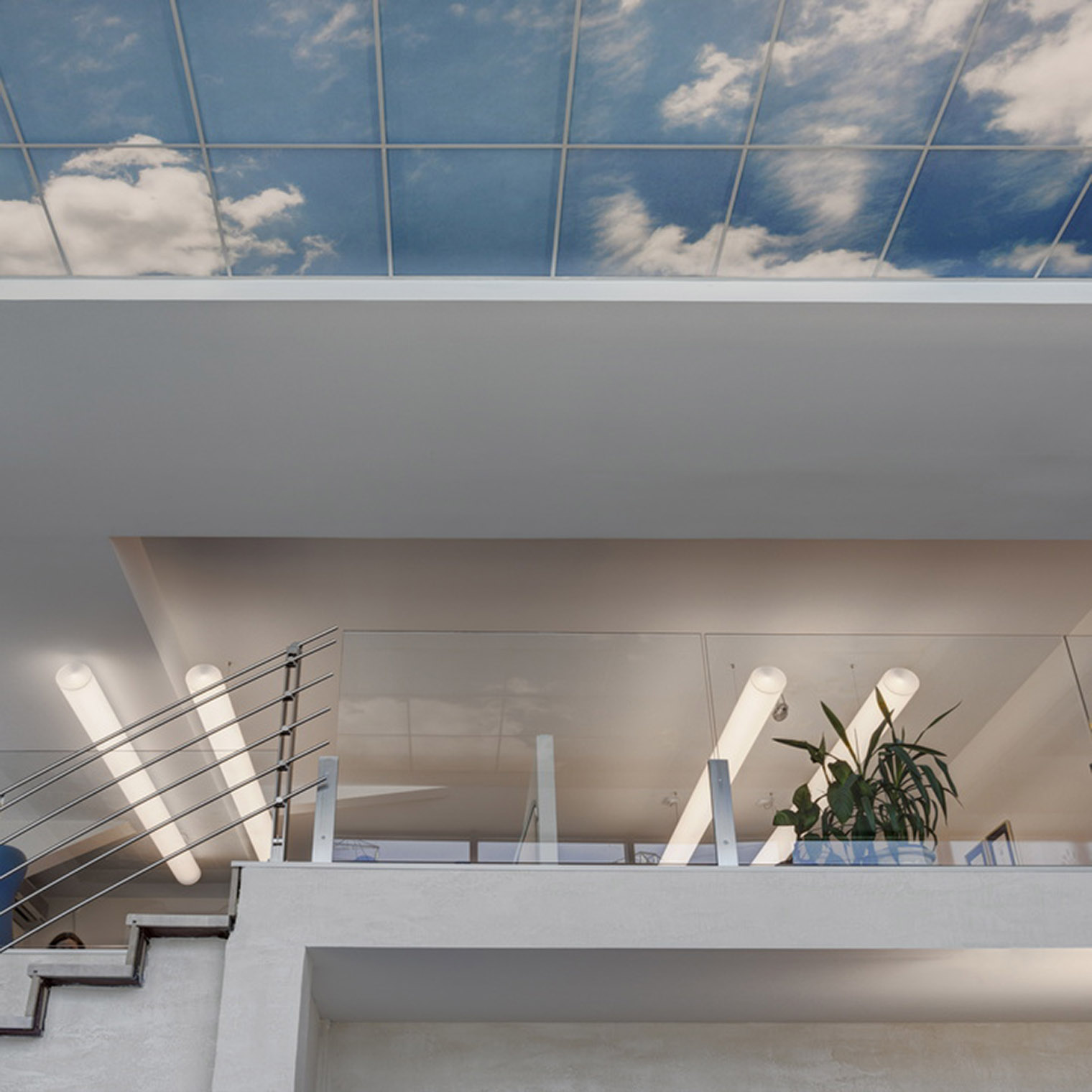

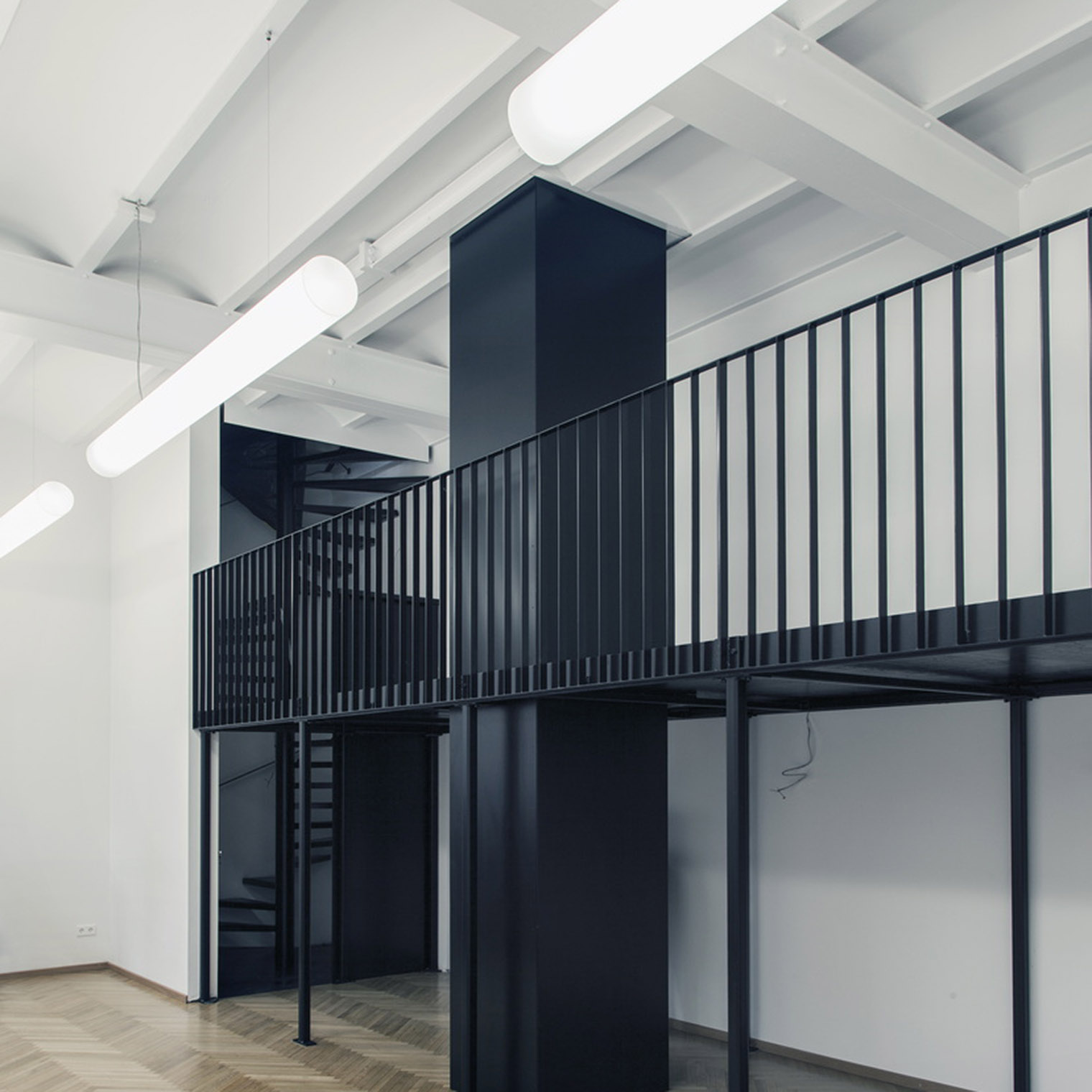

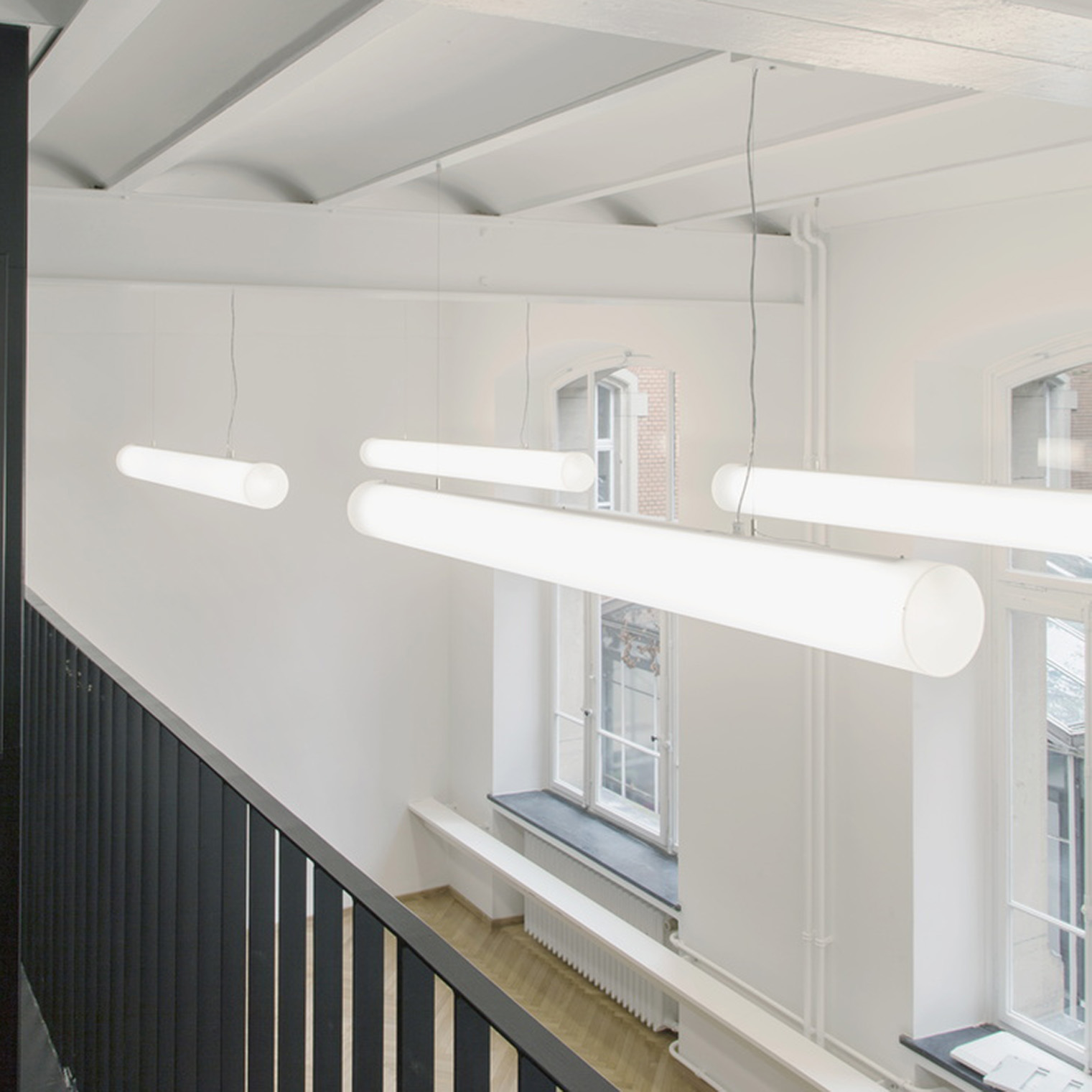

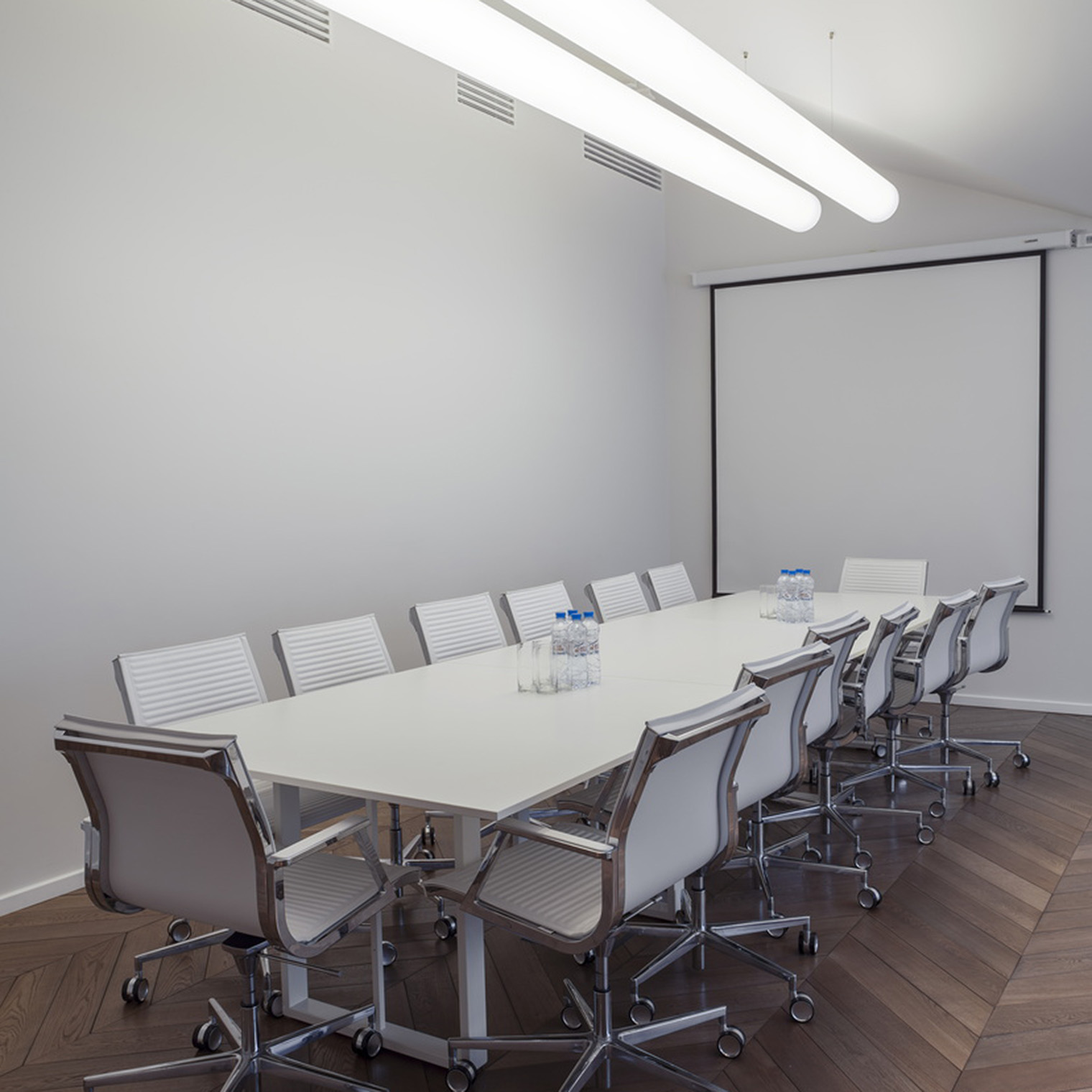

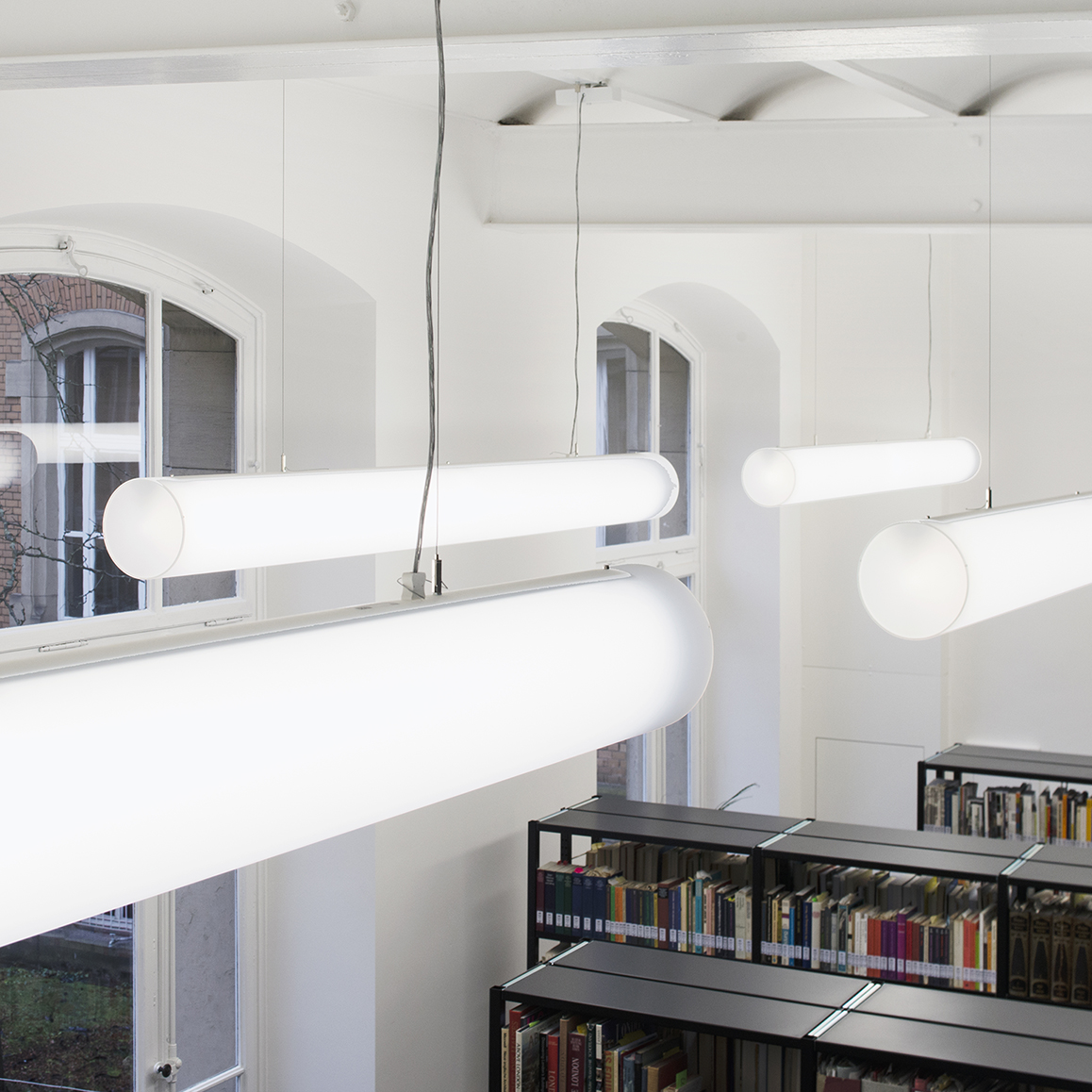

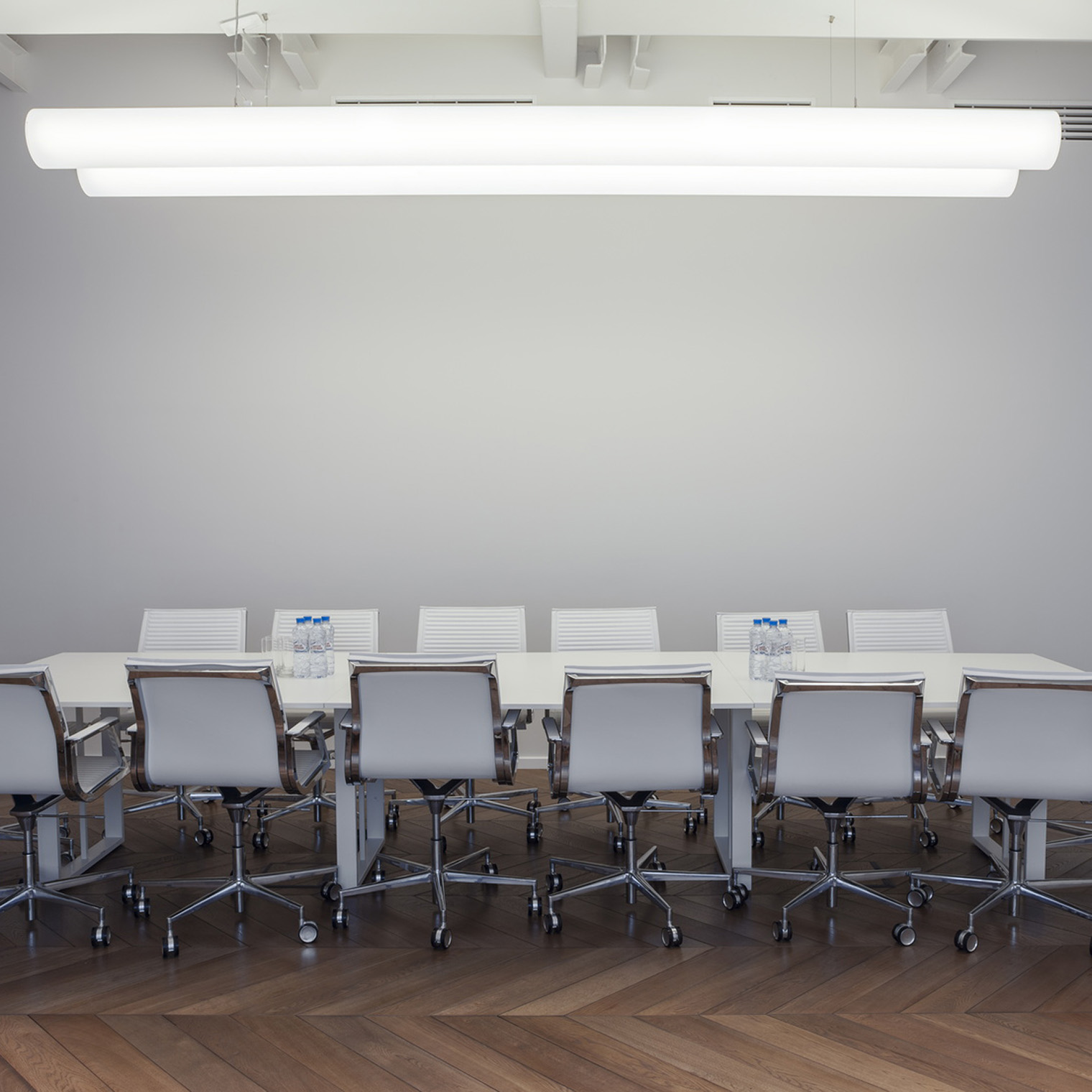

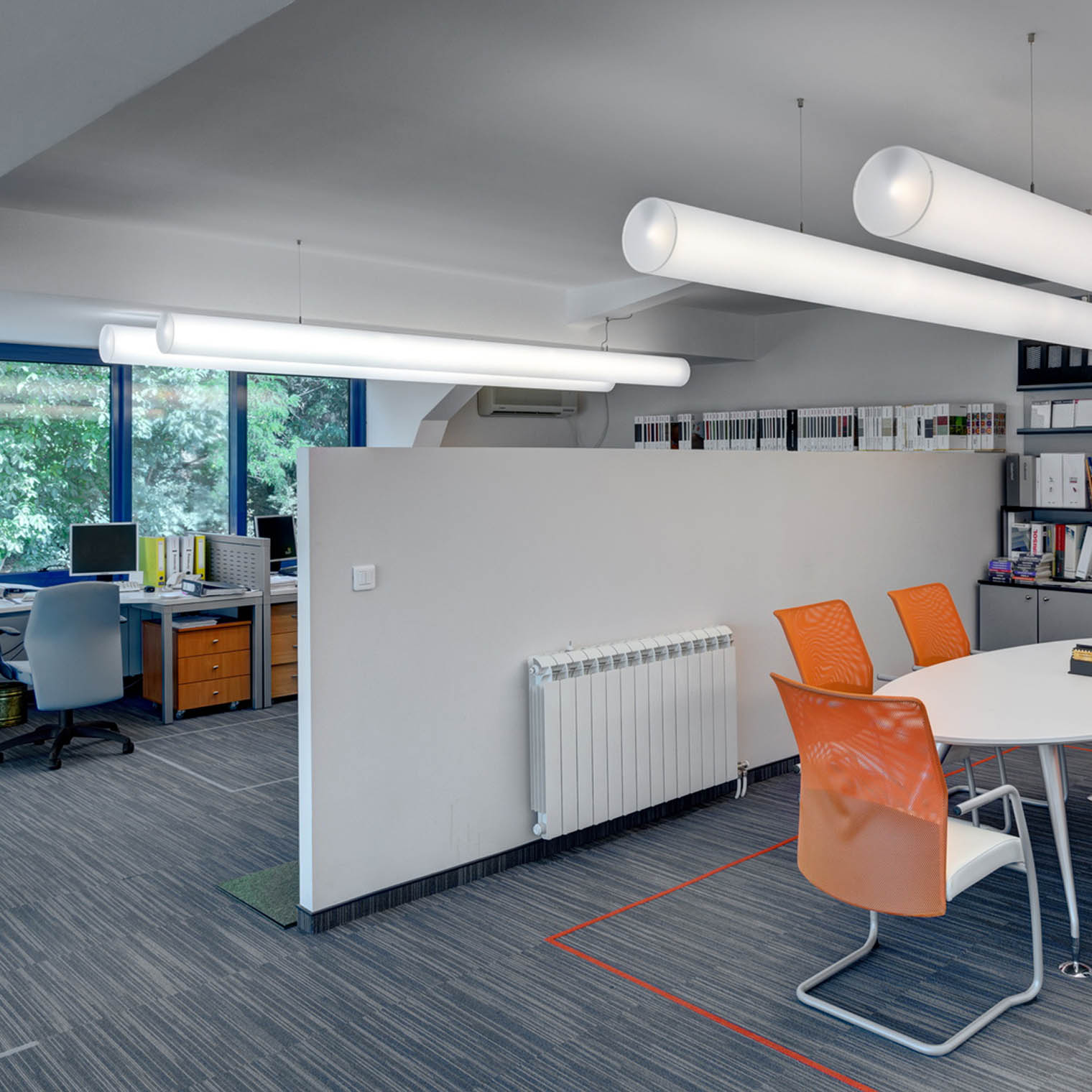

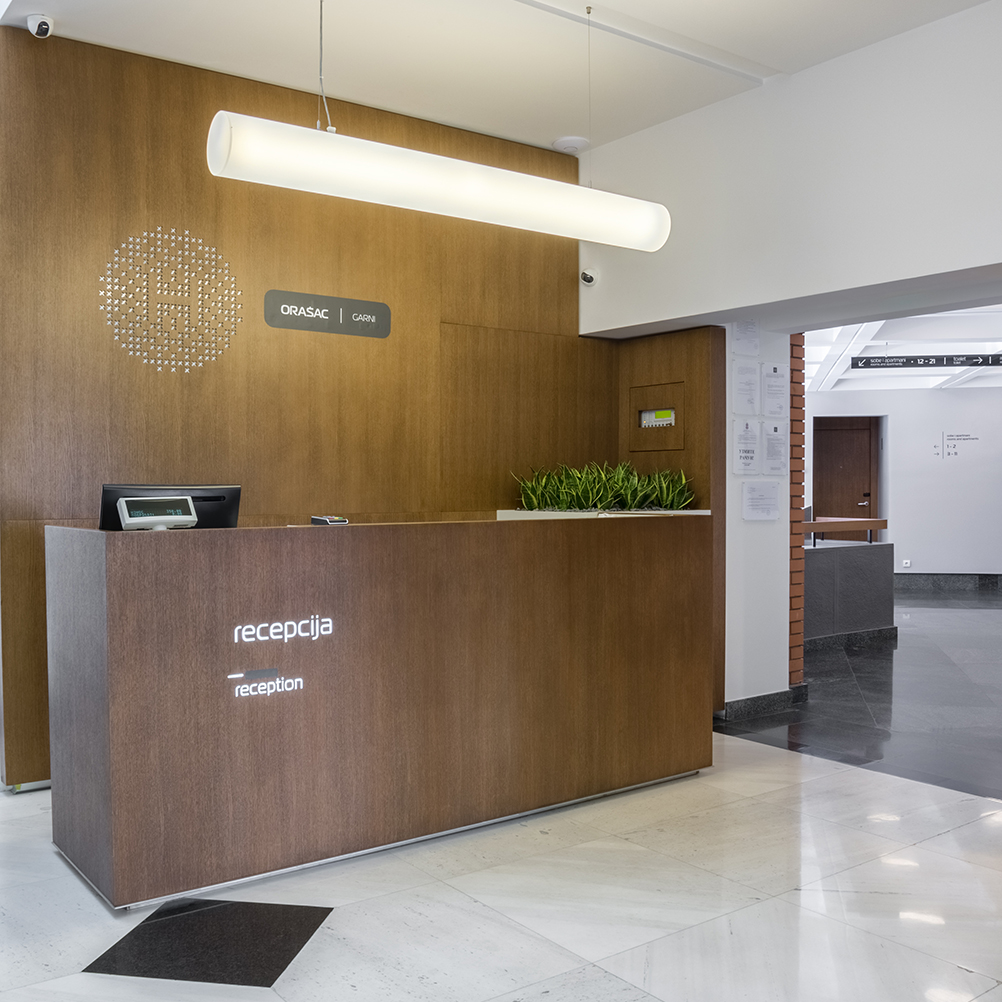

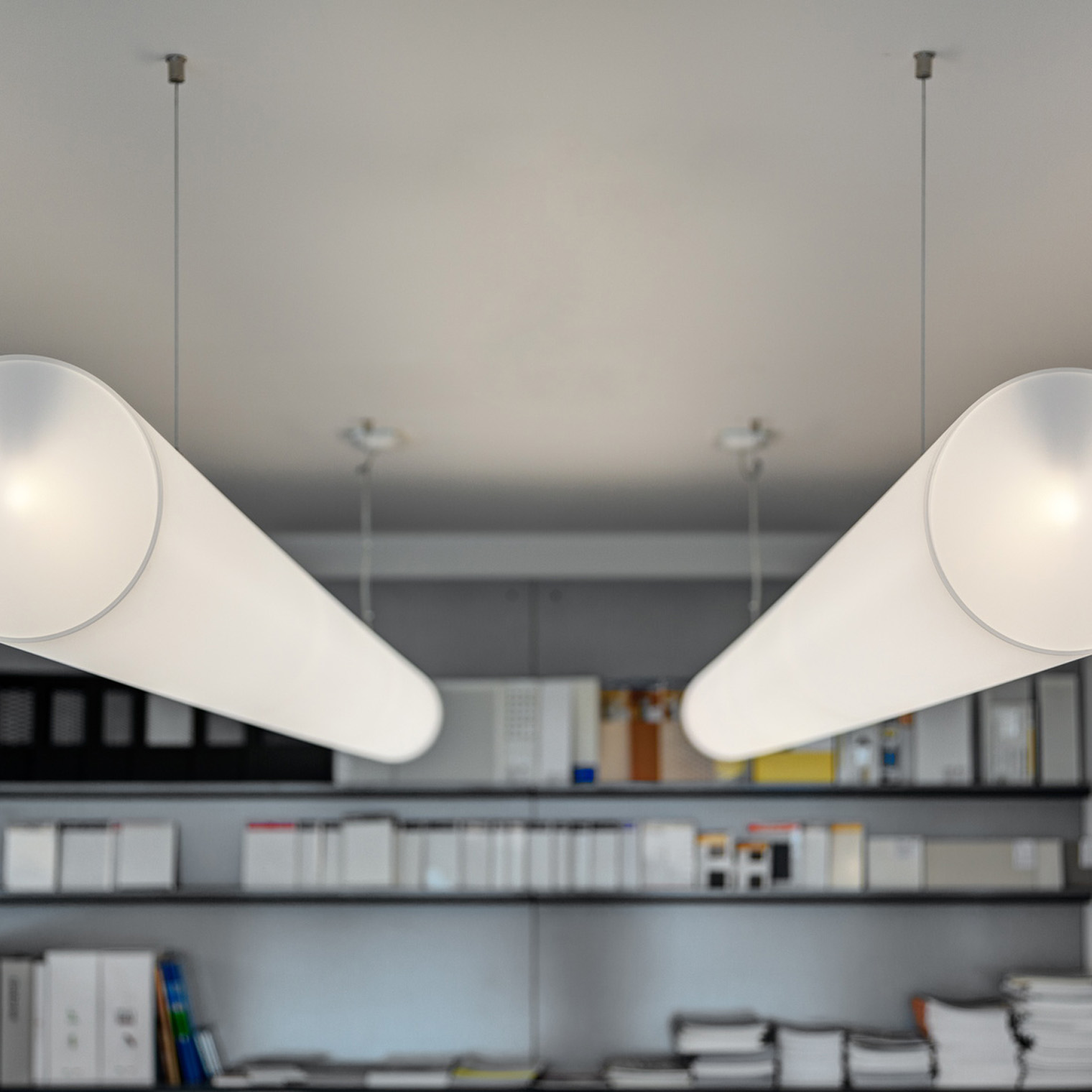

GENERAL Suspension luminaire for general illumination, appropriate for voluminous spaces.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING/OPTICS Luminaire of opal PMMA provides a uniform, diffused light.
APPLICATION Appropriate for different multiplication models.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL Dynamic White and other light colour temperatures available upon request.
Technical data
| Order code | Description | Ø/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2577421XY | TUBE 200 1300 /840 | 1300/200 | 3.00 | 5792 | IP42 | <22 | 45.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2577621XY | TUBE 200 1900 /840 | 1900/200 | 4.50 | 8688 | IP42 | <22 | 67.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2577821XY | TUBE 200 2500 /840 | 2500/200 | 6.00 | 11584 | IP42 | <22 | 89.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2577921XY | TUBE 200 3600 /840 | 3600/200 | 9.00 | 17376 | IP42 | <22 | 134.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
