Product details

GENERAL High optical and energy efficiency recessed downlighter for accent illumination.

OPTICS Micro downlight reflector with complex surfaces geometry of micro facets allows precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort .
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing is made of aluminium, with a visible frame. Finish: epoxy polyester powder coating. Fine structured texture. Other colors available upon request.

APPLICATION Applicable to all types of suspended ceilings that can be cut through.

ADDITIONAL Dynamic White and other light color temperatures available upon request.

Technical data

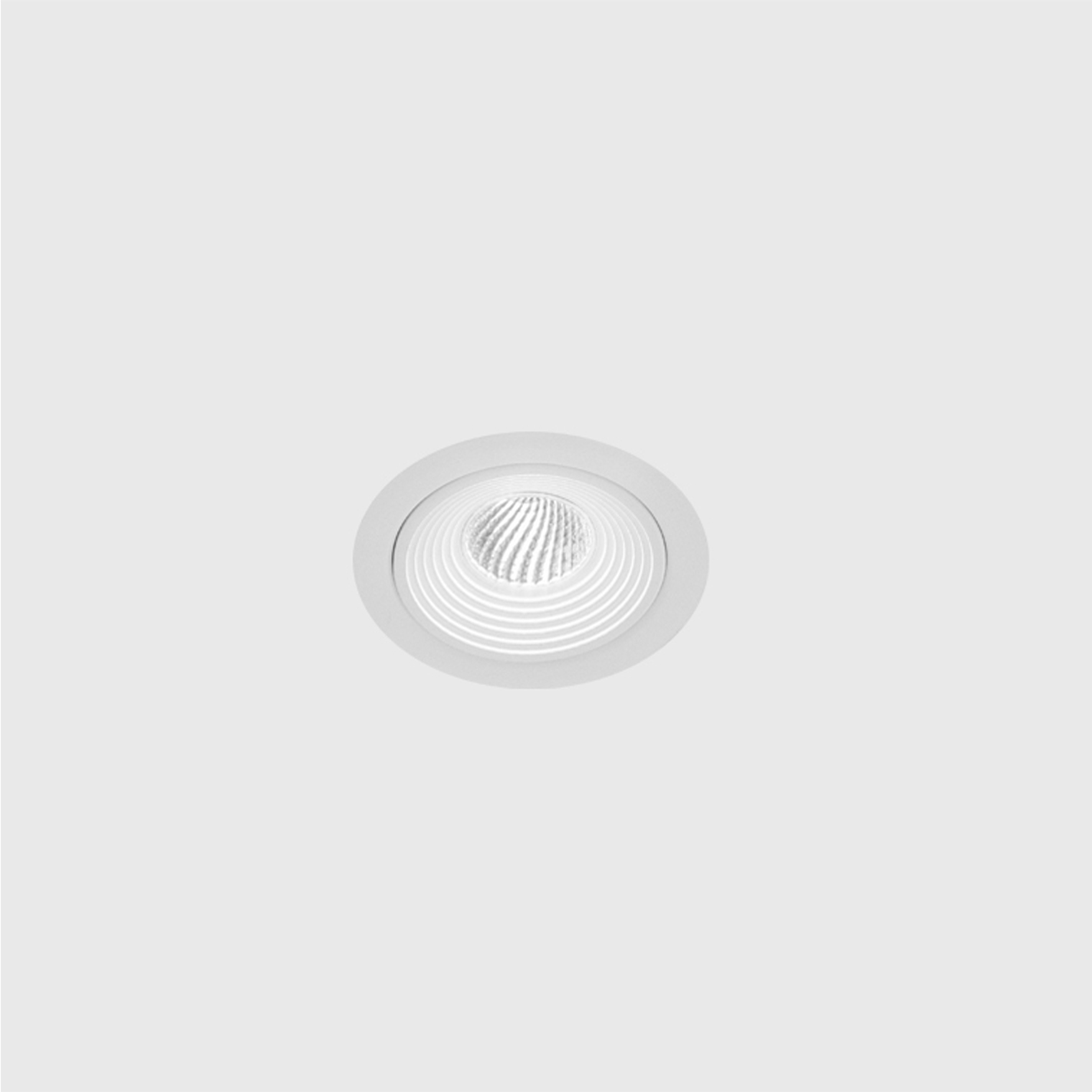

White finestructured paint

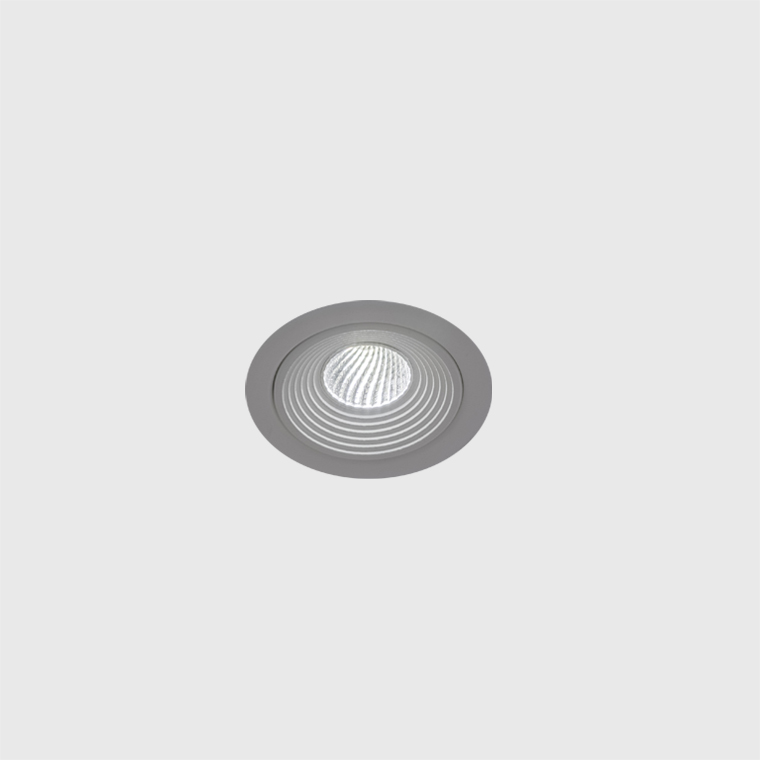

Gray finestructured paint
Black finestructured paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] Ø/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1511111XY MICRO 35dg /840 60/95 50/100 0.20 483 35° IP20 <6 5.0 4000 >80 50000h L80B10 /SCDM3
1511112XY MICRO 55dg /840 60/87 50/90 0.20 517 55° IP20 <16 5.0 4000 >80 50000h L80B10 /SCDM3
1511113XY MICRO 75dg /840 60/82 50/85 0.20 537 75° IP20 <22 5.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
