Product details

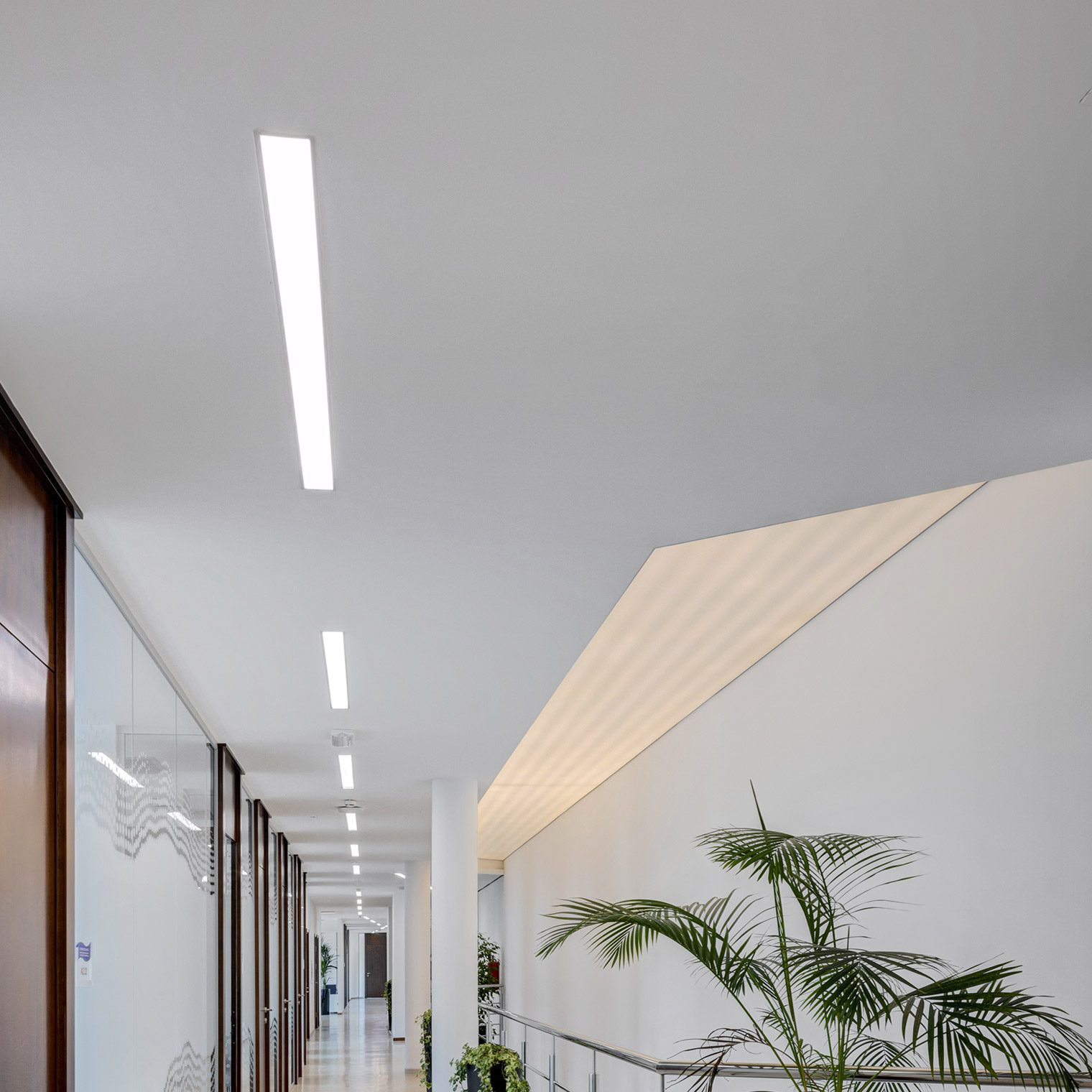

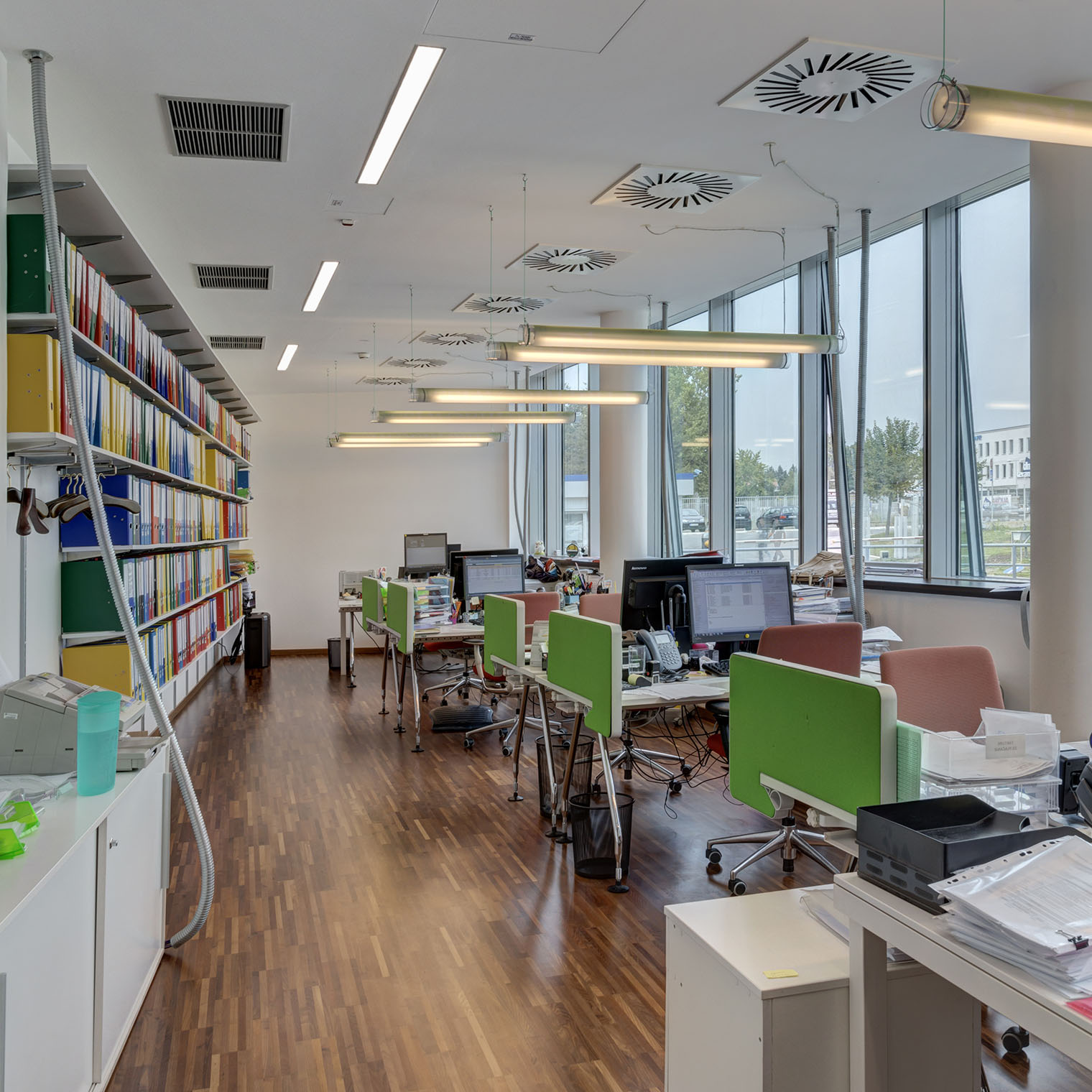

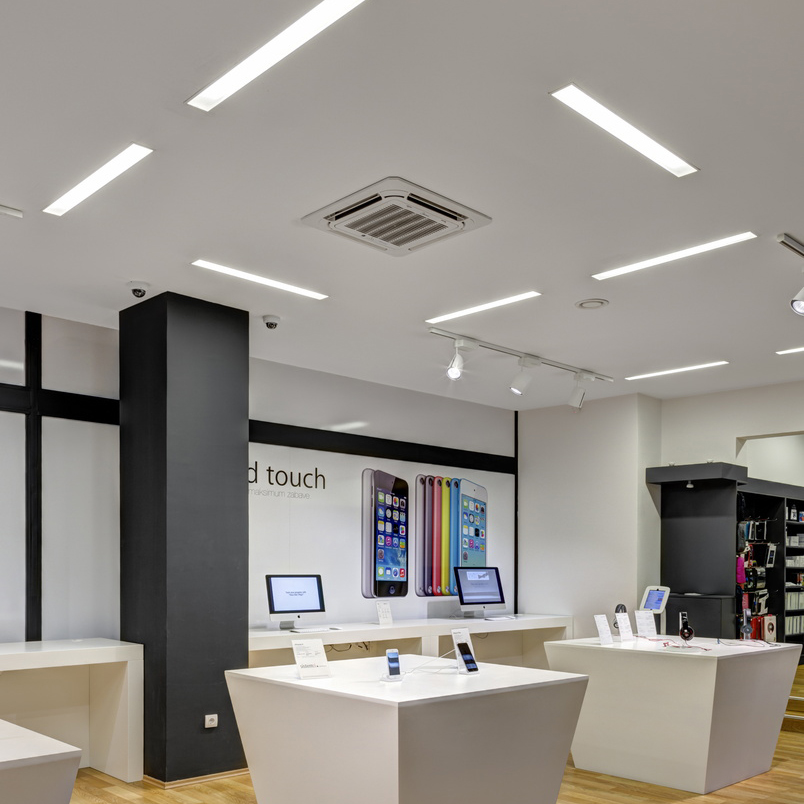

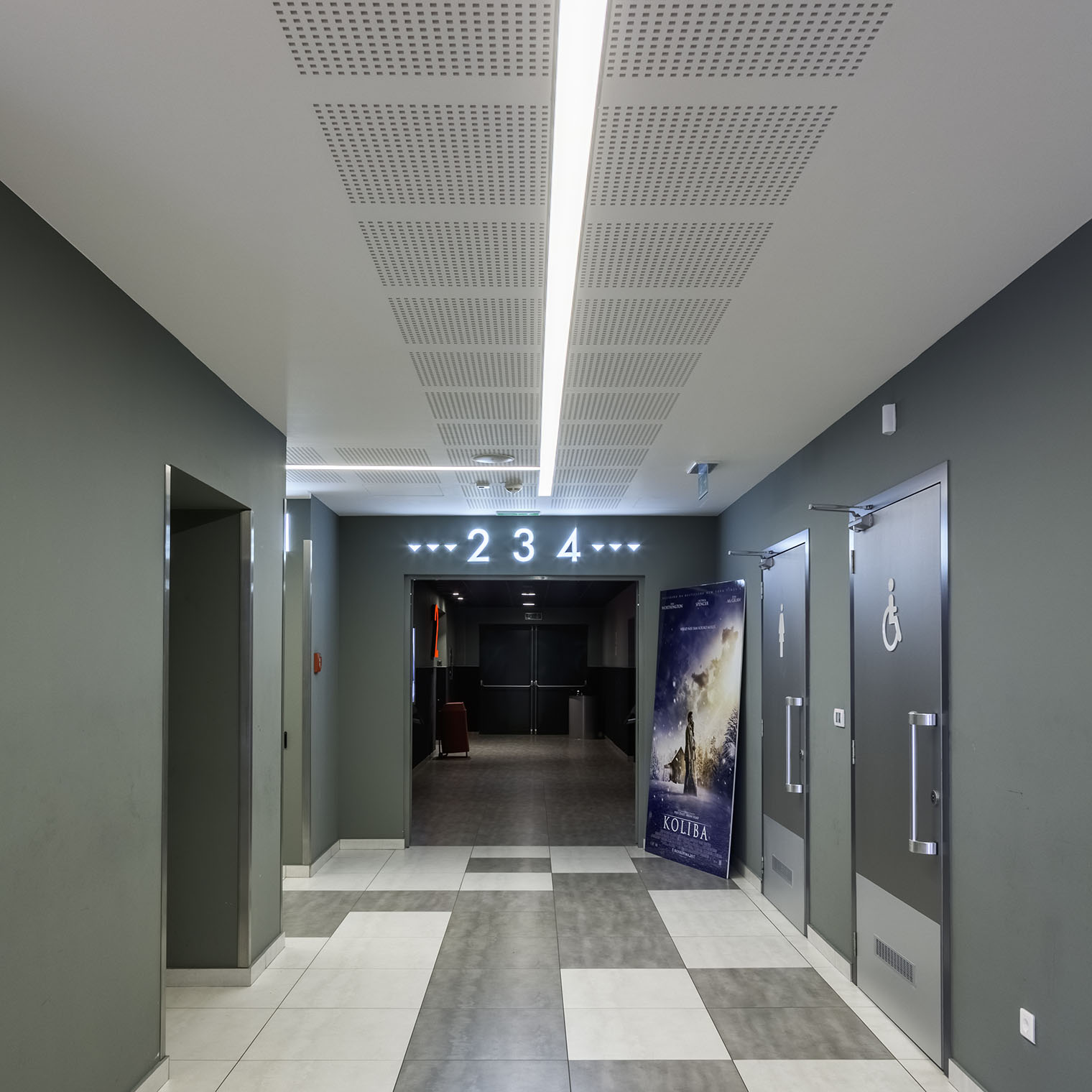

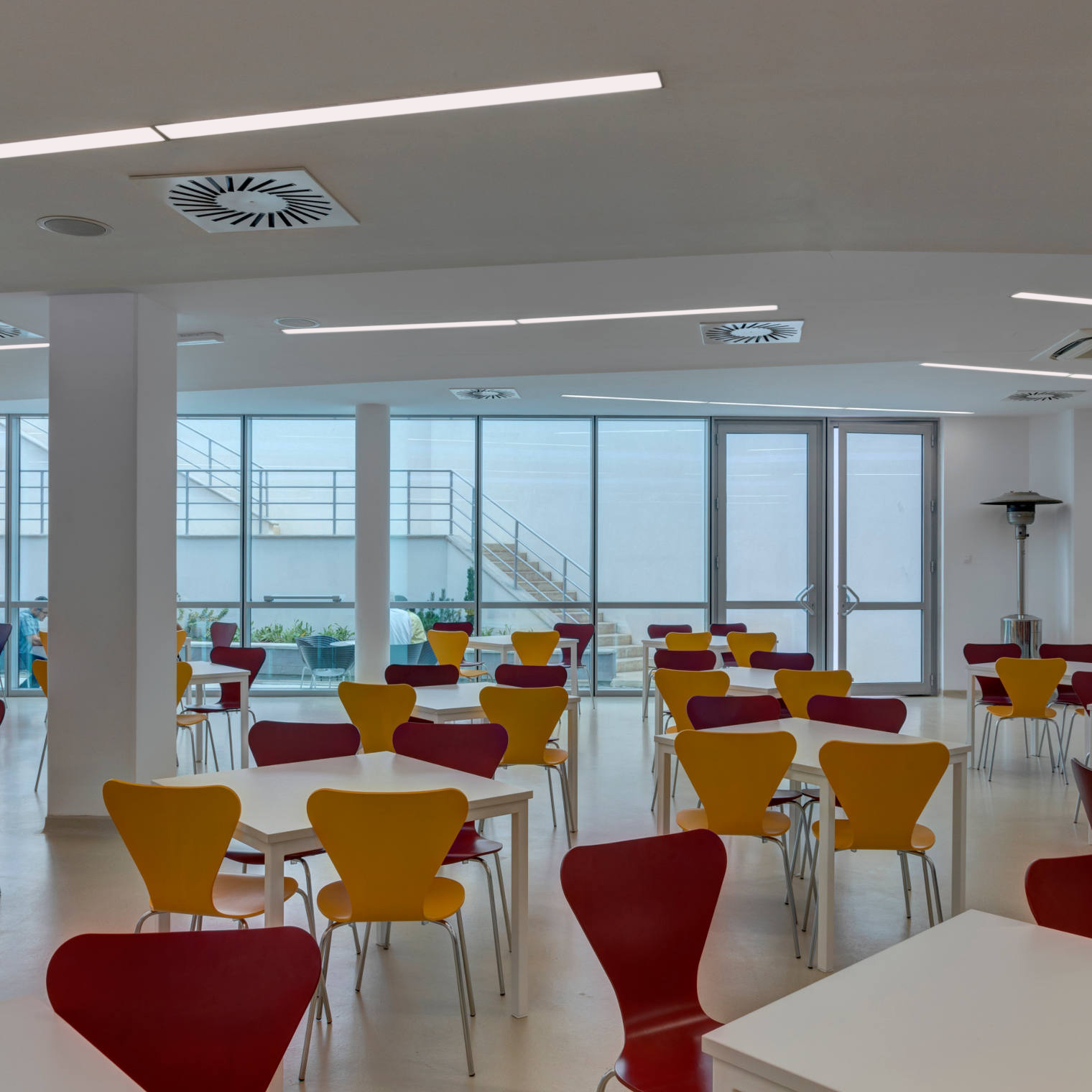

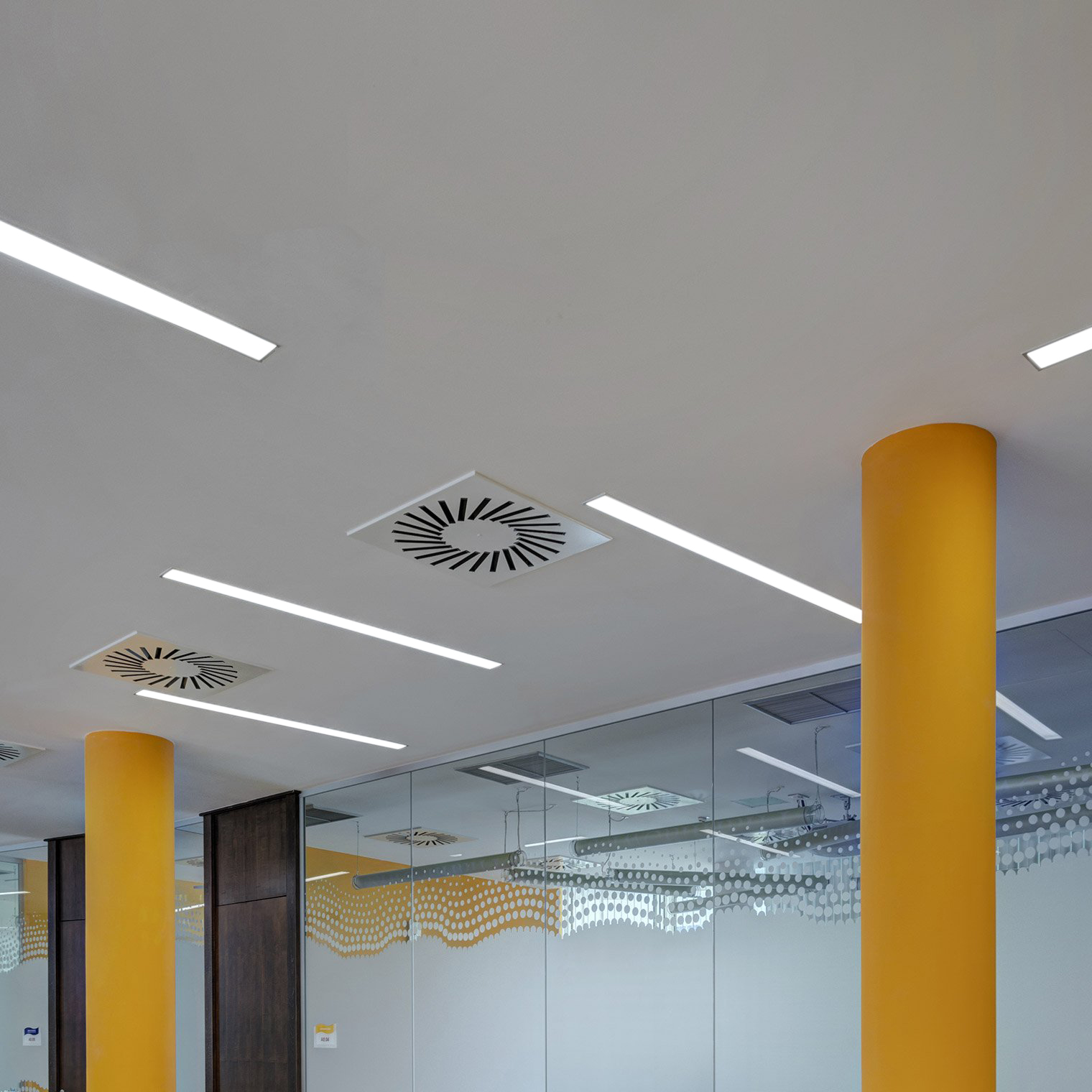

GENERAL High efficiency recessed linear luminaire for direct illumination.

OPTICS The opal diffuser provides a uniform diffusing light and uniformly illuminated surface, without visible light sources.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing made of extruded aluminium. Finish: anodisation in natural aluminium colour or polyester powder coating. Fine structured texture. Other colours are available upon request.

APPLICATION Applicable to monolith suspended ceilings. FEATURES Possibilty to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.

Technical data

Recessed ceiling
White finestructured paint
Anodised aluminium
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1223221XY INSERT M DO 600 /840 HE 591/100/100 581/85/140 1.90 827 IP40 <22 7.0 4000 >80 54000h L80B10 /SDCM 3
1223241XY INSERT M DO 600 /840 H0 591/100/100 581/85/140 1.90 1474 IP40 <25 13.0 4000 >80 54000h L80B10 /SDCM 3
1223321XY INSERT M DO 900 /840 HE 877/100/100 867/85/140 2.60 1241 IP40 <22 11.0 4000 >80 54000h L80B10 /SDCM 3
1223341XY INSERT M DO 900 /840 HO 877/100/100 867/85/140 2.60 2211 IP40 <25 20.0 4000 >80 54000h L80B10 /SDCM 3
1223421XY INSERT M DO 1200 /840 HE 1163/100/100 1153/85/140 3.30 1655 IP40 <22 14.0 4000 >80 54000h L80B10 /SDCM 3
1223441XY INSERT M DO 1200 /840 HO 1163/100/100 1153/85/140 3.30 2948 IP40 <25 27.0 4000 >80 54000h L80B10 /SDCM 3
1223521XY INSERT M DO 1500 /840 HE 1449/100/100 1439/85/140 4.10 2068 IP40 <22 18.0 4000 >80 54000h L80B10 /SDCM 3
1223541XY INSERT M DO 1500 /840 HO 1449/100/100 1439/85/140 4.10 3685 IP40 <25 33.0 4000 >80 54000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
