NEO SPOT TB INT /S

Product details

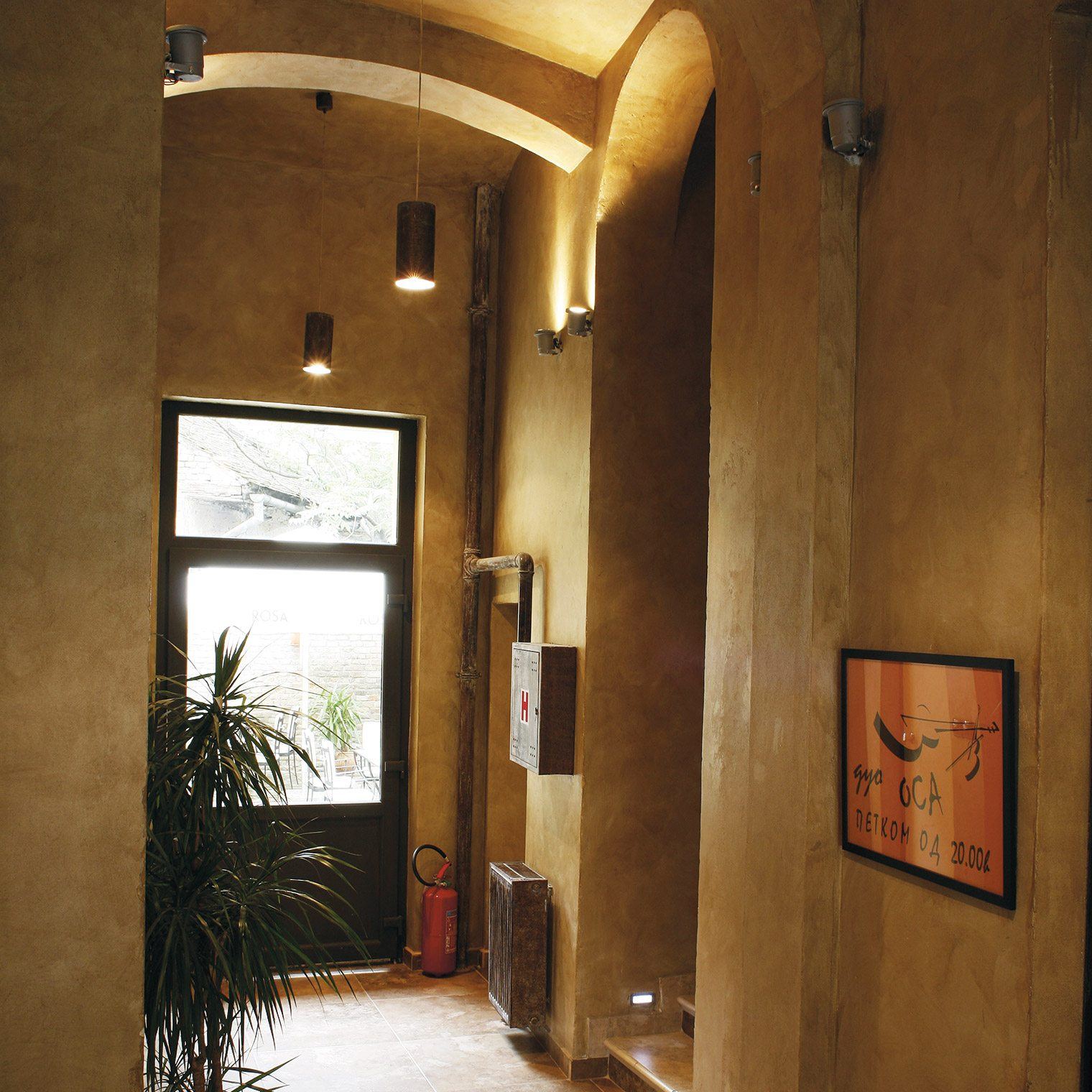

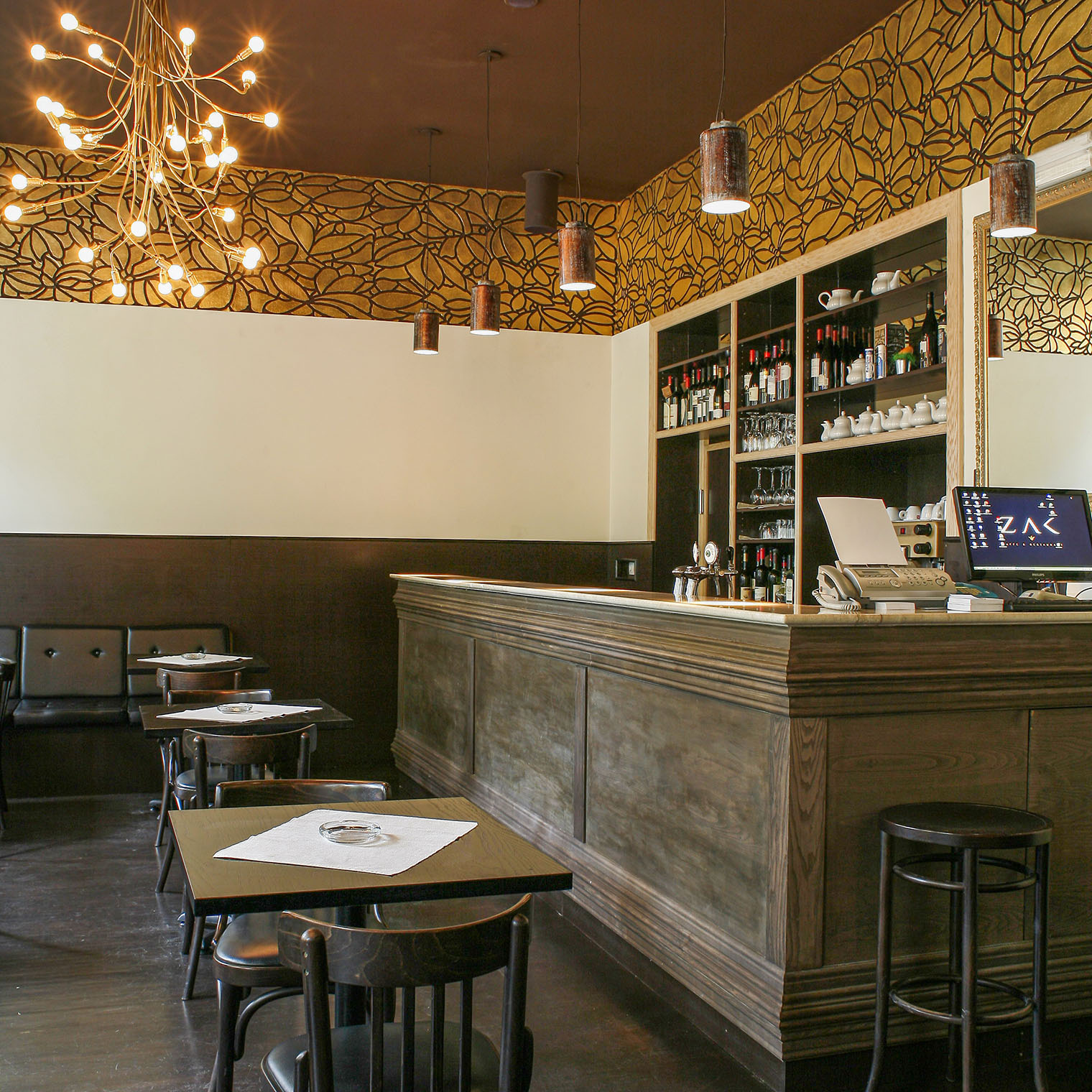

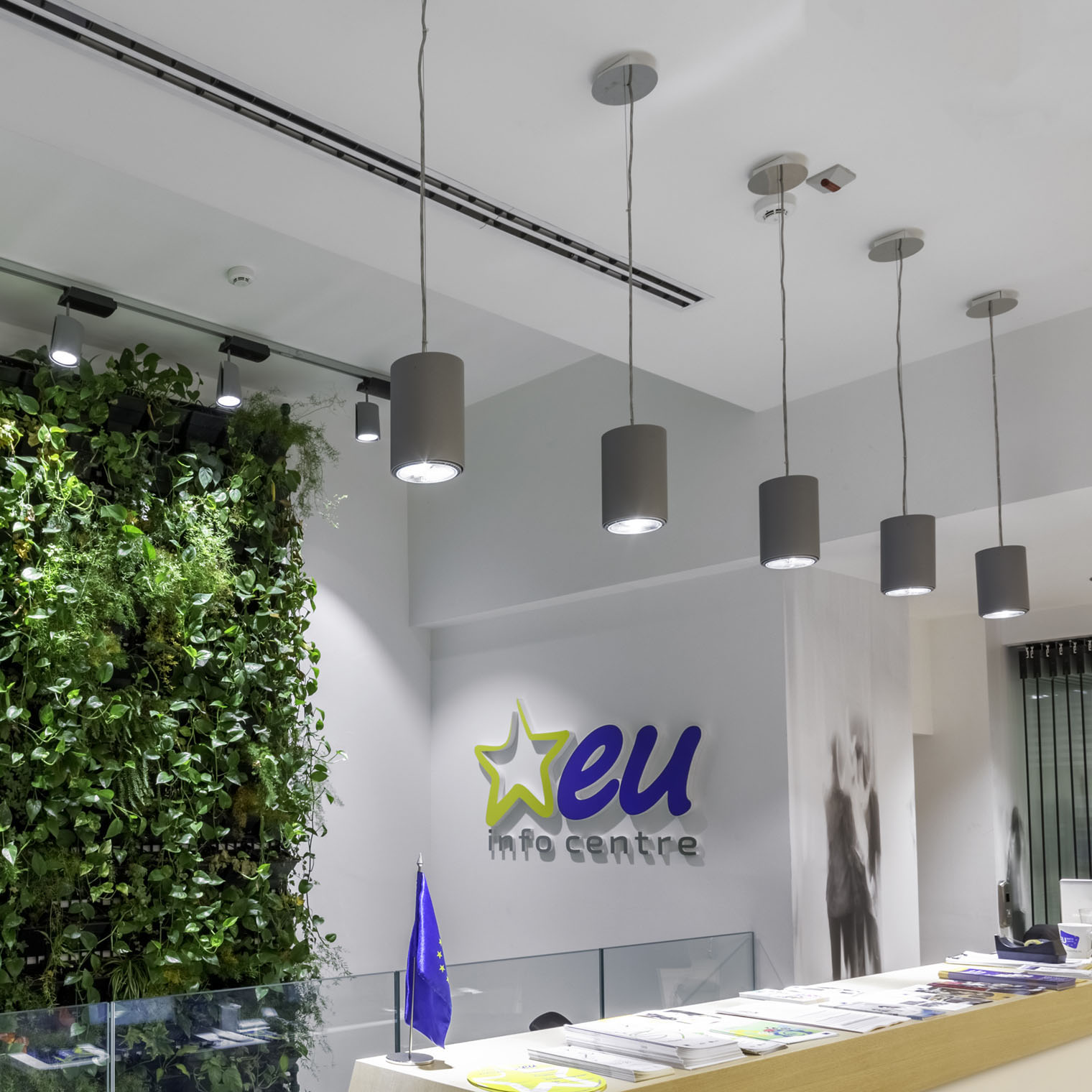

GENERAL Suspension luminaire for direct illumination.

HOUSING Housing of aluminium tube with epoxy polyester powder finish. Fine structured texture.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

EQUIPMENT Supplied with suspension kit.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Suspended direct lighting
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2723112XY NEO SPOT TB INT /S 190-800 /830 130/190 1.00 706 IP20 <16 9.0 3000 >80 50000h L70B50 /SDCM 3
2723117XY NEO SPOT TB INT /S 190-2000 /840 130/190 1.00 1766 IP20 <19 18.0 4000 >80 50000h L70B50 / SDCM 3
2723122XY NEO SPOT TB INT /S 450-800 /830 130/450 2.50 706 IP20 <16 9.0 3000 >80 50000h L70B50 /SDCM3
2723127XY NEO SPOT TB INT /S 450-2000 /840 130/450 2.50 1766 IP20 <19 18.0 4000 >80 50000h L70B50 /SDCM3
2723132XY NEO SPOT TB INT /S 900-800 /830 130/900 3.50 706 IP20 <16 9.0 3000 >80 50000h L70B50 /SDCM3
2723137XY NEO SPOT TB INT /S 900-2000 /840 130/900 3.50 1766 IP20 <19 18.0 4000 >80 60000h L70B50 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
