ORIEN CDP 2

Product details

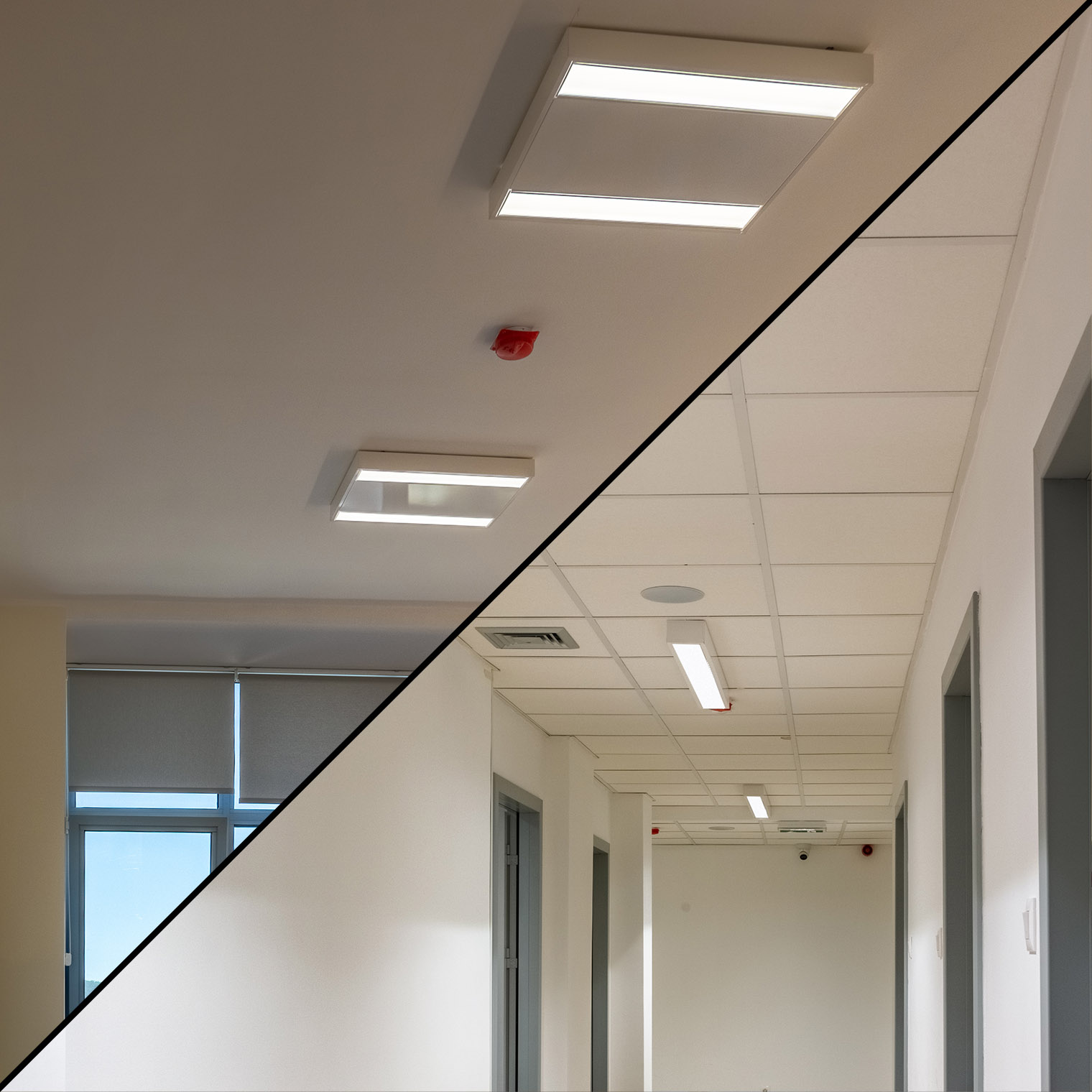

GENERAL High efficiency surface mounted luminaire for direct high-quality illumination of office spaces. Full visual comfort ensured with the latest optical and electrical components.

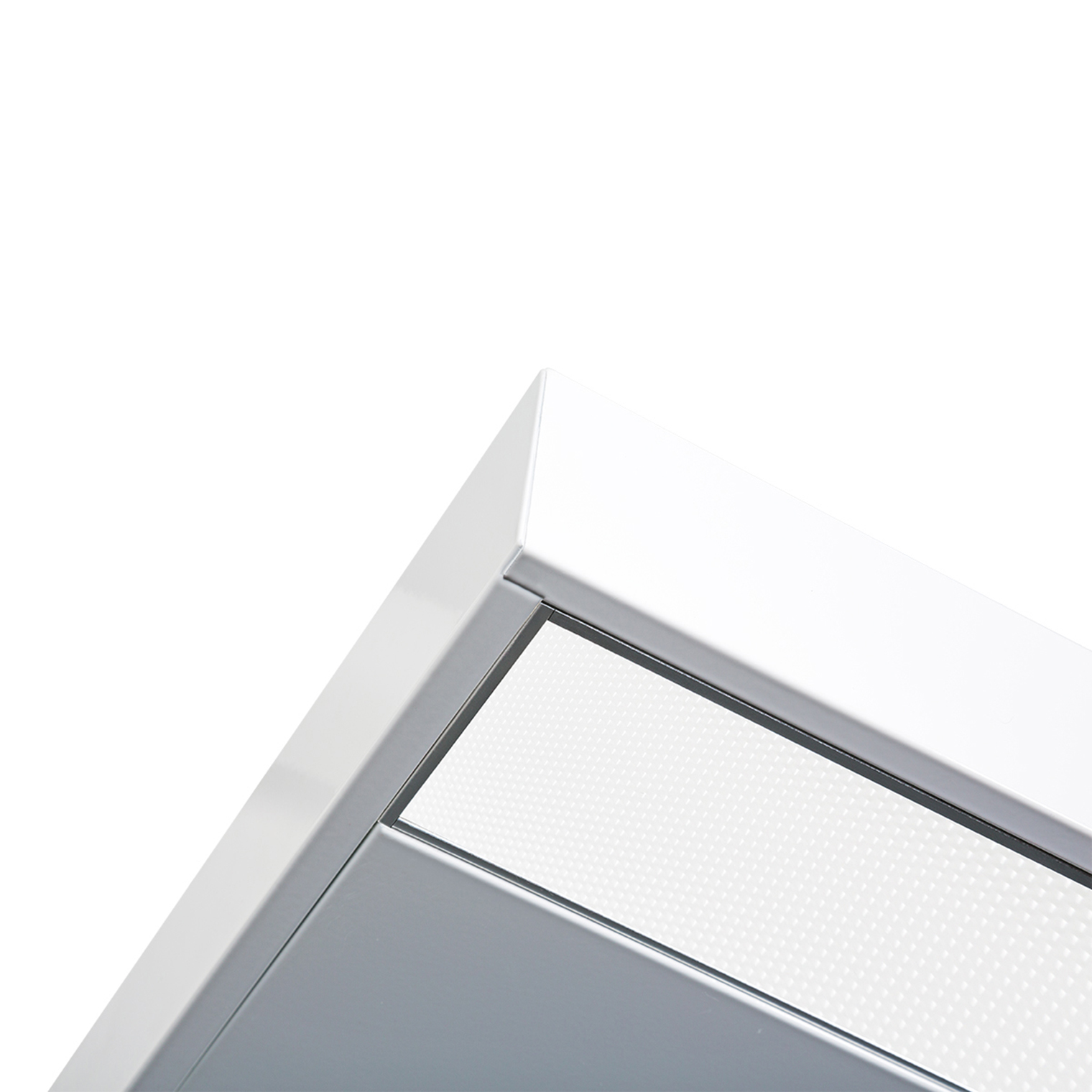

OPTICS Lateral louver of bright aluminium for increased energy efficiency. Highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. The opal foil provides a uniform diffused light and a uniformly illuminated surface, without visible light sources for full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING This luminaire is made of a 0.6mm thick steel sheet, with a special reflective white epoxy polyester powder coating.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.

Technical data

Ceiling mounted
White highly reflective paint
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2013121XY ORIEN CDP 2 600 HO /840 600/466/60 4.50 3972 IP40 <19 36.0 4000 >80 60000h L80B10 /SDCM3
2013122XY ORIEN CDP 2 600 HE /840 600/466/60 4.50 2776 IP40 <16 24.0 4000 >80 60000h L80B10 /SDCM3
2013141XY ORIEN CDP 2 1200 HO /840 1190/125/75 4.50 3972 IP40 <22 36.0 4000 >80 60000h L80B10 /SDCM3
2013142XY ORIEN CDP 2 1200 HE /840 1190/125/75 4.50 2776 IP40 <19 24.0 4000 >80 60000h L80B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
