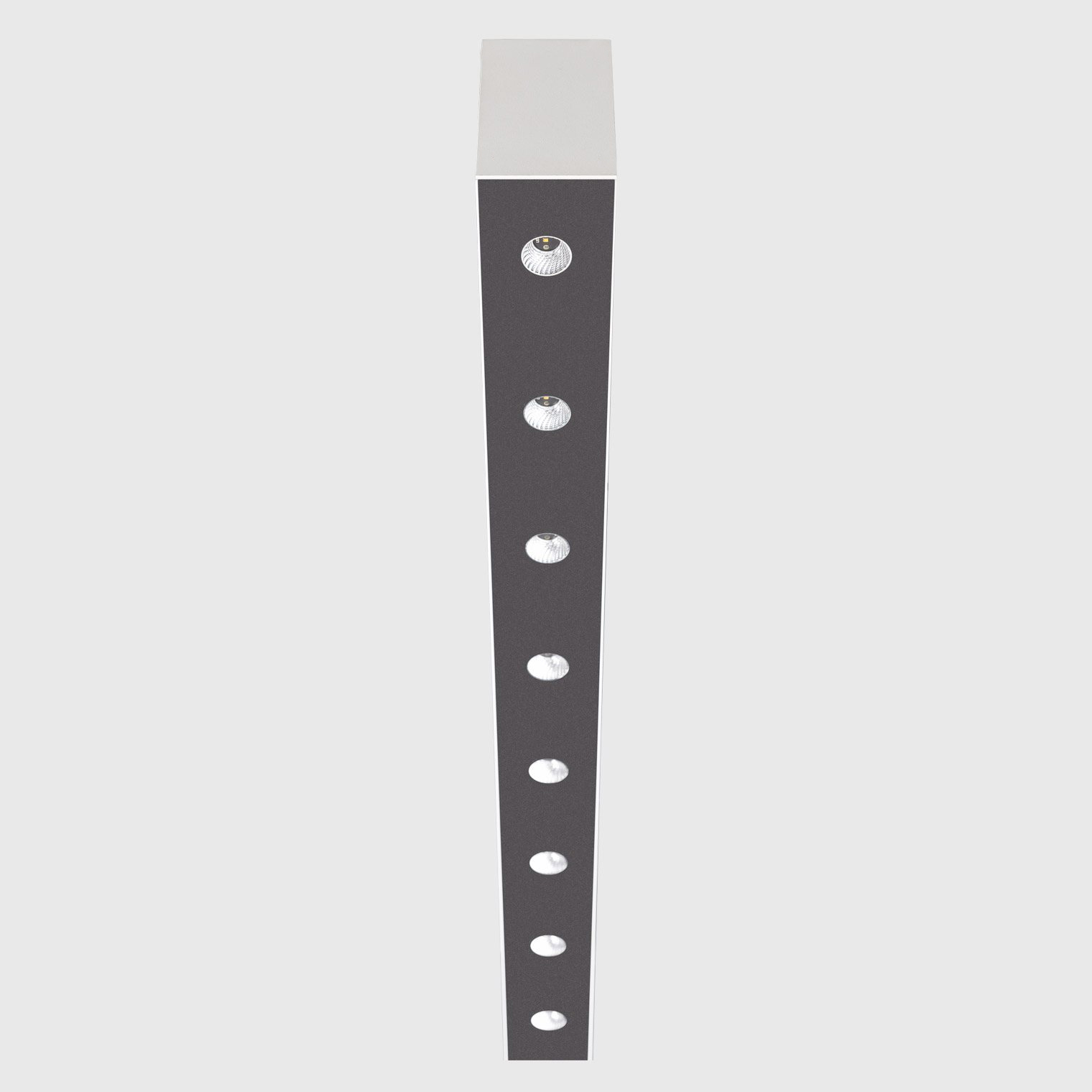

PRIMA S MD /S
Product details
GENERAL High efficiency suspension luminaire for direct high quality illumination of office spaces.
OPTICS Linear multispot downlighter reflectors with complex surfaces geometry of micro facets allow precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort (UGR < 19).
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
FEATURES Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL To be ordered separately: EM module, enabling operation in the case of a power failure, Dynamic White and other light colour temperatures.
Technical data
| Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* |
|
IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2815111XY | PRIMA S MD /S 900 35dg/840 | 846/60/110 | 2.80 | 1949 | 35° | IP20 | <6 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815112XY | PRIMA S MD /S 900 55dg/840 | 846/60/110 | 2.80 | 2087 | 55° | IP20 | <13 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815113XY | PRIMA S MD /S 900 75dg/840 | 846/60/110 | 2.80 | 2167 | 75° | IP20 | <19 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815121XY | PRIMA S MD /S 1200 35dg/840 | 1126/60/110 | 3.60 | 2599 | 35° | IP20 | <6 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815122XY | PRIMA S MD /S 1200 55dg/840 | 1126/60/110 | 3.60 | 2783 | 55° | IP20 | <13 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815123XY | PRIMA S MD /S 1200 75dg/840 | 1126/60/110 | 3.60 | 2889 | 75° | IP20 | <19 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815131XY | PRIMA S MD /S 1500 35dg/840 | 1406/60/110 | 4.30 | 3249 | 35° | IP20 | <6 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815132XY | PRIMA S MD /S 1500 55dg/840 | 1406/60/110 | 4.30 | 3479 | 55° | IP20 | <13 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815133XY | PRIMA S MD /S 1500 75dg/840 | 1406/60/110 | 4.30 | 3611 | 75° | IP20 | <19 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815141XY | PRIMA S MD /S 2400 35dg/840 | 2248/60/110 | 7.00 | 5198 | 35° | IP20 | <6 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815142XY | PRIMA S MD /S 2400 55dg/840 | 2248/60/110 | 7.00 | 5566 | 55° | IP20 | <13 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 2815143XY | PRIMA S MD /S 2400 75dg/840 | 2248/60/110 | 7.00 | 5778 | 75° | IP20 | <19 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
