SLIM LINE TLS /C
Product details

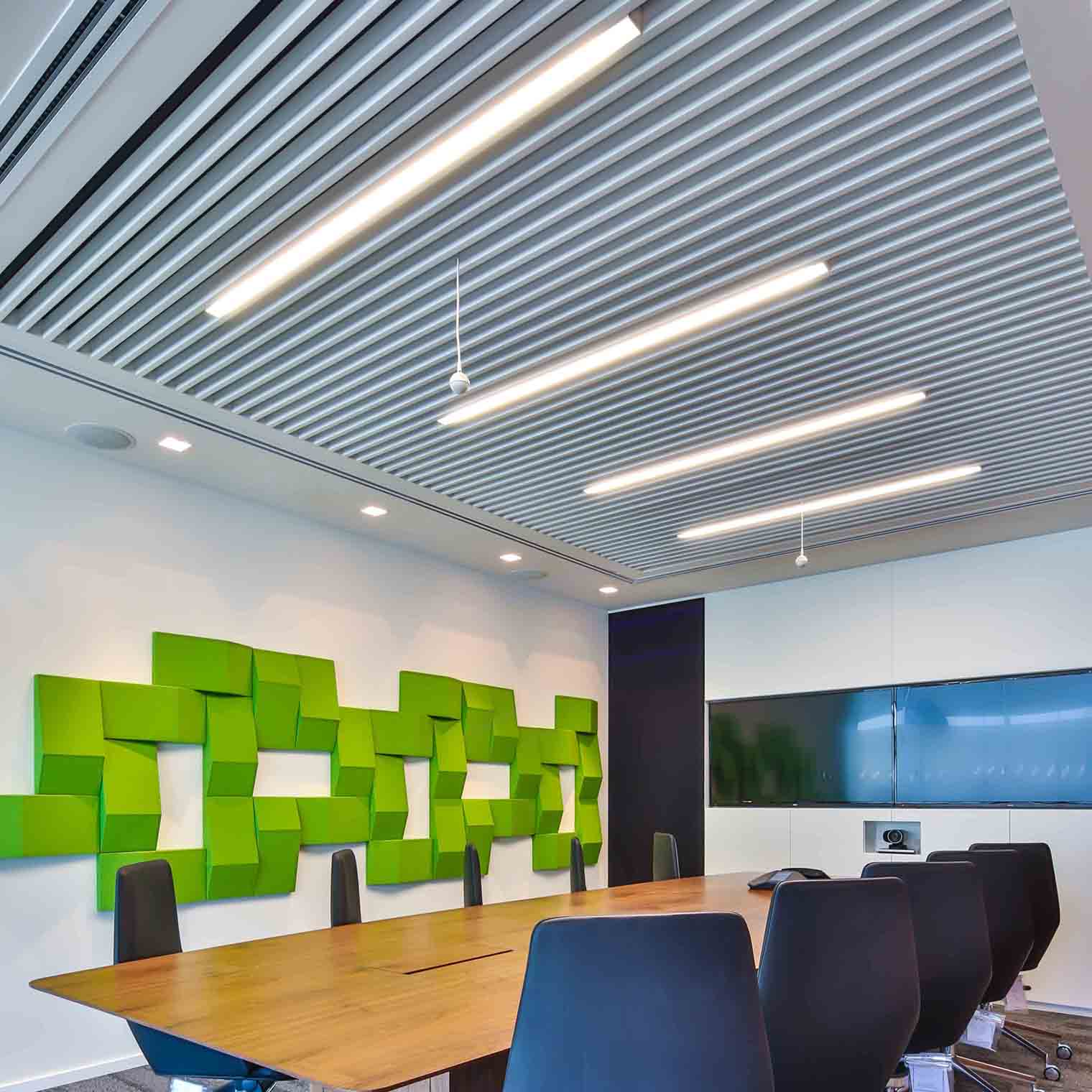

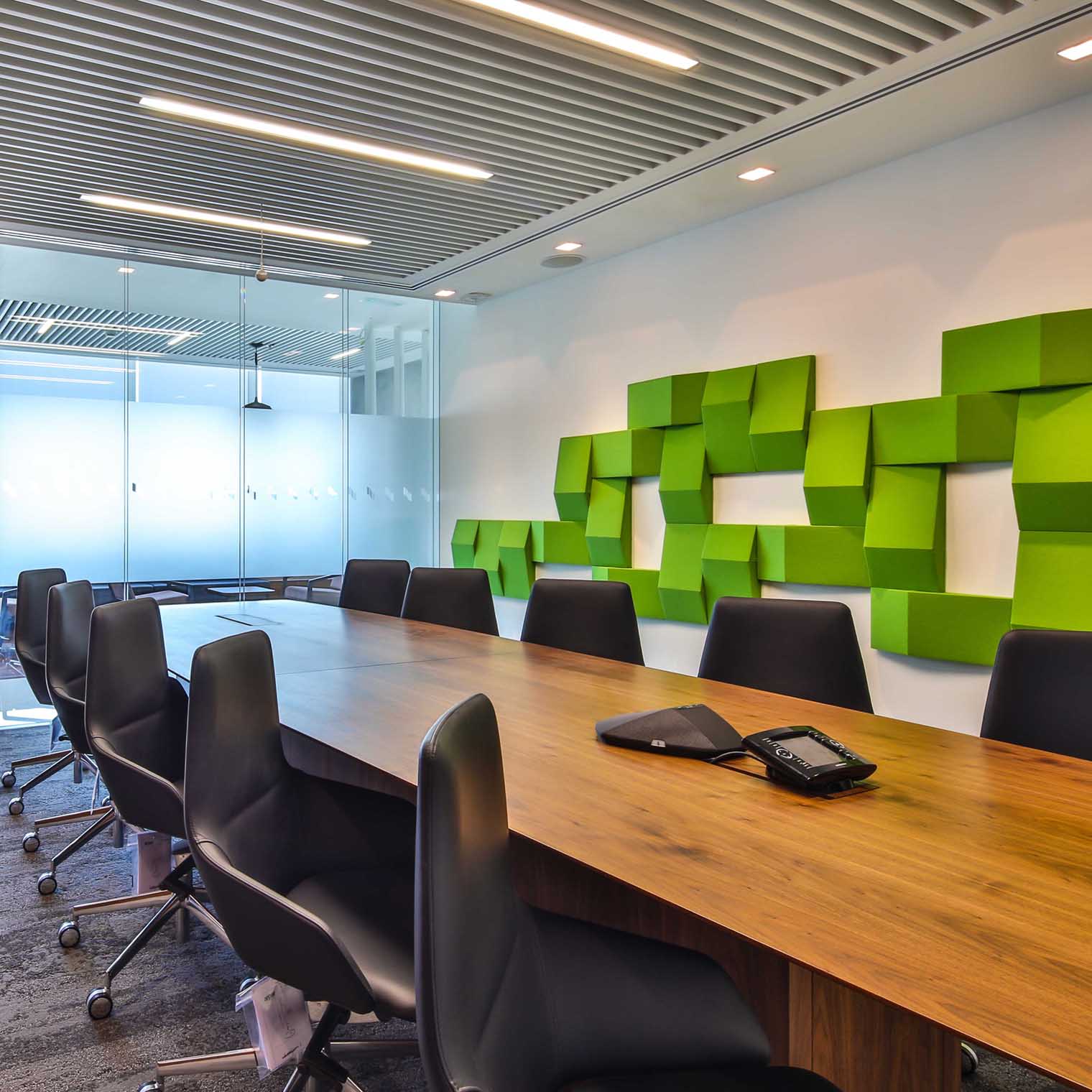

GENERAL Surface mounted linear luminaire for direct illumination, appropriate for general spaces.
OPTICS The opal diffuser provides a uniform diffusing light and uniformly illuminated surface, without visible light sources.
LIGHTING MANAGEMENT The choice of appropriate control gear enables management with analog dimming 1-10V, while DALI enables connection and management in central management system. Also available in autonomous operation mode.
HOUSING Luminaire of extruded aluminium, without visible frame. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
ADDITIONAL Other light colour temperatures available upon request.
Technical data
![Ceiling mounted](/wp-content/uploads/buck-eksa/symbols/2_ceiling_mounted.jpg)
![White finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_11_white_finestructured_paint.jpg)
![Gray finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_21_gray_finestructured_paint.jpg)
![Black finestructured paint](/wp-content/uploads/buck-eksa/symbols/1_31_black_finestructured_paint.jpg)
![Anodised aluminium](/wp-content/uploads/buck-eksa/symbols/1_91_anodises_aluminium.jpg)
![CE](/wp-content/uploads/buck-eksa/symbols/10_ce.jpg)
![Zapaljivost F](/wp-content/uploads/buck-eksa/symbols/7_f.jpg)
![CLASS 1](/wp-content/uploads/buck-eksa/symbols/8_class1.jpg)
![IP42](/wp-content/uploads/buck-eksa/symbols/4_IP42.jpg)
![220-240V](/wp-content/uploads/buck-eksa/symbols/6_220_240.jpg)
![50-60Hz](/wp-content/uploads/buck-eksa/symbols/6_50_60Hz.jpg)
![LED](/wp-content/uploads/buck-eksa/symbols/3_LED.jpg)
Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
---|---|---|---|---|---|---|---|---|---|---|
2335121XY | SLIM LINE TLS /C 600 /840 HE | 564/46/70 | 1.10 | 615 | IP42 | <25 | 7.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335141XY | SLIM LINE TLS /C 600 /840 HO | 564/46/70 | 1.10 | 1173 | IP42 | <25 | 14.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335161XY | SLIM LINE TLS /C 900 /840 HE | 844/46/70 | 1.80 | 922 | IP42 | <25 | 10.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335181XY | SLIM LINE TLS /C 900 /840 HO | 844/46/70 | 1.80 | 1759 | IP42 | <25 | 20.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335221XY | SLIM LINE TLS /C 1200 /840 HE | 1124/46/70 | 2.20 | 1229 | IP42 | <25 | 14.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335241XY | SLIM LINE TLS /C 1200 /840 HO | 1124/46/70 | 2.20 | 2346 | IP42 | <25 | 27.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335261XY | SLIM LINE TLS /C 1500 /840 HE | 1404/46/70 | 2.90 | 1537 | IP42 | <25 | 17.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
2335281XY | SLIM LINE TLS /C 1500 /840 HO | 1404/46/70 | 2.90 | 2932 | IP42 | <25 | 34.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
