DUAL S MD
Product details

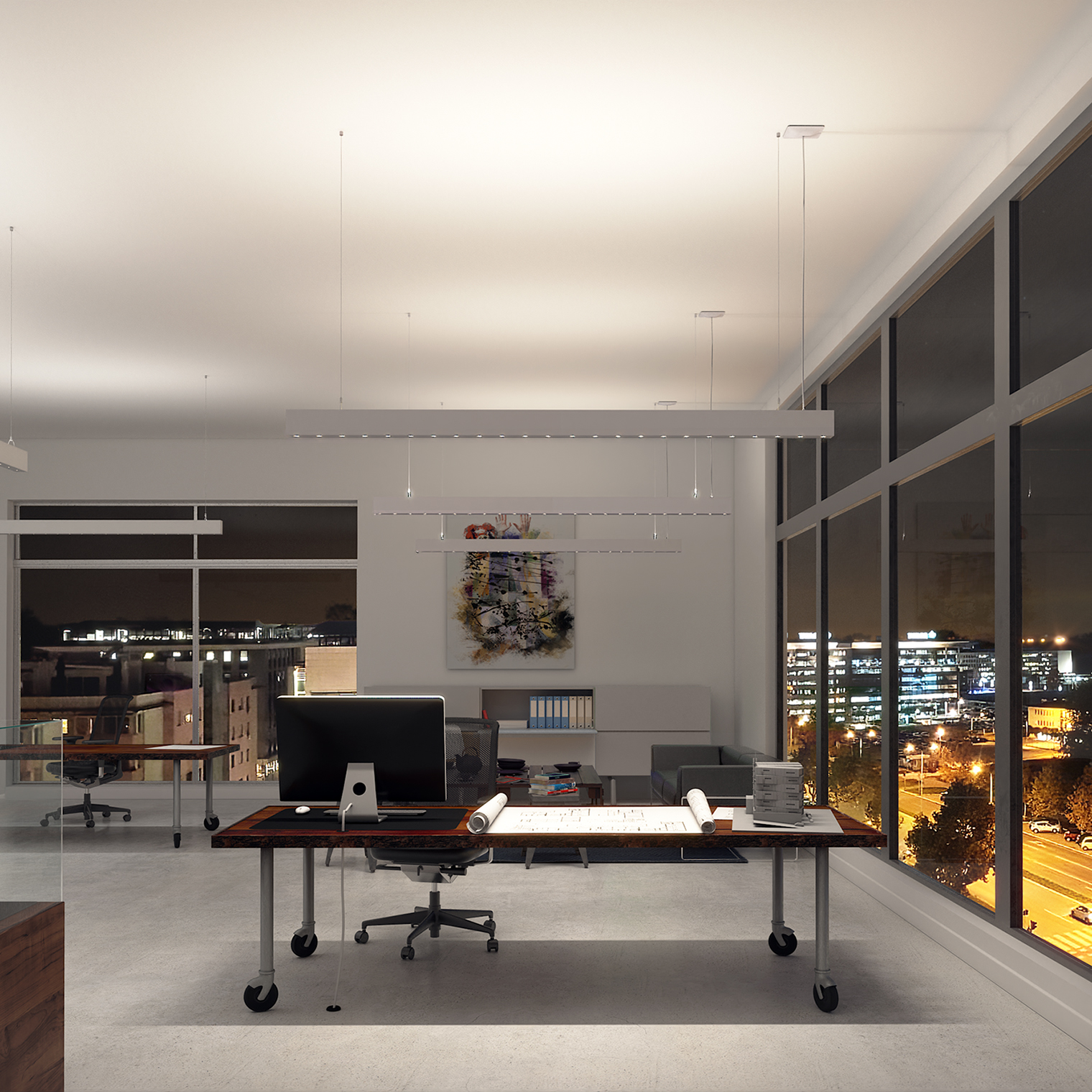

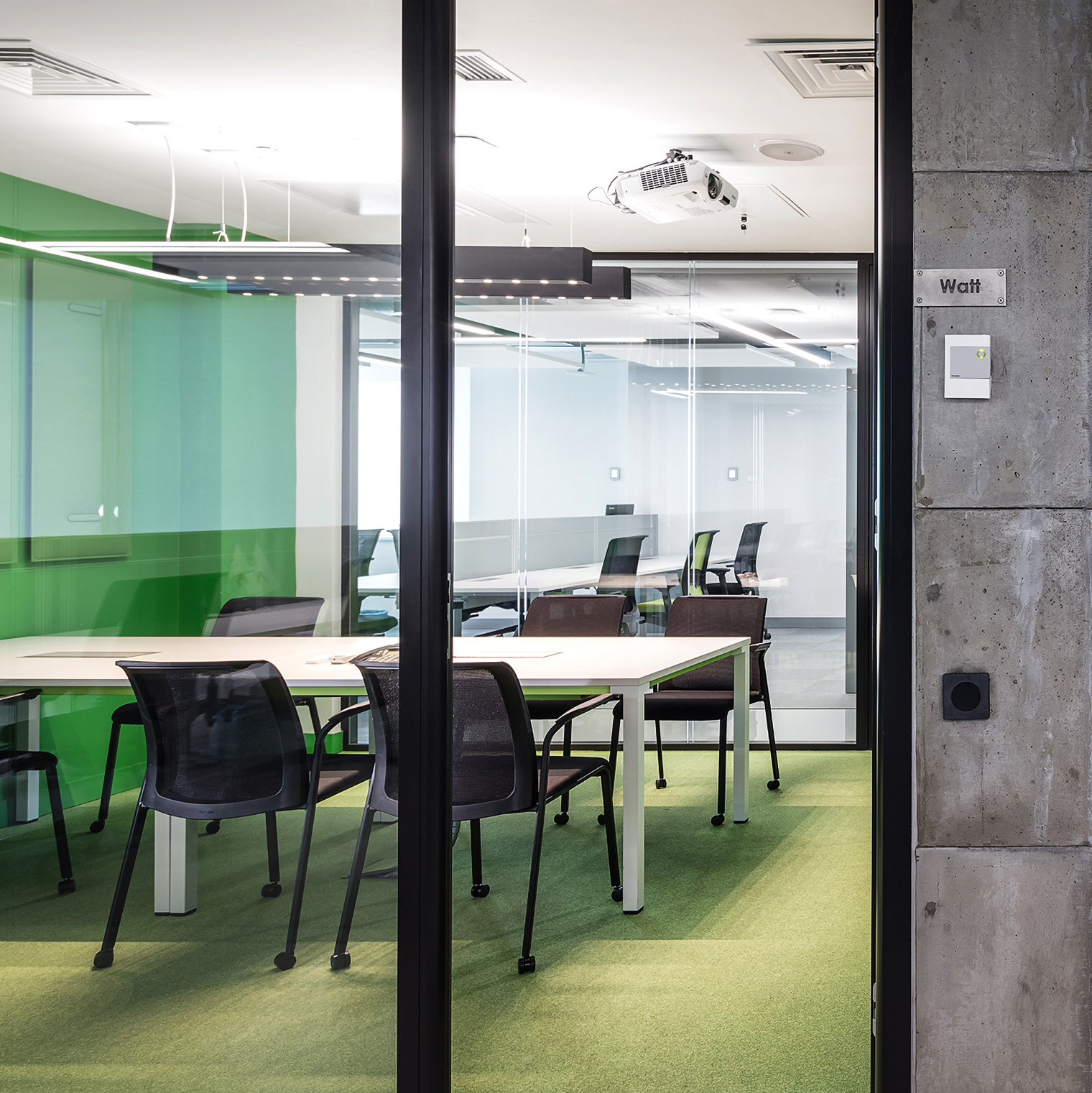

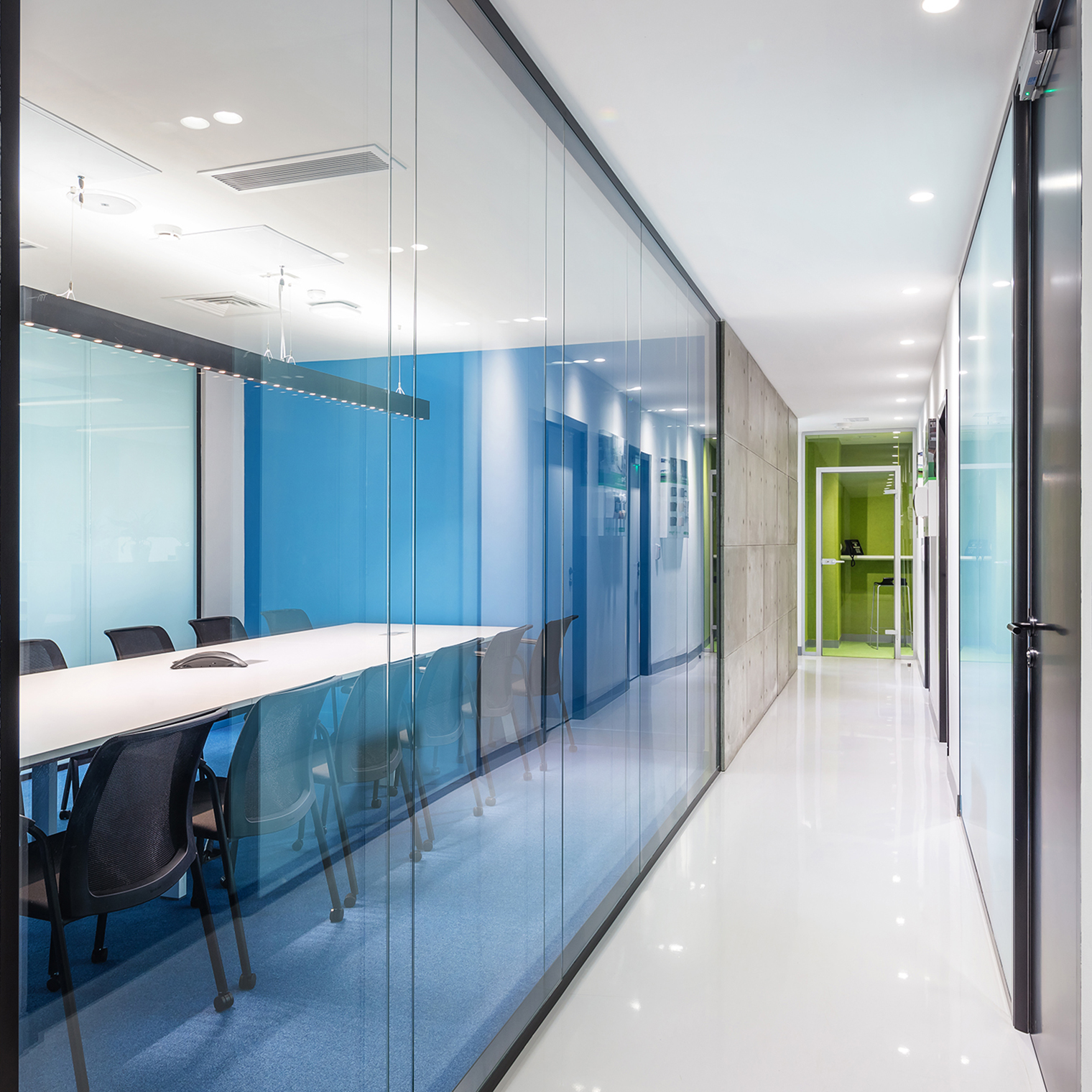

GENERAL High efficiency suspension linear luminaire for direct and indirect high quality illumination of office spaces.
OPTICS Optics for the direct light component: specially developed silver-plated micro downlight reflector. Optics for the indirect light component: satin diffuser of PMMA. Both components provide high energy efficiency >100 lm/W, full visual comfort, good light uniformity. The direct and reflected light angles overlap, obtaining the effect of extreme cut off effect.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.

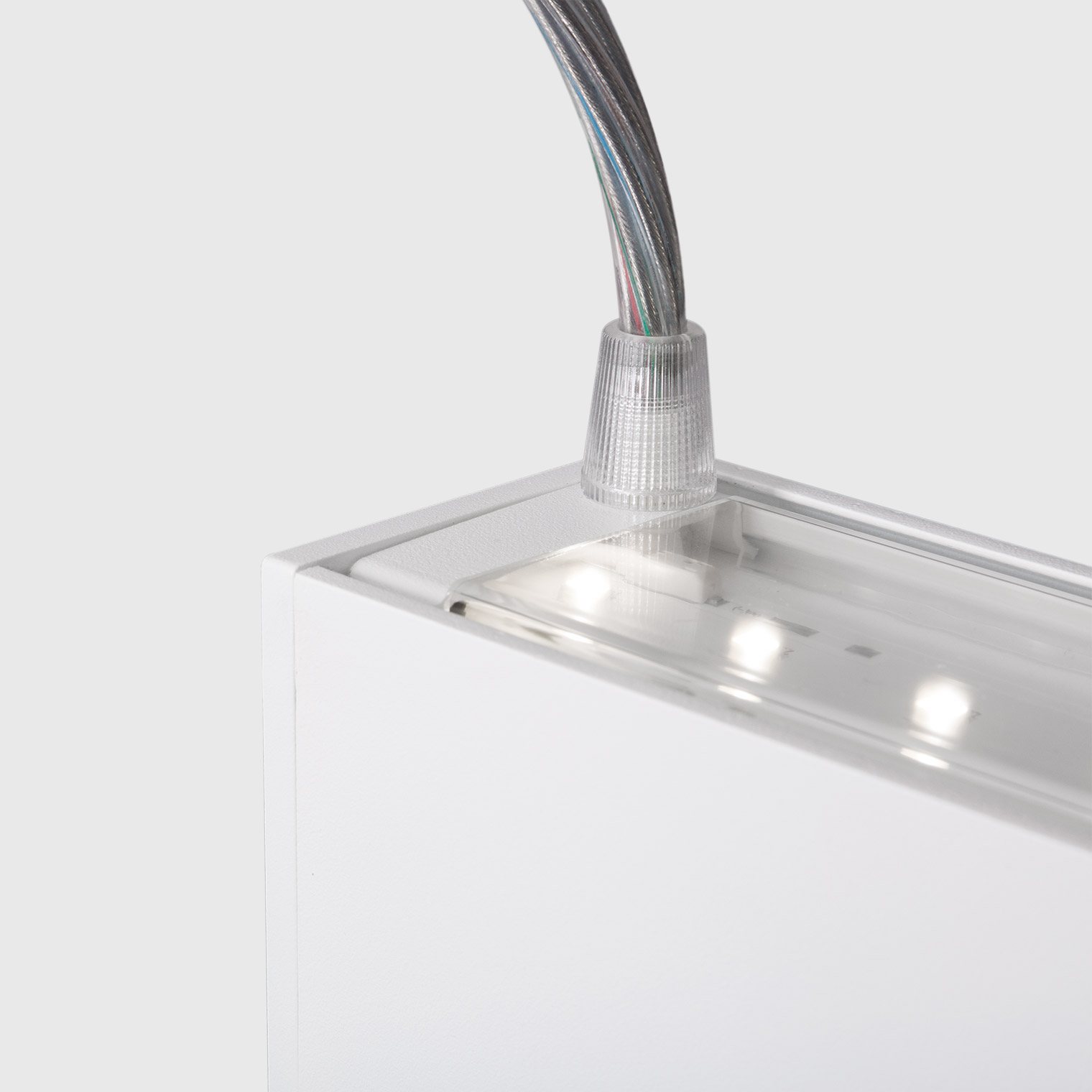

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
FEATURES Easy tool- free mounting and maintenance. Flexibility in positioning suspension elements on the luminaire. Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL To be ordered separately: EM module, enabling operation in the case of a power failure, Dynamic White and other light colour temperatures.
Technical data
| Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* |
|
IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2817111XY | DUAL S MD /S 900 35dg/840 | 846/60/110 | 2.80 | 4655 | 35° | IP20 | — | 37.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817112XY | DUAL S MD /S 900 55dg/840 | 846/60/110 | 2.80 | 4793 | 55° | IP20 | <9 | 37.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817113XY | DUAL S MD /S 900 75dg/840 | 846/60/110 | 2.80 | 4872 | 75° | IP20 | <16 | 37.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817121XY | DUAL S MD /S 1200 35dg/840 | 1126/60/110 | 3.60 | 6206 | 35° | IP20 | — | 49.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817122XY | DUAL S MD /S 1200 55dg/840 | 1126/60/110 | 3.60 | 6391 | 55° | IP20 | <9 | 49.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817123XY | DUAL S MD /S 1200 75dg/840 | 1126/60/110 | 3.60 | 6497 | 75° | IP20 | <16 | 49.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817131XY | DUAL S MD /S 1500 35dg/840 | 1406/60/110 | 4.30 | 7758 | 35° | IP20 | — | 61.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817132XY | DUAL S MD /S 1500 55dg/840 | 1406/60/110 | 4.30 | 7988 | 55° | IP20 | <9 | 61.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817133XY | DUAL S MD /S 1500 75dg/840 | 1406/60/110 | 4.30 | 8121 | 75° | IP20 | <16 | 61.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817141XY | DUAL S MD /S 2400 35dg/840 | 2248/60/110 | 7.00 | 12413 | 35° | IP20 | — | 98.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817142XY | DUAL S MD /S 2400 55dg/840 | 2248/60/110 | 7.00 | 12781 | 55° | IP20 | <9 | 98.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
| 2817143XY | DUAL S MD /S 2400 75dg/840 | 2248/60/110 | 7.00 | 12993 | 75° | IP20 | <16 | 98.0 | 4000 | >80 | 50000h L80B10 /SDCM3 |
