INSERT S TLS MD
Product details

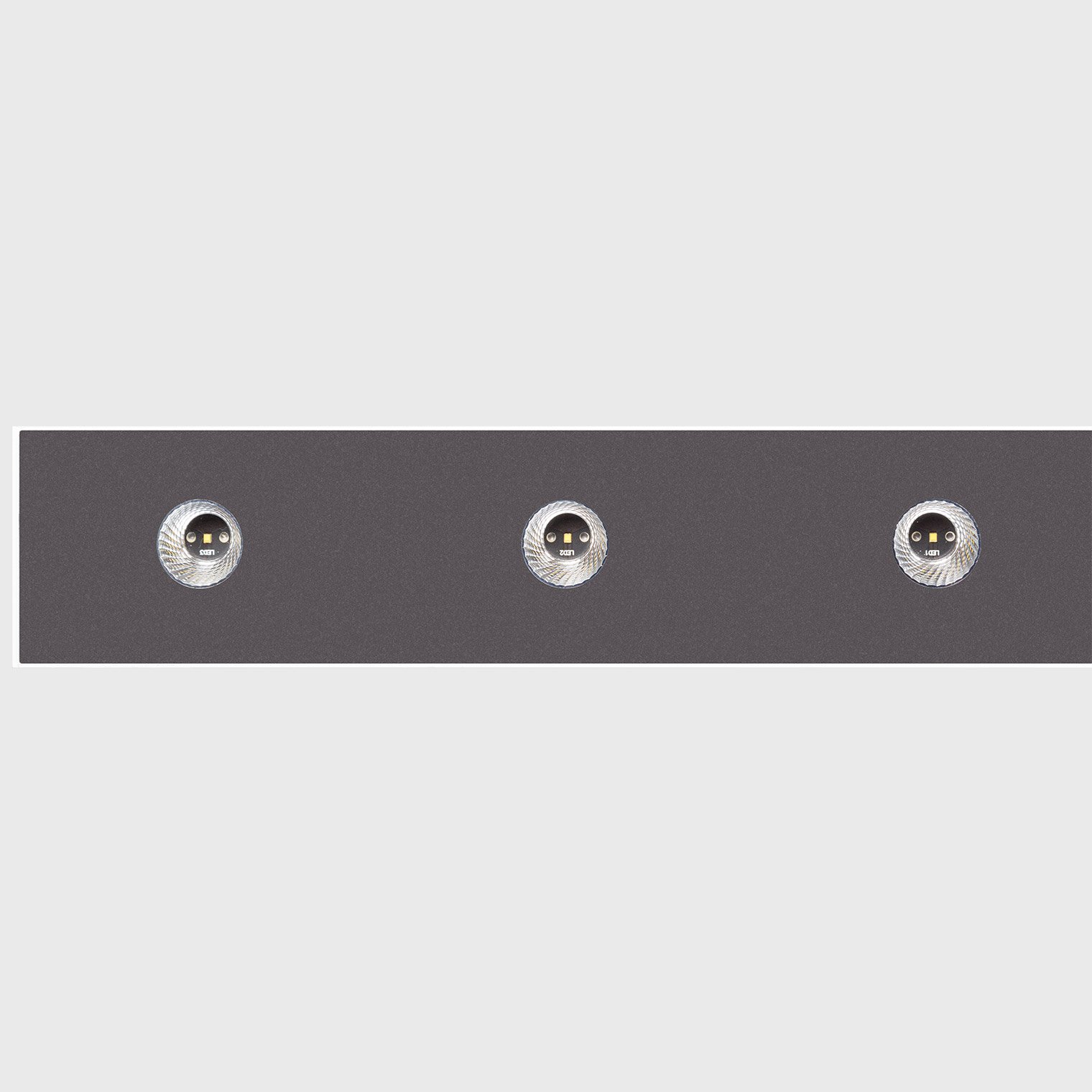

GENERAL High efficiency recessed trimless linear luminaire for direct illumination
OPTICS Linear multispot downlighter reflectors with complex surfaces geometry of micro facets allow precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.
HOUSING Housing made of extruded aluminium, without visible frame. Finish: anodisation in natural aluminium colour or polyester powder coating. Fine structured texture. Other colours are available upon request.

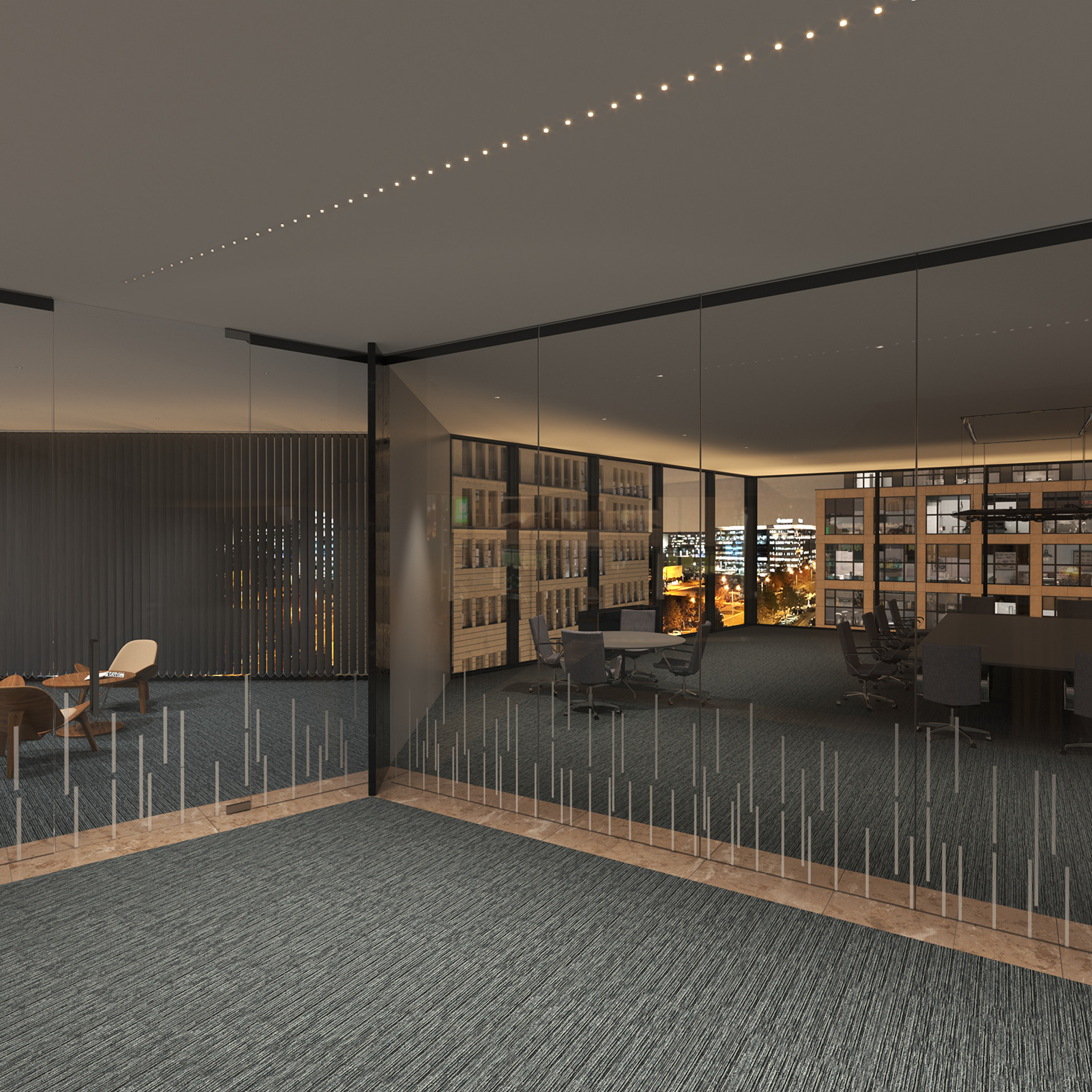

APPLICATION Applicable to monolith suspended ceilings.
ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* |
|
IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1219111XY | INSERT S TLS MD 900 35dg/840 | 846/60/110 | 846/60/170 | 2.80 | 1949 | 35° | IP20 | <6 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219112XY | INSERT S TLS MD 900 55dg/840 | 846/60/110 | 846/60/170 | 2.80 | 2087 | 55° | IP20 | <13 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219113XY | INSERT S TLS MD 900 75dg/840 | 846/60/110 | 846/60/170 | 2.80 | 2167 | 75° | IP20 | <19 | 18.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219121XY | INSERT S TLS MD 1200 35dg/840 | 1126/60/110 | 1126/60/170 | 3.60 | 2599 | 35° | IP20 | <6 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219122XY | INSERT S TLS MD 1200 55dg/840 | 1126/60/110 | 1126/60/170 | 3.60 | 2783 | 55° | IP20 | <13 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219123XY | INSERT S TLS MD 1200 75dg/840 | 1126/60/110 | 1126/60/170 | 3.60 | 2889 | 75° | IP20 | <19 | 25.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219131XY | INSERT S TLS MD 1500 35dg/840 | 1406/60/110 | 1406/60/170 | 4.30 | 3249 | 35° | IP20 | <6 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219132XY | INSERT S TLS MD 1500 55dg/840 | 1406/60/110 | 1406/60/170 | 4.30 | 3479 | 55° | IP20 | <13 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219133XY | INSERT S TLS MD 1500 75dg/840 | 1406/60/110 | 1406/60/170 | 4.30 | 3611 | 75° | IP20 | <19 | 31.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219141XY | INSERT S TLS MD 2400 35dg/840 | 2248/60/110 | 2248/60/170 | 7.00 | 5198 | 35° | IP20 | <6 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219142XY | INSERT S TLS MD 2400 55dg/840 | 2248/60/110 | 2248/60/170 | 7.00 | 5566 | 55° | IP20 | <13 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
| 1219143XY | INSERT S TLS MD 2400 75dg/840 | 2248/60/110 | 2248/60/170 | 7.00 | 5778 | 75° | IP20 | <19 | 49.0 | 4000 | >80 | 50000h L80B10 /SCDM3 |
