Product details

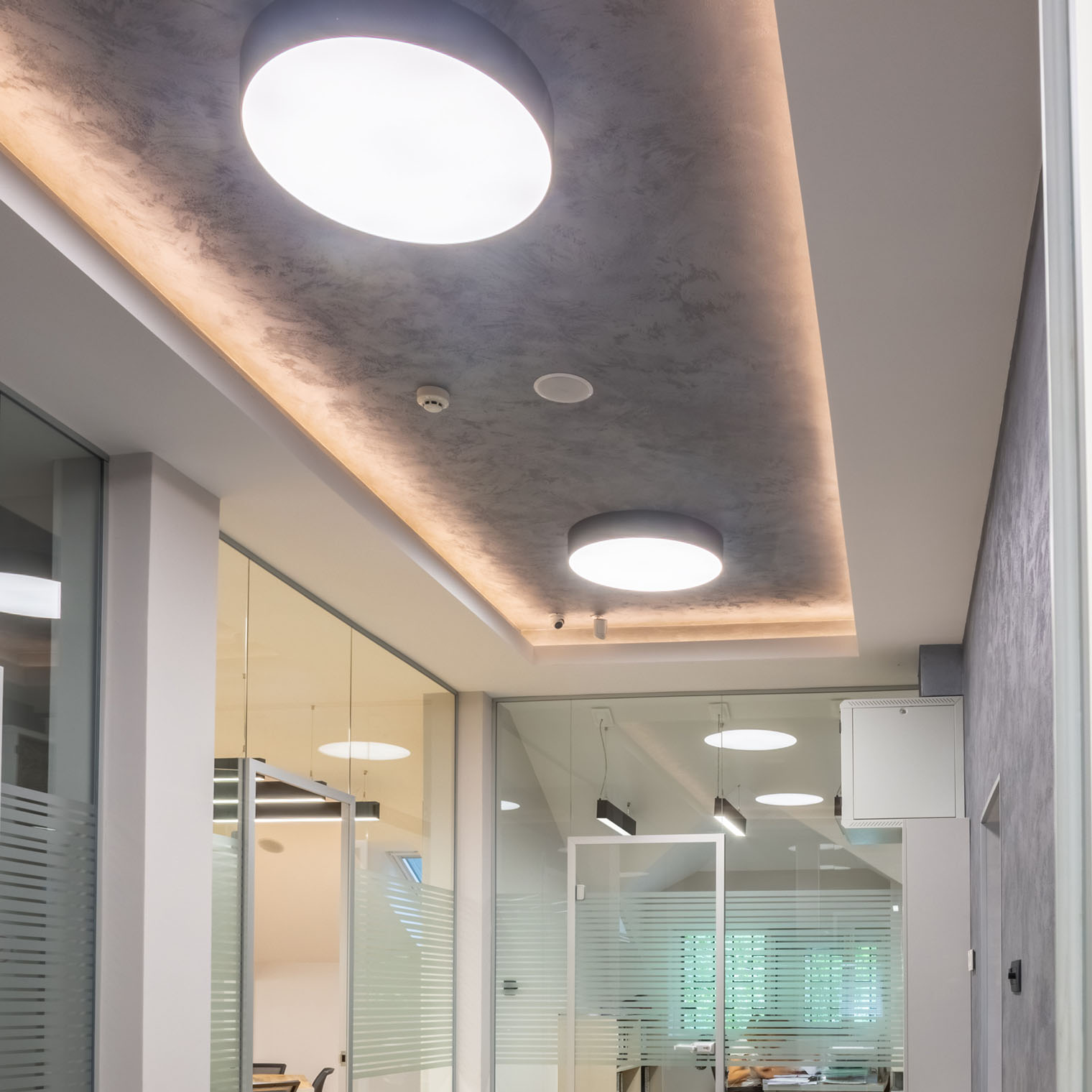

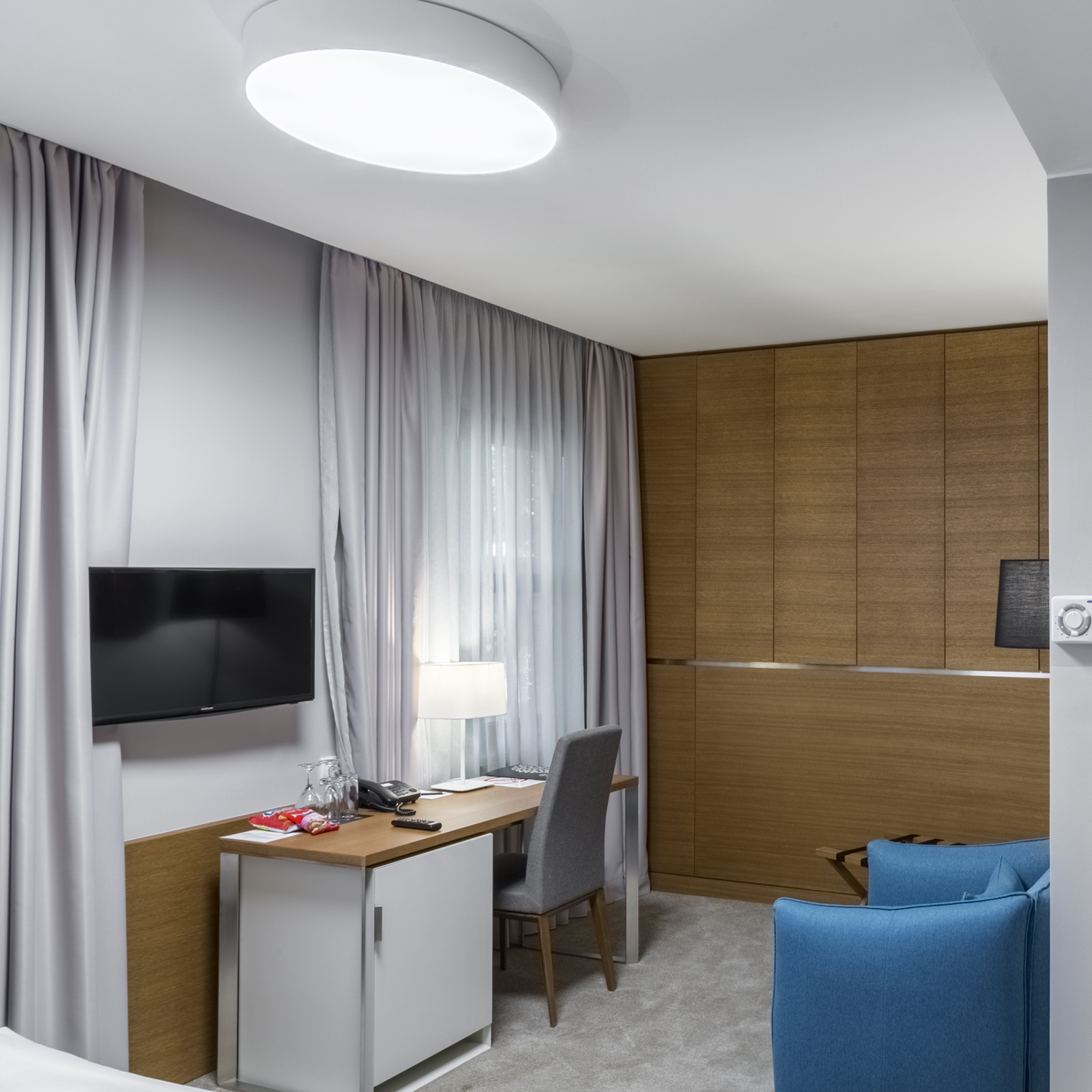

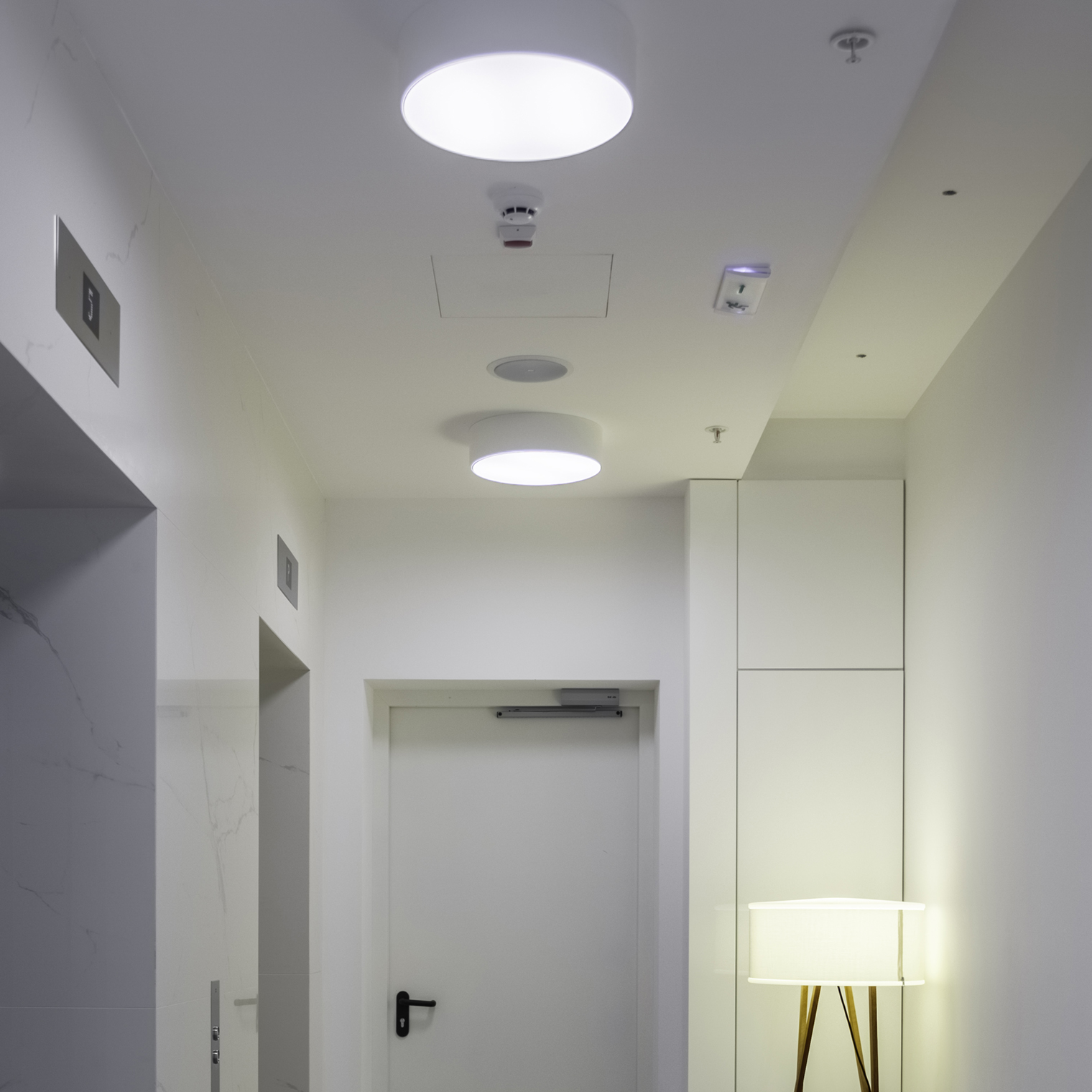

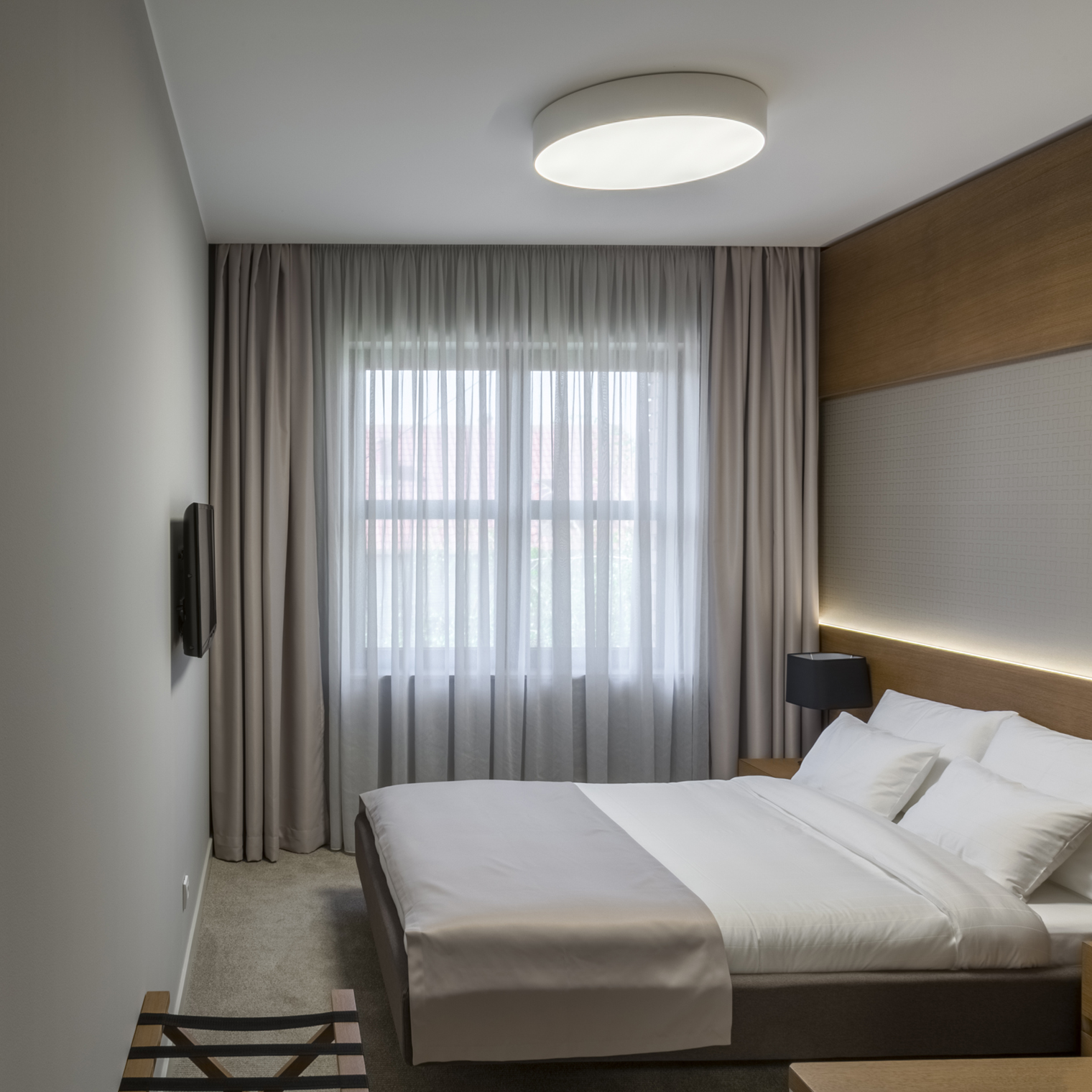

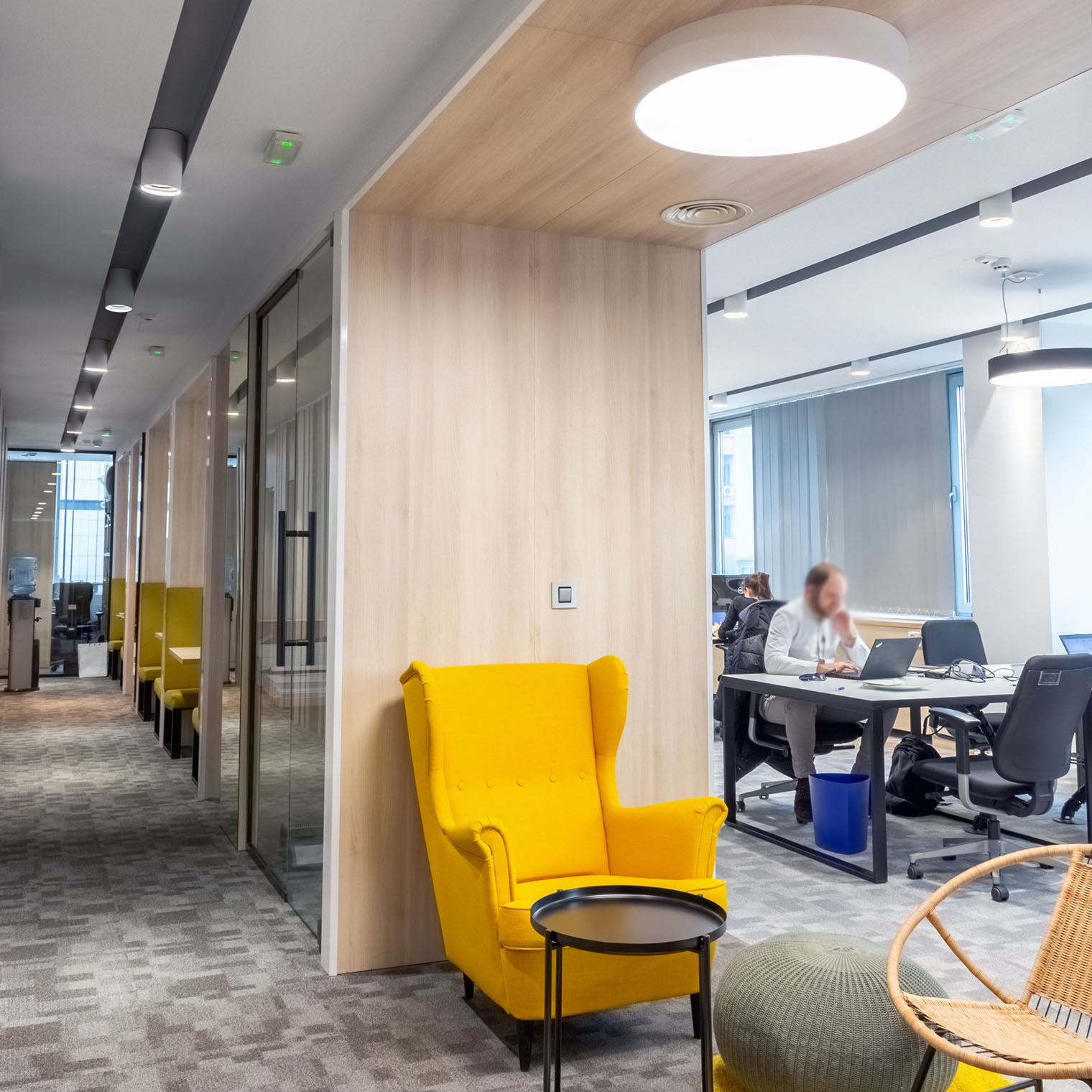

GENERAL Circular surface mounted luminaire for direct illumination of general use spaces.

OPTICS Opal PC diffuser provides a uniform, soft light.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing of aluminium, with epoxy polyester powder coating of fine structured texture. The interior of the housing is highly reflective white coating, regardless the outer finish, for maintaining high efficiency of the luminaire.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Ceiling mounted
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2238141XY LUNA DO /C 400 /840 400/110 4.00 1732 IP40 <22 17.0 4000 >80 54000h L80B10 /SDCM 3
2238221XY LUNA DO /C 600 /840 HE 600/110 5.40 3165 IP40 <22 25.0 4000 >80 54000h L80B10 /SDCM 3
2238241XY LUNA DO /C 600 /840 HO 600/110 5.40 4055 IP40 <22 38.0 4000 >80 54000h L80B10 /SDCM 3
2238321XY LUNA DO /C 900 /840 HE 900/110 10.70 7026 IP40 <22 63.0 4000 >80 54000h L80B10 /SDCM 3
2238341XY LUNA DO /C 900 /840 HO 900/110 10.70 10143 IP40 <22 94.0 4000 >80 54000h L80B10 /SDCM 3
2238421XY LUNA DO /C 1200 /840 HE 1200/110 18.00 11711 IP40 <22 105.0 4000 >80 54000h L80B10 /SDCM 3
2238441XY LUNA DO /C 1200 /840 HO 1200/110 18.00 16906 IP40 <22 157.0 4000 >80 54000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
