Product details

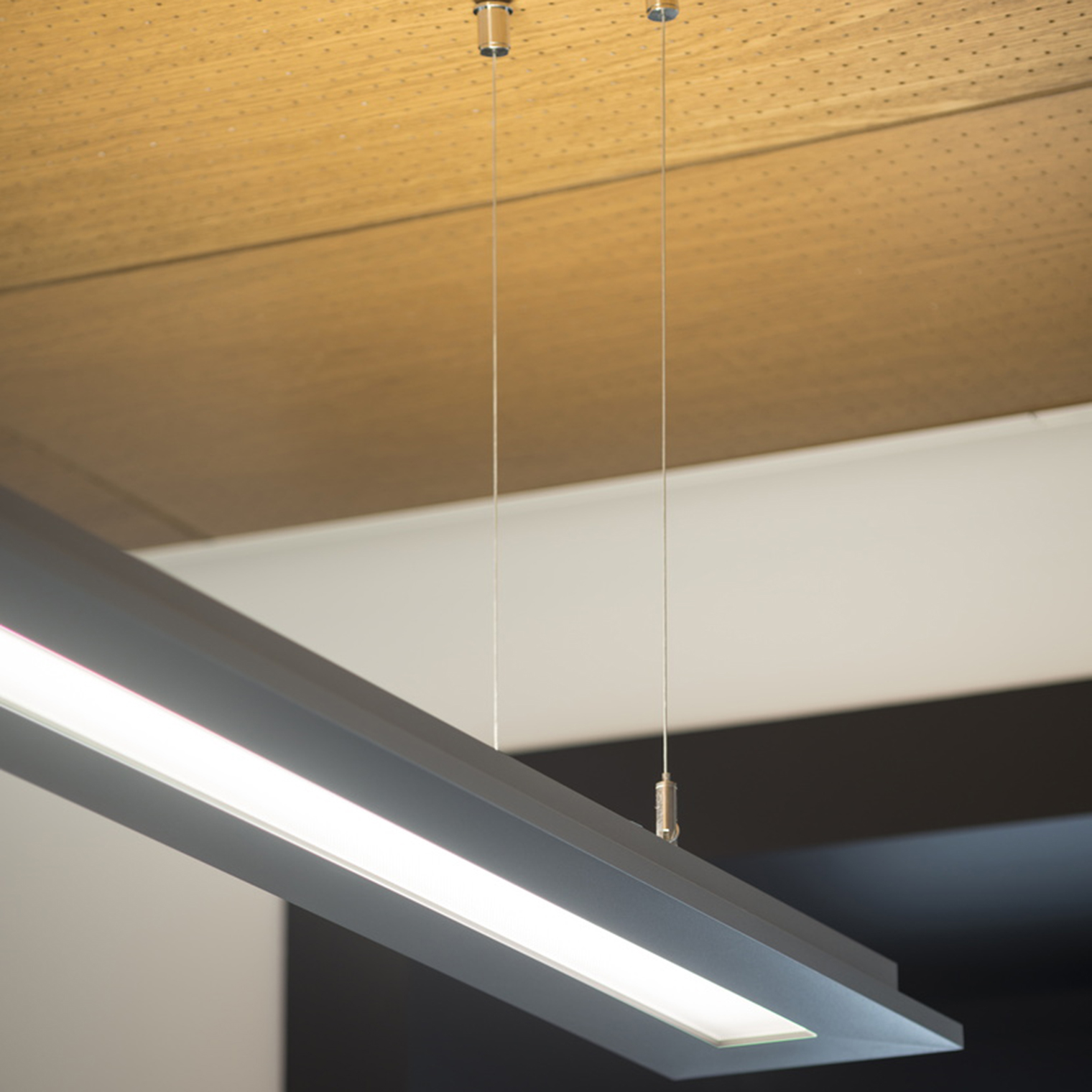

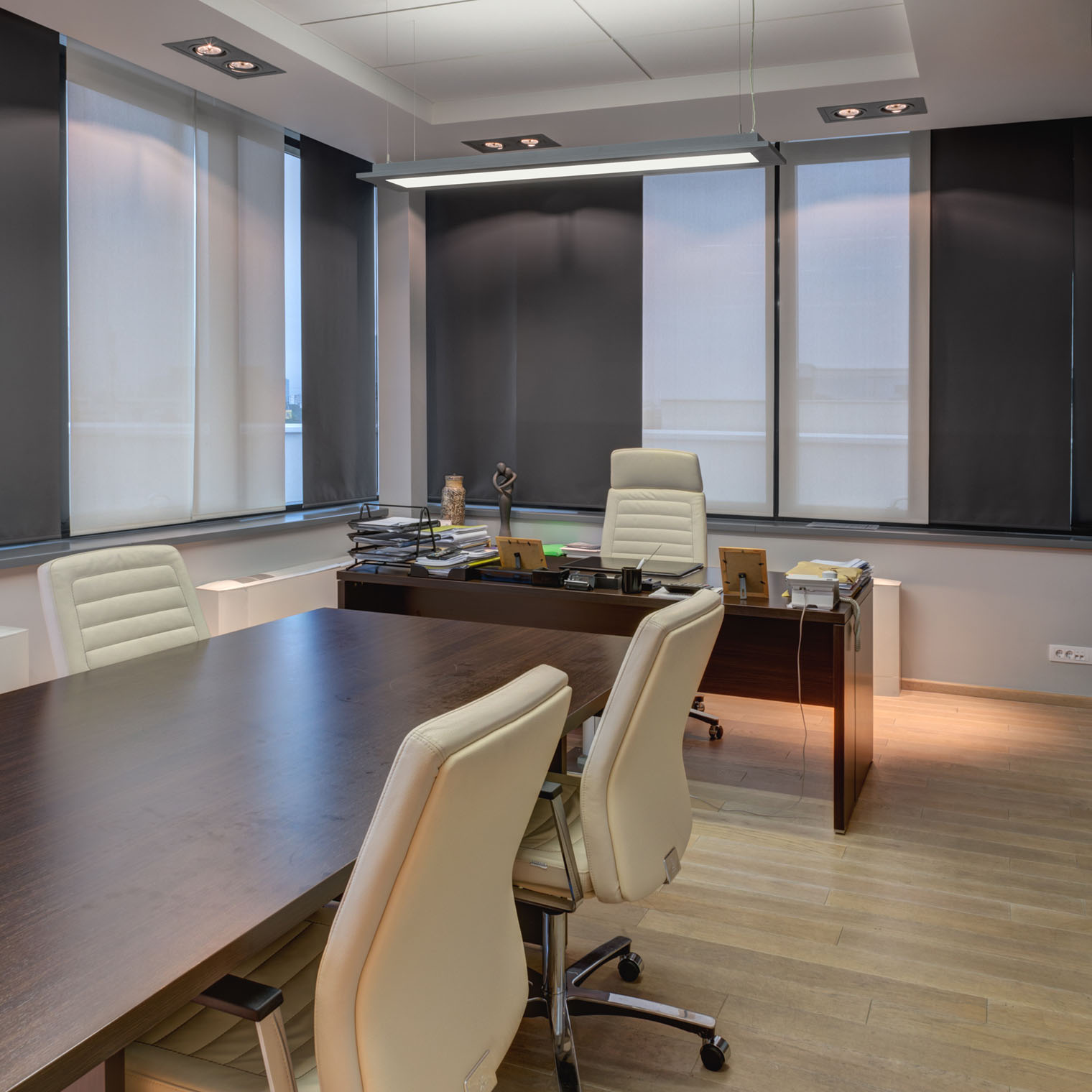

GENERAL High efficiency suspension luminaire for direct and indirect high quality illumination of office spaces. Full visual comfort ensured with the latest optical and electrical components.
OPTICS Optics for direct light component: highly transparent micro prismatic diffuser providing glare limitation (UGR< 19) and a uniform diffusing light. The opal film provides a uniformly illuminated surface, without visible light sources. Optics for the indirect light component: satin PMMA diffuser.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
ADDITIONAL Appropriate suspension kit to be ordered separately. Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H1/H2[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2877121XY | MINI VELA 1 CDP 1200 /840 | 1240/168/13/44 | 4.20 | 6037 | IP20 | <16 | 54.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
| 2877141XY | MINI VELA 1 CDP 1500 /840 | 1520/168/13/44 | 7.00 | 7546 | IP20 | <16 | 67.0 | 4000 | >80 | 60000h L80B10 /SDCM3 |
