MINI VELA 1 PIKO
Product details

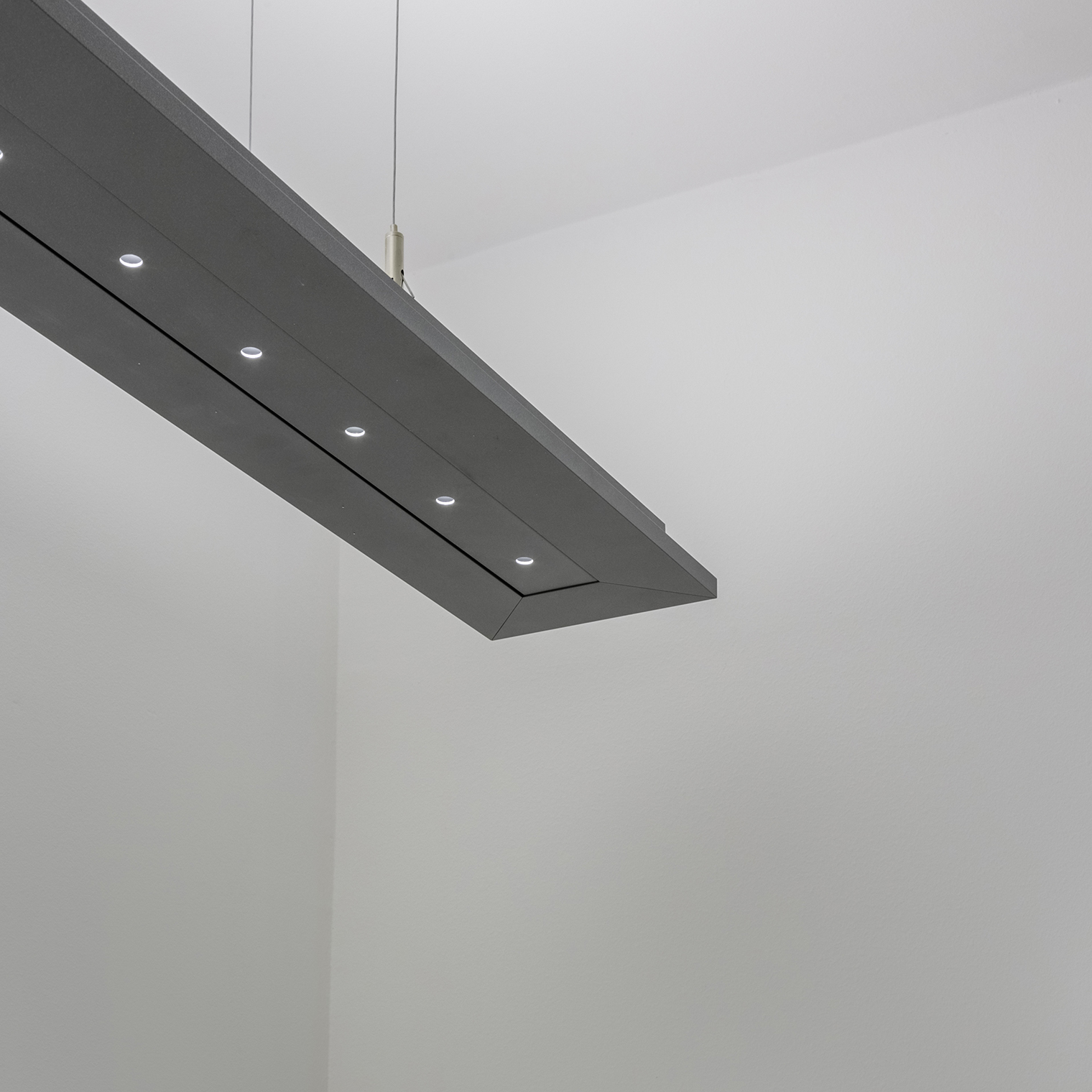

GENERAL High efficiency suspension luminaire for direct and indirect high quality illumination of office spaces. Full visual comfort ensured with the latest optical and electrical components.
OPTICS Optics for direct light component: lens made of PMMA, retracted from the bottom surface of the luminaire, emitting light through perforation on the surface. Retraction from the perforation enables invisibility of the light source, providing full visual comfort. Optics for the indirect light component: clear diffuser.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
ADDITIONAL Appropriate suspension kit to be ordered separately. Other light colour temperatures available upon request.
Technical data
| Order code | Description | A/B/H1/H2[mm] | WEIGHT [kg] | FLUX [lm]* |
|
IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2878111XY | MINI VELA 1 PIKO /840 | 1520/168/13/44 | 7.00 | 3083 | 60° | IP20 | <16 | 35.0 | 4000 | >80 | 50000h L80B10 /SDCM 3 |
