PRIMA M DO

Product details

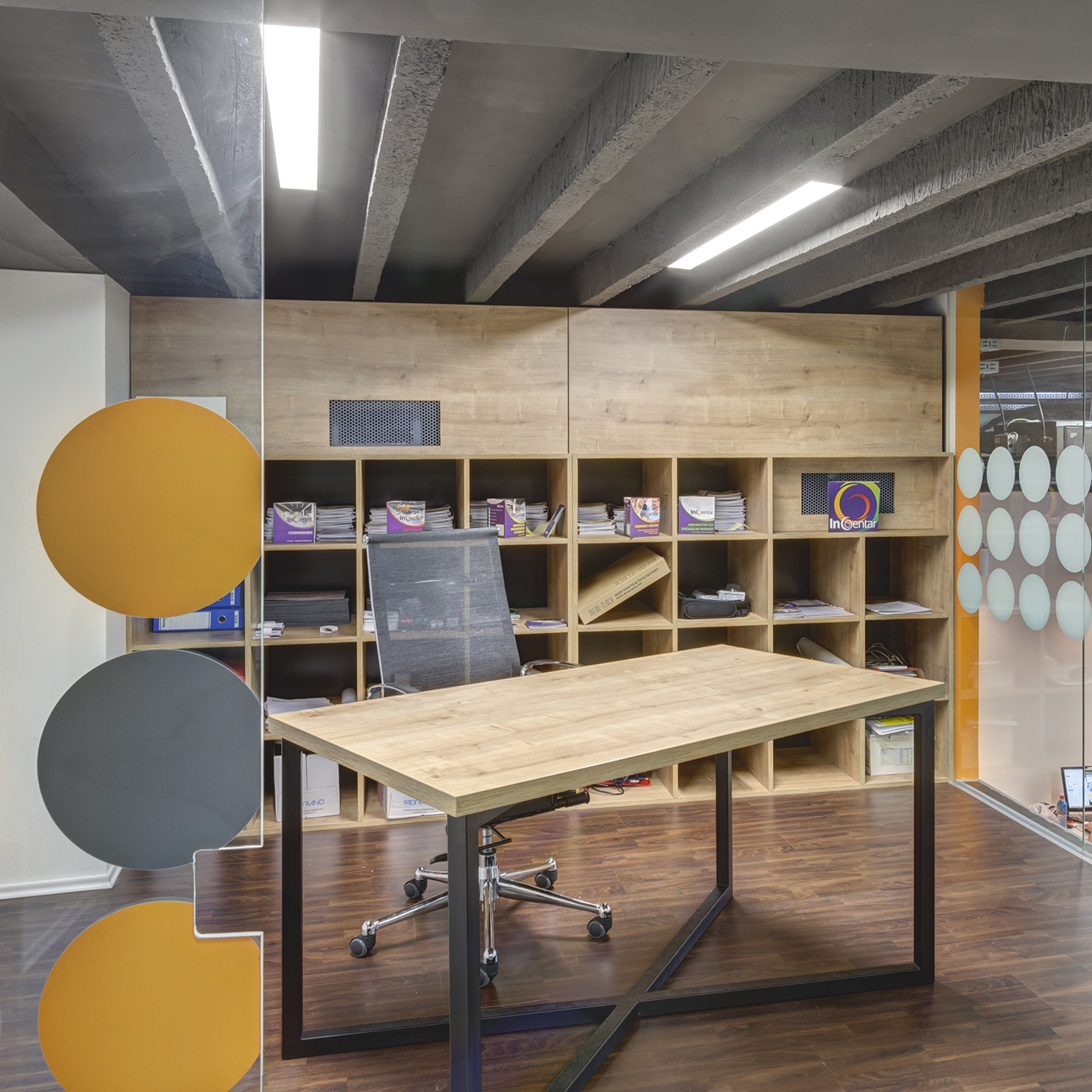

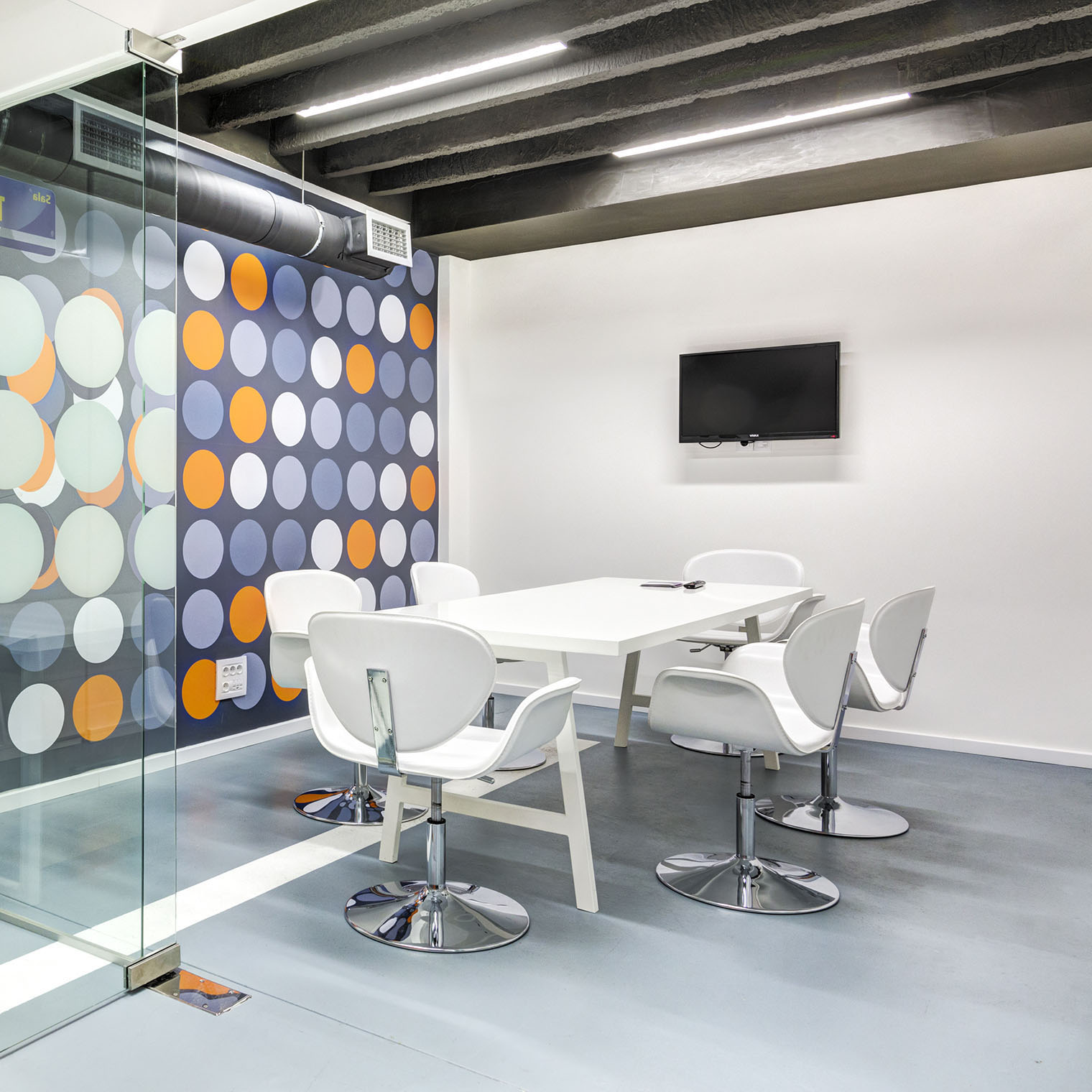

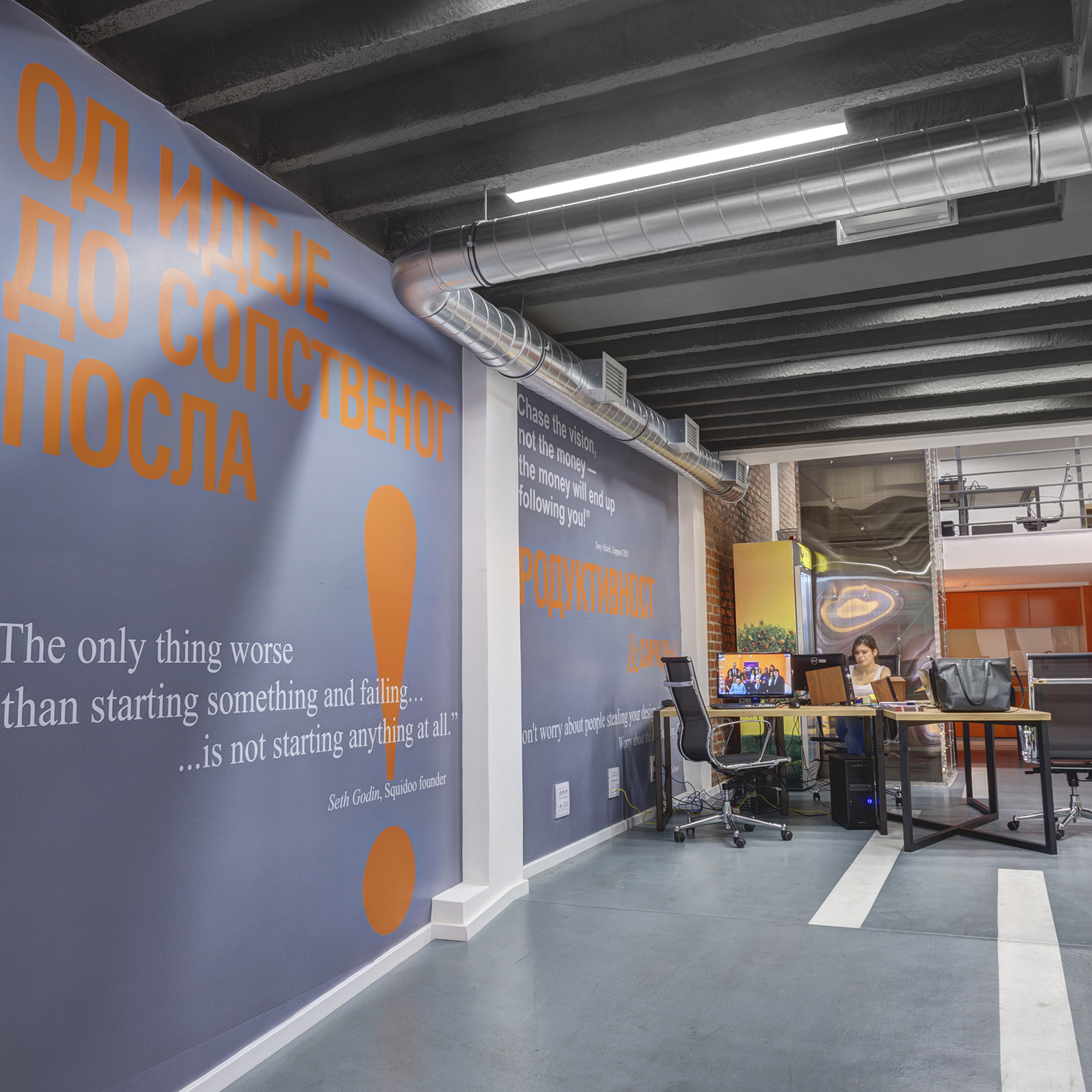

GENERAL High efficiency surface mounted luminaire for direct illumination.

OPTICS Opal diffuser provides a uniform diffusing light and a uniformly illuminated surface, without visible light sources.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure. Other light colour temperatures available upon request.

Technical data

Ceiling mounted
White finestructured paint
Gray finestructured paint
Black finestructured paint
Anodised aluminium
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2344221XY PRIMA M DO 600 /840 HE 576/83/100 1.80 827 IP40 <22 7.0 4000 >80 54000h L80B10 /SDCM 3
2344241XY PRIMA M DO 600 /840 HO 576/83/100 1.80 1474 IP40 <25 13.0 4000 >80 54000h L80B10 /SDCM 3
2344321XY PRIMA M DO 900 /840 HE 862/83/100 2.50 1241 IP40 <22 11.0 4000 >80 54000h L80B10 /SDCM 3
2344341XY PRIMA M DO 900 /840 HO 862/83/100 2.50 2211 IP40 <25 20.0 4000 >80 54000h L80B10 /SDCM 3
2344421XY PRIMA M DO 1200 /840 HE 1148/83/100 3.20 1655 IP40 <22 14.0 4000 >80 54000h L80B10 /SDCM 3
2344441XY PRIMA M DO 1200 /840 HO 1148/83/100 3.20 2948 IP40 <25 27.0 4000 >80 54000h L80B10 /SDCM 3
2344521XY PRIMA M DO 1500 /840 HE 1434/83/100 4.00 2068 IP40 <22 18.0 4000 >80 54000h L80B10 /SDCM 3
2344541XY PRIMA M DO 1500 /840 HO 1434/83/100 4.00 3685 IP40 <25 33.0 4000 >80 54000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
