Product details

GENERAL High efficiency suspension luminaire for direct high quality illumination of office spaces.

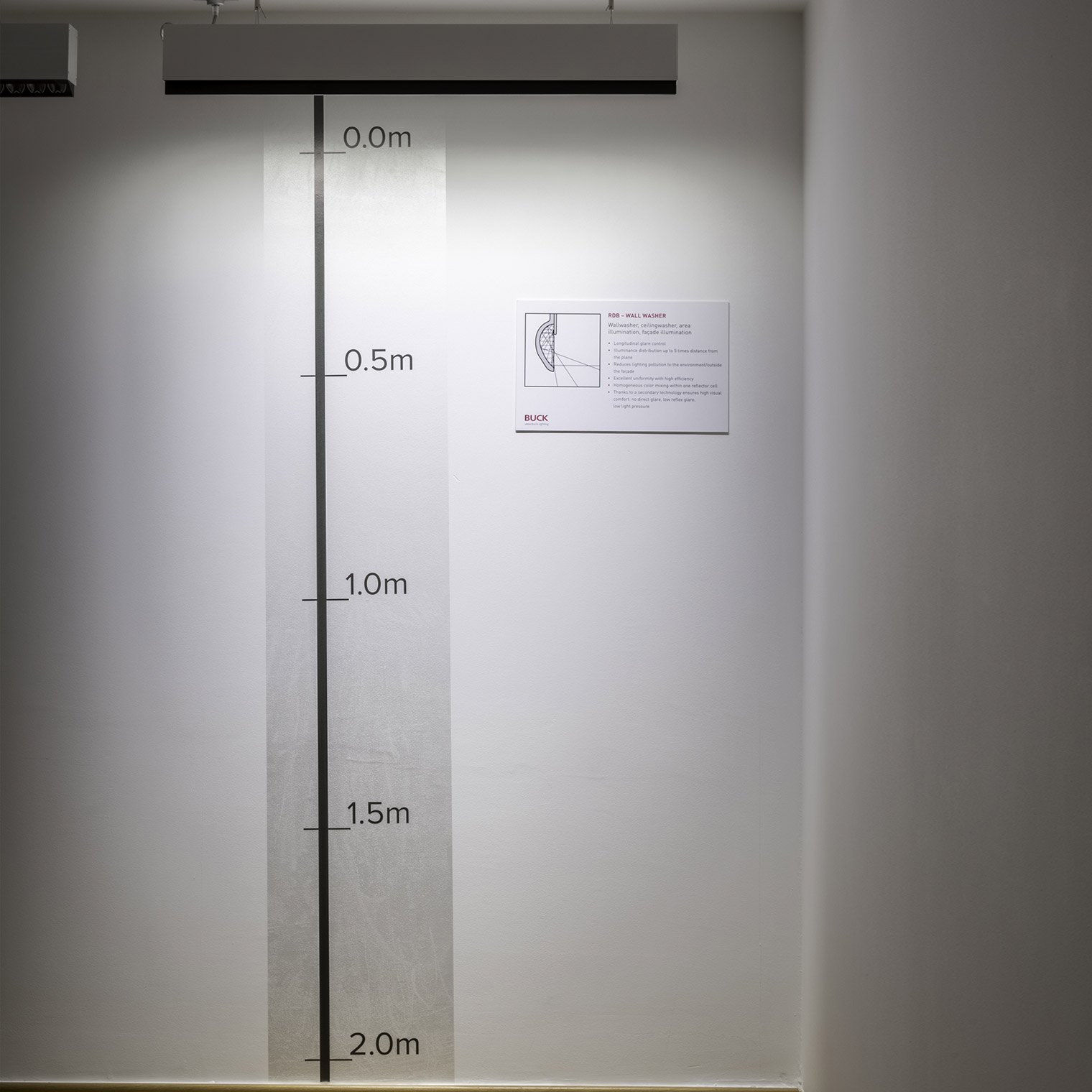

OPTICS Wall washing component is based on reflectors with complex- surface micro- facet technology. The reflectors ensure high uniformity in lighting distribution on plane with characteristic elongation in vertical direction. Precise cut off eliminating glare in adjacent areas.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

EQUIPMENT Supplied with suspension kit.

ADDITIONAL Dynamic White and other light colour temperatures to be ordered separetely.


Technical data

Wall washer suspended
White finestructured paint
Gray finestructured paint
Black finestructured paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
2816111XY PRIMA S WW /S 900 /840 846/60/136 2.80 2081 IP40 19.0 4000 >80 50000h L80B10 /SCDM3
2816121XY PRIMA S WW /S 1200 /840 1126/60/136 3.60 2774 IP40 26.0 4000 >80 50000h L80B10 /SCDM3
2816131XY PRIMA S WW /S 1500 /840 1406/60/136 4.30 3468 IP40 32.0 4000 >80 50000h L80B10 /SCDM3
2816141XY PRIMA S WW /S 2400 /840 2248/60/136 7.00 5549 IP40 51.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
