Product details

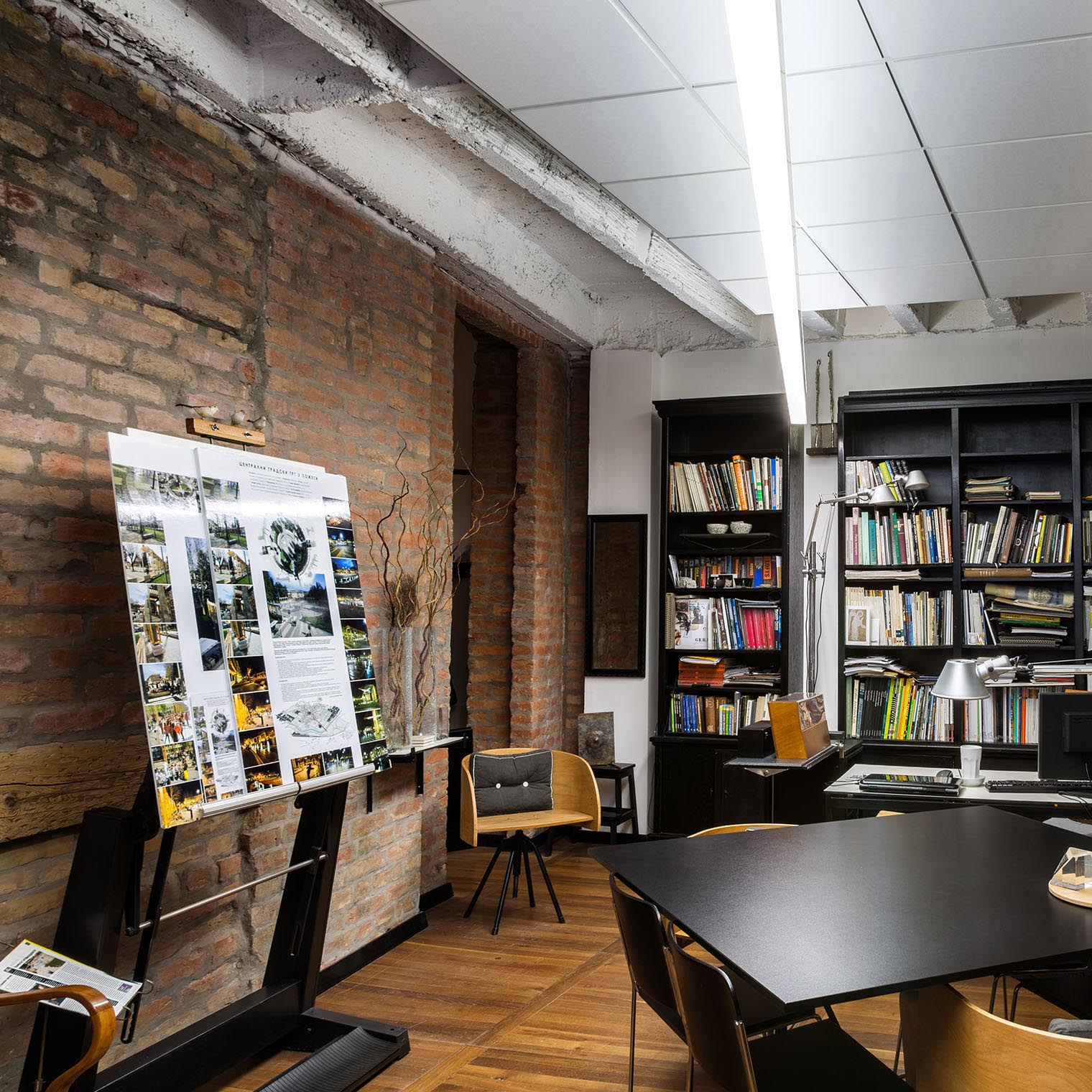

GENERAL High efficiency suspension linear luminaire for direct and indirect high quality illumination of office spaces.

OPTICS For direct light component: opal diffuser providing a uniform diffused light and an uniformly illuminated surface, without visible light sources. For indirect light component: satin PMMA protector.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

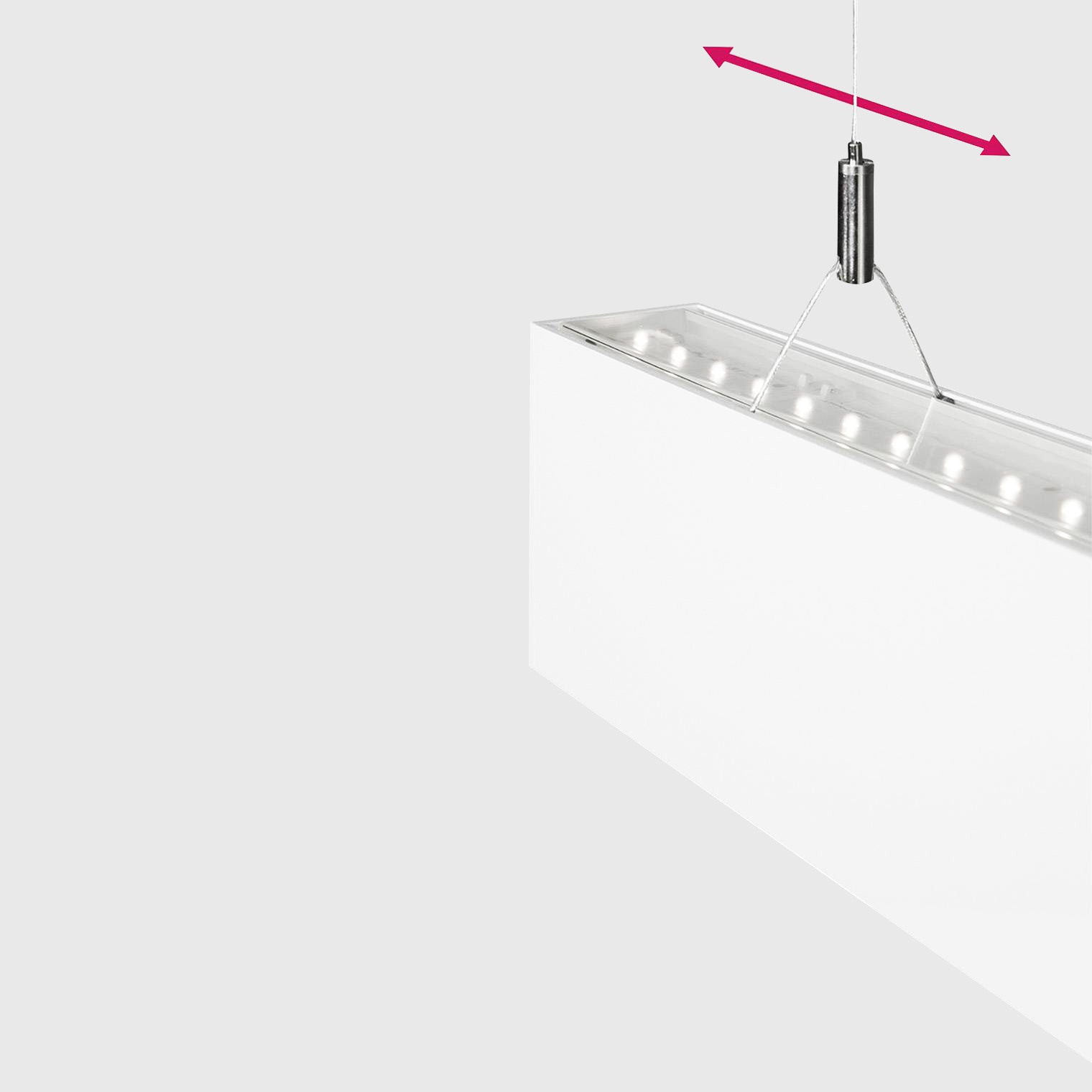

FEATURES Easy tool- free mounting and maintenance. Flexibility in positioning suspension elements on the luminaire. Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

EQUIPMENT Supplied with suspension kit.

ADDITIONAL To be ordered separately: EM module, enabling operation in the case of a power failure, Dynamic White and other light colour temperatures.

Technical data

Suspended direct and indirect lighting
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP40
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2814122XY DUAL S DO 900 /840 HE 846/60/110 3.10 2476 IP40 <19 18.0 4000 >80 60000h L80B10 /SDCM 3
2814126XY DUAL S DO 900 /840 HO 846/60/110 3.10 4733 IP40 <22 38.0 4000 >80 60000h L80B10 /SDCM 3
2814132XY DUAL S DO 1200 /840 HE 1126/60/110 3.90 3301 IP40 <19 24.0 4000 >80 60000h L80B10 /SDCM 3
2814136XY DUAL S DO 1200 /840 HO 1126/60/110 3.90 6310 IP40 <22 50.0 4000 >80 60000h L80B10 /SDCM 3
2814142XY DUAL S DO 1500 /840 HE 1406/60/110 4.70 4126 IP40 <19 30.0 4000 >80 60000h L80B10 /SDCM 3
2814146XY DUAL S DO 1500 /840 HO 1406/60/110 4.70 7888 IP40 <22 63.0 4000 >80 60000h L80B10 /SDCM 3
2814152XY DUAL S DO 2400 /840 HE 2248/60/110 7.60 6601 IP40 <19 48.0 4000 >80 60000h L80B10 /SDCM 3
2814156XY DUAL S DO 2400 /840 HO 2248/60/110 7.60 12620 IP40 <22 100.0 4000 >80 60000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
