RING CDP /S
Product details

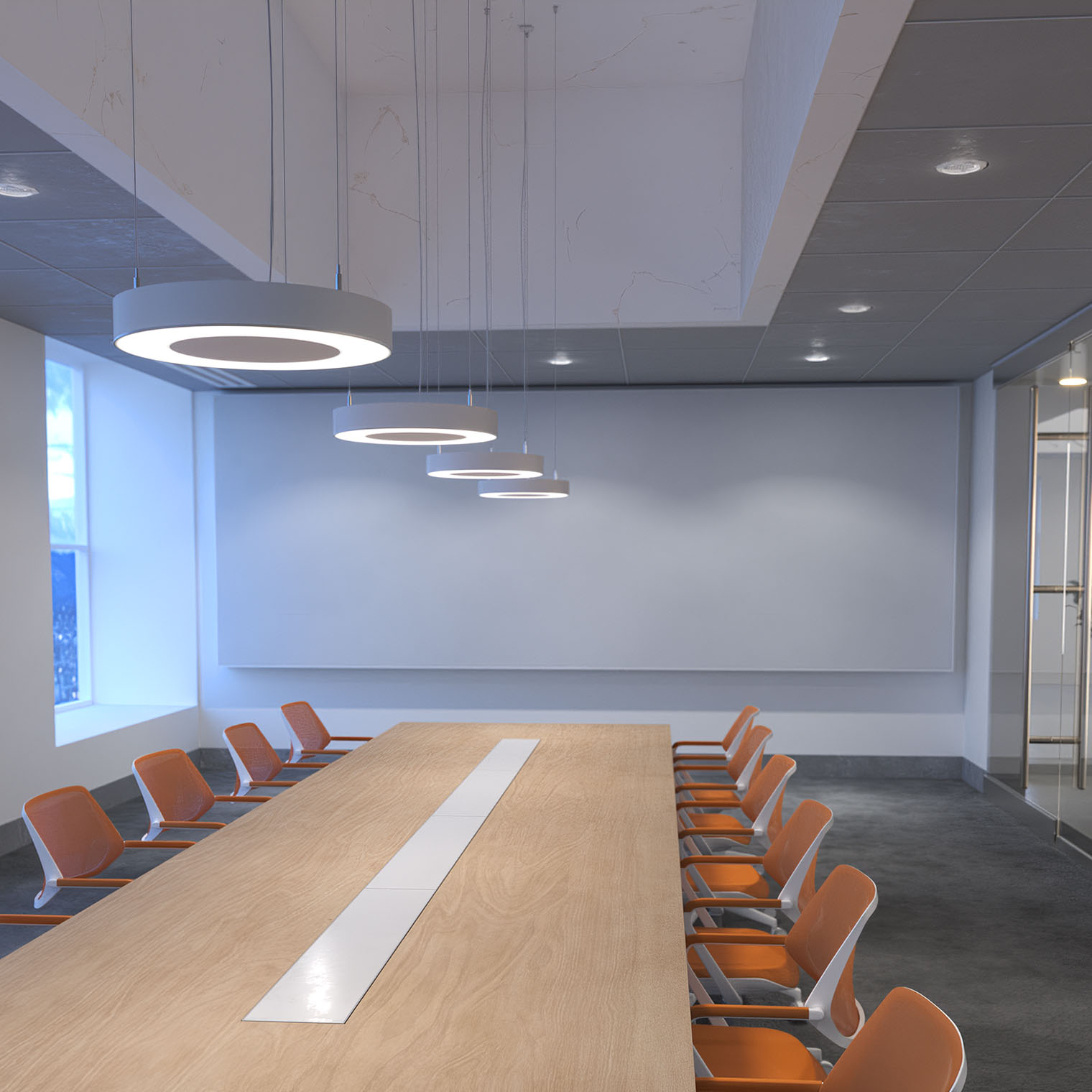

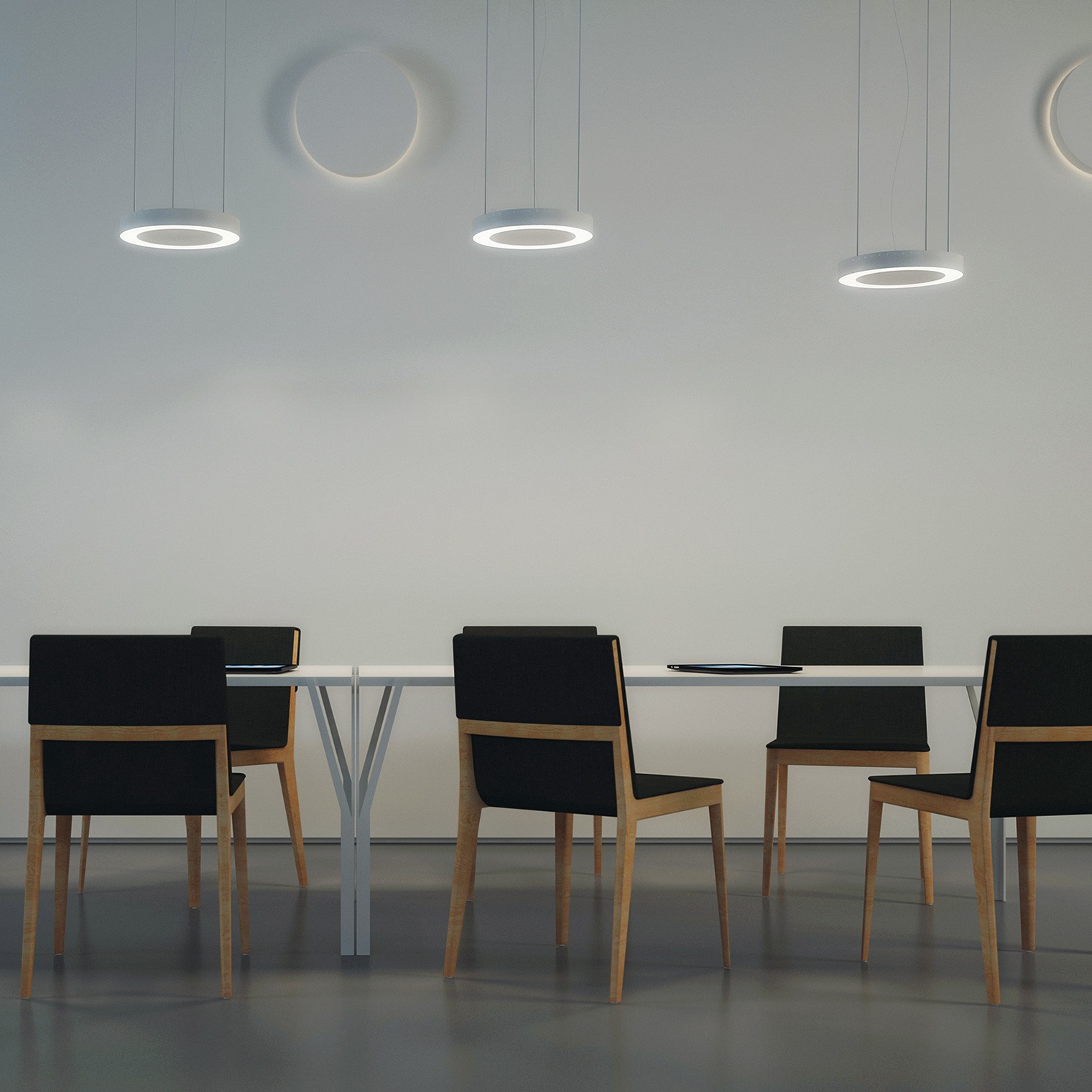

GENERAL Ring shaped suspension luminaire for direct illumination of office spaces.
OPTICS Highly transparent diffuser of microprismatic structure provides glare limitation and a uniform, diffused light, according to EN 12464 -(UGR<19). Opal foil provides a uniformly illuminated surface, without visible light sources.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING Housing of aluminium, with epoxy polyester powder coating. Fine structured texture.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL Other light colour temperatures available upon request.
Technical data
| Order code | Description | Ø/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2750821XY | RING CDP /S /840 | 390/112 | 3.20 | 1614 | IP40 | <19 | 18.0 | 4000 | >80 | 60000h L80B10/ SDCM 3 |
