MICRO MD 4

Product details

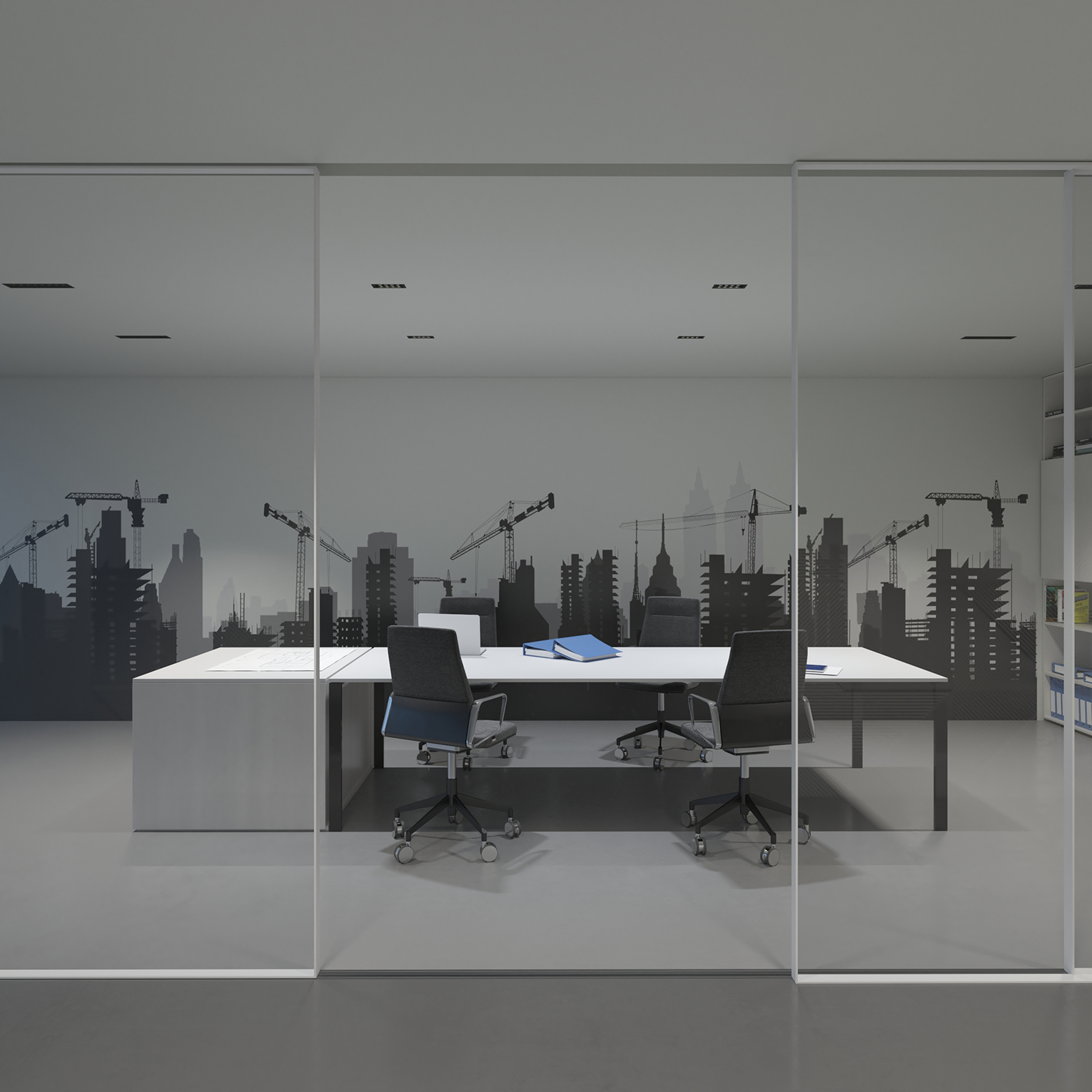

GENERAL Minimal dimensions and supreme visual comfort together with high optical and energy efficiency make this recessed linear downlighter ideal for accent illumination.

OPTICS Linear multispot downlighter reflectors with complex surfaces geometry of micro facets allow precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing is made of aluminium with visible frame. Finish: epoxy polyester powder coating. Fine structured texture. Standard colours: white, gray, black, other colours available upon request.

APPLICATION Applicable to all types of suspended ceilings that can be cut through.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

Recessed ceiling
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
SELV
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1515151XY MICRO MD 4 35dg/840 HE 180/58/60 172/50/60 0.40 900 35° IP20 <6 9.2 4000 >80 50000h L80B10 /SCDM3
1515152XY MICRO MD 4 55dg/840 HE 180/58/60 172/50/60 0.40 963 55° IP20 <16 9.2 4000 >80 50000h L80B10 /SCDM3
1515153XY MICRO MD 4 75dg/840 HE 180/58/60 172/50/60 0.40 1000 75° IP20 <22 9.2 4000 >80 50000h L80B10 /SCDM3
1515156XY MICRO MD 4 35dg/840 HO 180/58/60 172/50/60 0.40 1399 35° IP20 <6 16.0 4000 >80 50000h L80B10 /SCDM3
1515157XY MICRO MD 4 55dg/840 HO 180/58/60 172/50/60 0.40 1499 55° IP20 <19 16.0 4000 >80 50000h L80B10 /SCDM3
1515158XY MICRO MD 4 75dg/840 HO 180/58/60 172/50/60 0.40 1556 75° IP20 <25 16.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
