Product details

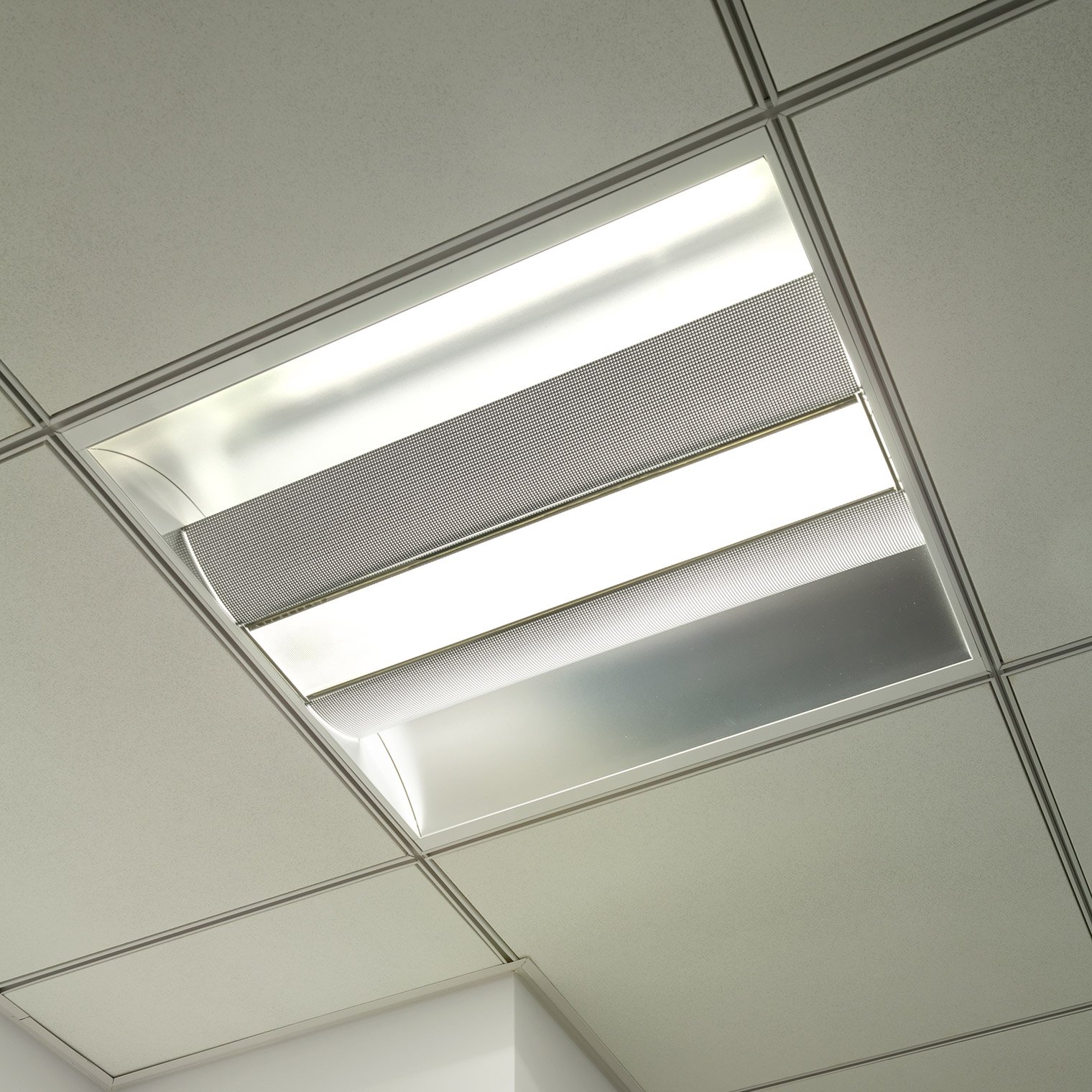

GENERAL Recessed luminaire for illumination of interiors, with both direct and indirect light component. Full visual comfort ensured with the latest optical and electrical components.

OPTICS For direct light component: highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. For indirect light component: reflector of ribbed grey aluminium sheeting. Shade of white painted, perforated steel sheet.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING This luminaire is made of a 0.6mm thick steel sheet, with a special reflective white epoxy polyester powder coating.

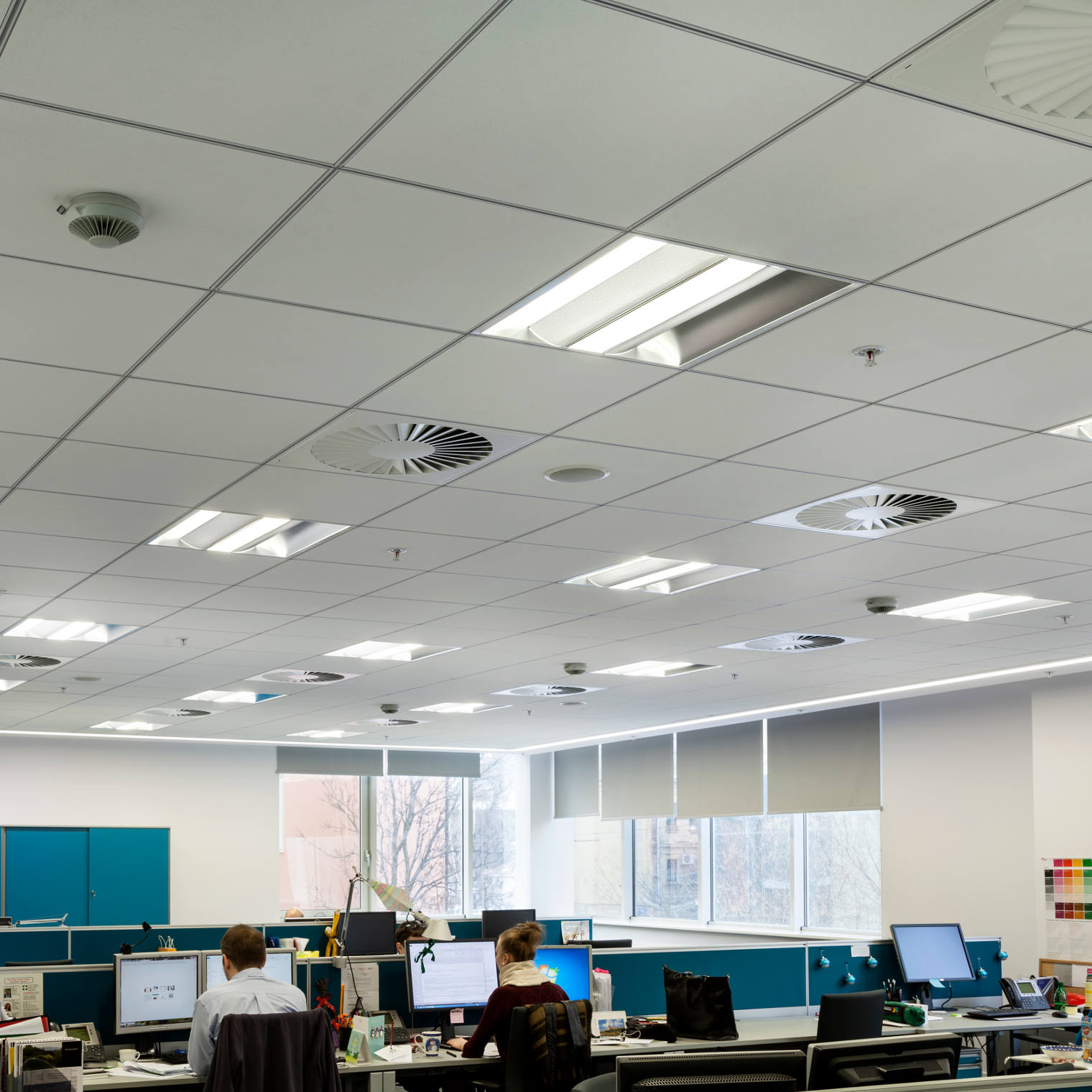

APPLICATION Applicable in monolith and modular M600 suspended ceilings, with exposed suspension system.

EQUIPMENT Supplied with protective foil for optics and through wiring connector.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure, with installation kit for modular ceilings with concealed construction and other light colour temperatures.

Technical data

Recessed ceiling
White highly reflective paint
Zapaljivost F
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
1044121XY TENERE CDP /840 595/595/80 585/585/80 5.00 3582 IP20 <19 48.0 4000 >80 70000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
