Product details

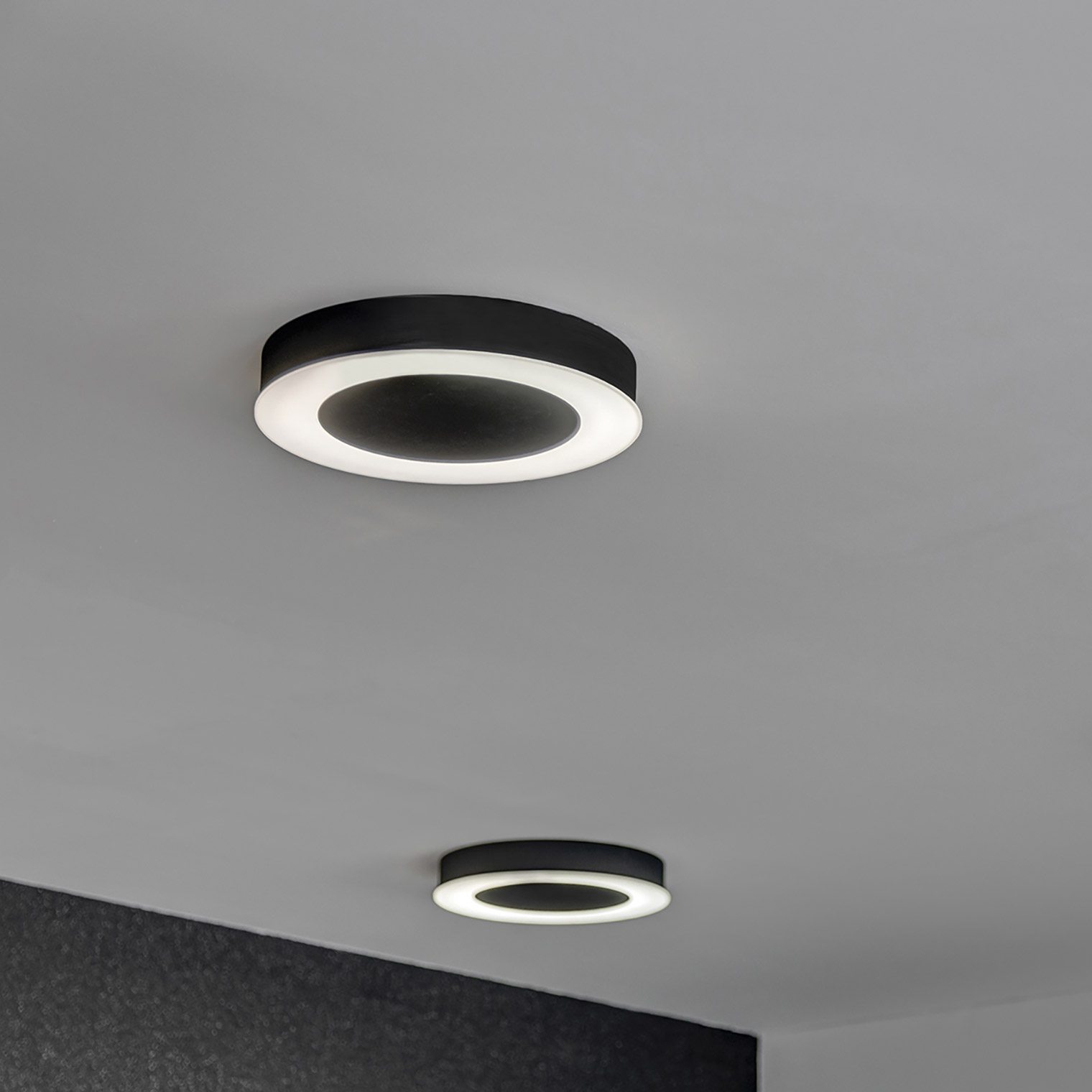

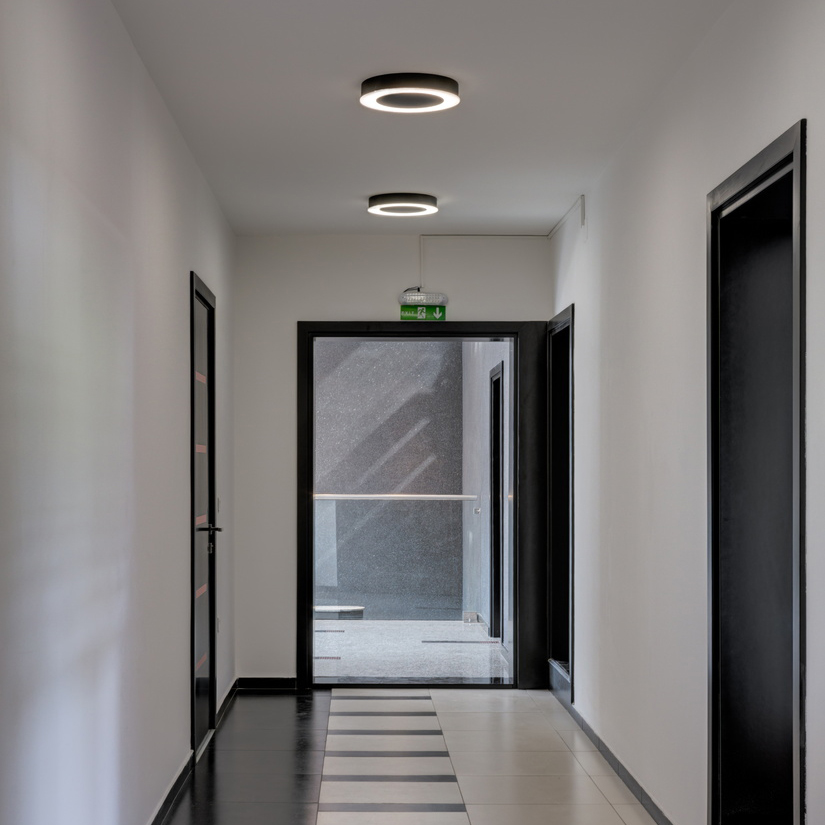

GENERAL Ring shaped surface luminaire for direct illumination of a particular aesthetic effect.
OPTICS Opal PC diffuser provides a uniform, soft light.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING Housing of aluminium sheet, with white epoxy polyester powder coating. Fine structured texture.
ADDITIONAL Other light colour temperatures available upon request.
Technical data
| Order code | Description | Ø/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 2230821XY | RING DO /C /840 | 390/55 | 3.20 | 1906 | IP40 | <22 | 18.0 | 4000 | >80 | 60000h L80B10/ SDCM 3 |
